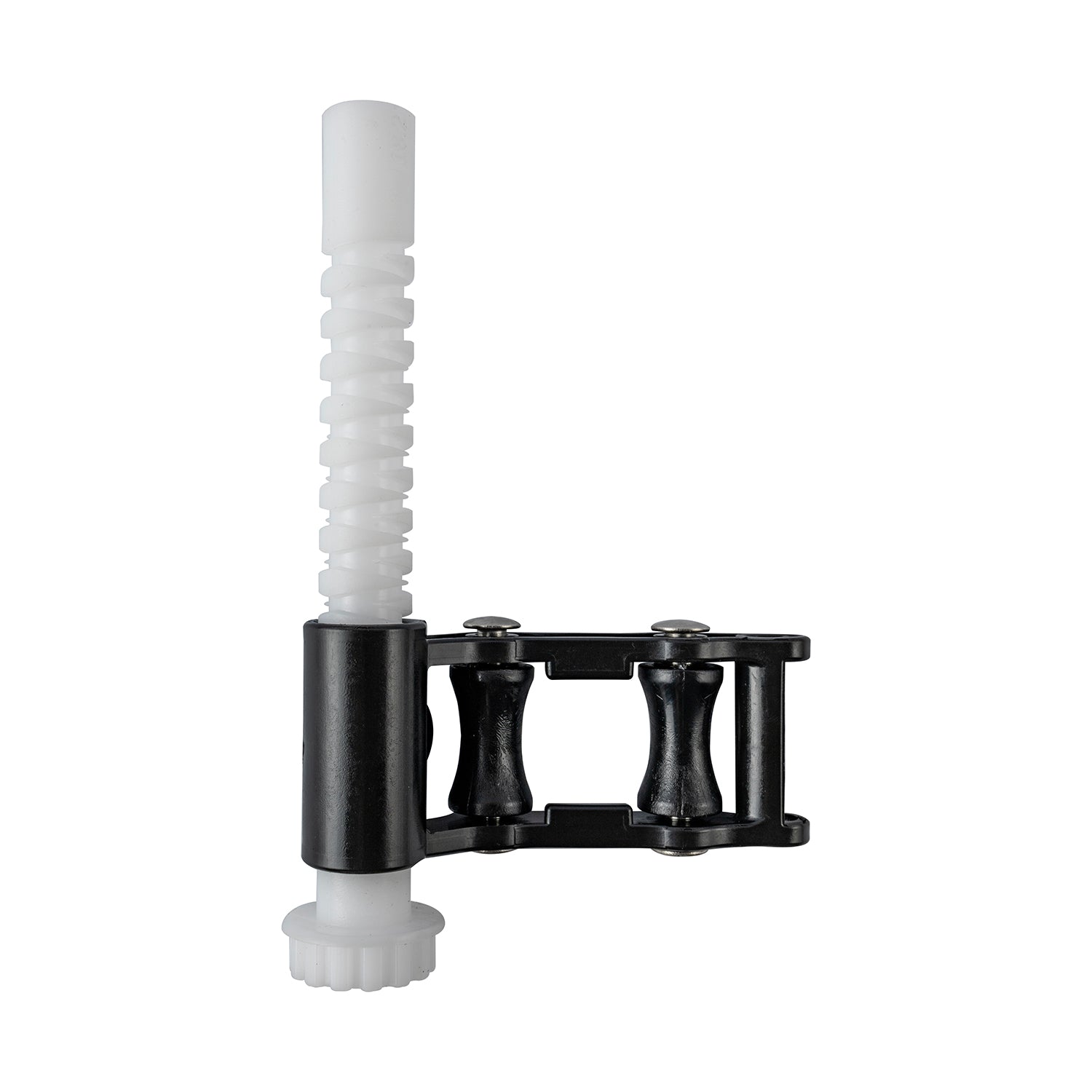

AirCraft Hose Guide Assembly For SG-HR22215 (SG-HR22215-SK01)
At a Glance: Replacement hose guide/roller assembly to keep smooth pull-out and tangle-free rewind on the SG-HR22215 auto retract hose reel
If your hose reel starts feeding roughly, snagging, or rewinding with that annoying “rub-and-jump” motion, the guide assembly is often the first place to look. The AirCraft SG-HR22215-SK01 Hose Guide Assembly is a replacement guide-and-roller unit for the SG-HR22215 auto retract air hose reel, designed to control the hose path during extension and retraction. It helps the hose track correctly, reduces scuffing, and supports the auto-guide function that keeps the hose from tangling and wearing out prematurely.
A worn or damaged guide can chew up a hose fast. Replacing the guide assembly helps keep the hose centred, reduces friction, and improves the overall feel and reliability of your retractable reel—especially in busy workshop environments.
Features
- Guide Roller Assembly Supports smooth hose movement during pull-out and rewind.
- SG-HR22215 Compatibility Designed as a replacement part for the SG-HR22215 auto retract hose reel.
- Reduces Friction and Scuffing Helps prevent hose abrasion at the reel outlet point.
- Improves Auto-Guide Function Helps the hose track correctly to reduce tangles and misfeeds.
Benefits
- Smoother Operation: Improves hose feed and retraction, reducing snagging and rough pull-out.
- Longer Hose Life: Less rubbing and abrasion means less chance of weak spots and leaks.
- Safer, Tidier Workspace: Reliable retraction keeps hoses off the floor and reduces trip hazards.
- Cost-Effective Repair: Replace the wear part instead of replacing the entire hose reel.
Extra Information
- If the hose shows flat spots, deep scuffs, or cracking near the outlet, replace the guide assembly and inspect the hose for damage.
- Ensure the reel is mounted so the hose pulls out as straight as possible—sharp angles increase guide wear.
- Check fasteners and alignment after fitting; misalignment can cause uneven roller wear and poor tracking.
- Ideal spare to keep on hand in workshops where hose reels see daily use.
Pro Tip
- After installing the new guide assembly, extend the hose fully and retract it slowly the first time—this helps confirm smooth tracking and prevents sudden snap-back if the hose was previously snagging.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG-HR22215-SK01 |
| Product Type | Hose Guide Assembly |
| Compatible Model | SG-HR22215 Auto Retract Air Hose Reel |
| Function | Guides hose for smooth feed and rewind |
| Assembly Type | Guide with rollers (outlet guide) |
Safety
- Shut off the air supply and depressurise the hose before removing or fitting any parts.
- Keep hands clear of the reel mechanism and allow the hose to retract in a controlled manner.
- Ensure the reel is securely mounted before testing pull-out and retraction.
- Inspect the hose for damage after any feed/retract issue—do not use a damaged hose under pressure.
- Wear eye protection when working on pressurised systems and during testing.
