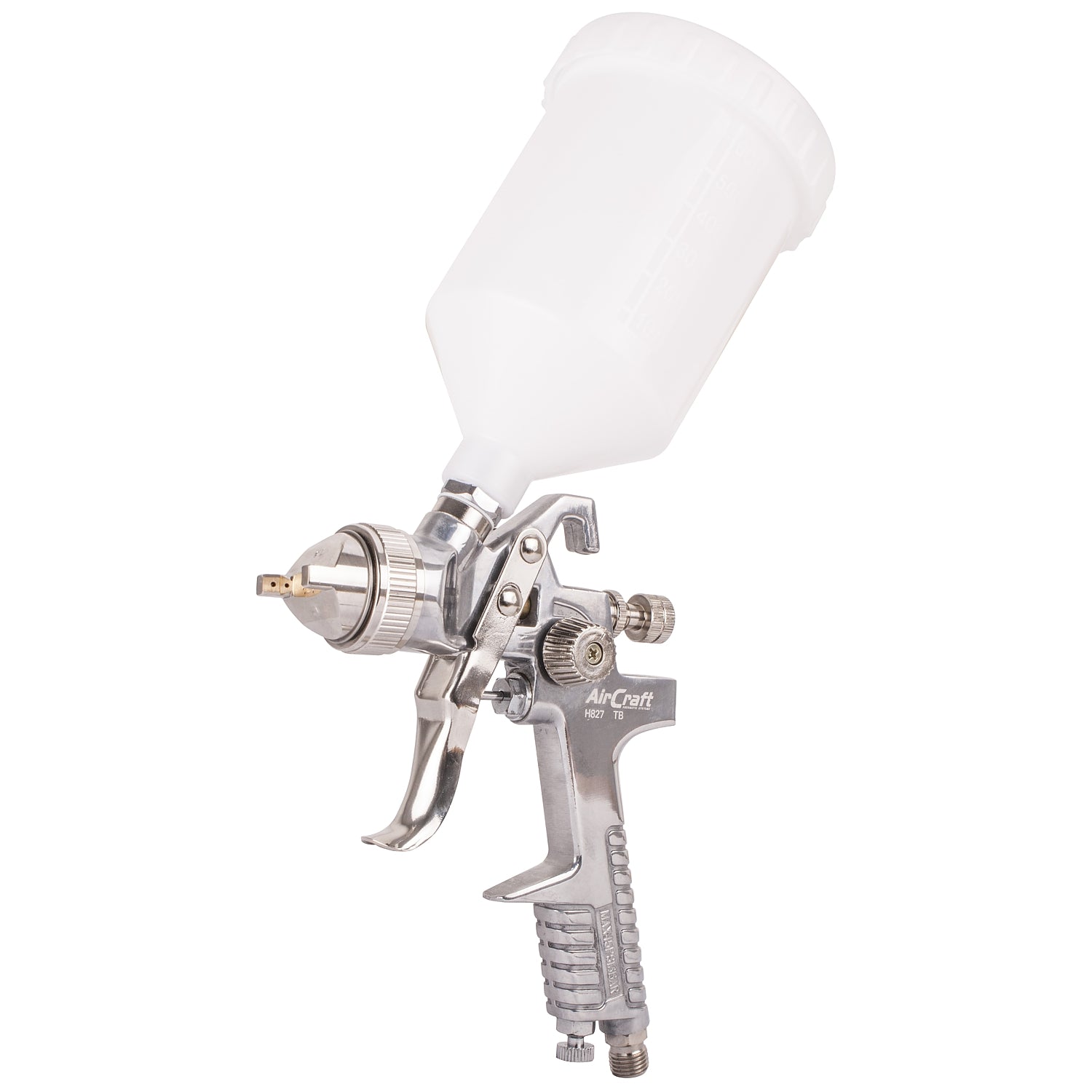

Spray Gun HVLP
Nozzle: 1.4mm
Cup Size: 600ml
The Aircraft Spray Gun is an addition in our HVLP spray gun line-up. HVLP stands for High Volume Low Pressure. This type of spray gun is designed to minimize overspray and improve transfer efficiency, making it a popular choice for various applications, including automotive painting, woodworking, and general finishing.
Application:
- Automotive paints
- Workshop
- Manufacturing
- DIY
Features
- HVLP spray technology Helps reduce overspray while improving transfer efficiency.
- 1.4mm nozzle/needle set Versatile size for many common spray finishing applications.
- 600cc gravity feed plastic cup Lightweight cup with practical capacity for longer jobs.
- Adjustable fan and fluid controls Fine-tune spray pattern and material flow for better results.
Benefits
- Cleaner, more efficient application: HVLP helps put more coating on the job and less into the air.
- More consistent finishes: Adjustable controls make it easier to dial in an even fan and smooth coverage.
Extra Information
- Strain coatings before spraying and mix to the correct viscosity—this improves atomisation and reduces blockages.
- Keep the gun parallel to the surface and overlap passes for an even finish.
- Clean the gun thoroughly after use to prevent dried material in the nozzle and air cap.
Pro Tip
- Do a quick pattern test on masking paper: set the fan wide, then adjust fluid until you get an even “cigar-shaped” pattern with no heavy centre band.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG-H827 |
| Product Type | HVLP Spray Gun |
| Feed Type | Gravity Feed |
| Cup Capacity | 600cc |
| Cup Material | Plastic |
| Nozzle/Needle Size | 1.4mm |
| Air Inlet | 1/4" (typical spray gun connection – confirm fitment) |
| Typical Applications | Automotive, woodworking, general spray finishing |
| Gun Dimensions | 140(L) x 38(W) x 185(H)mm |
| Material | Body: Aluminium Brass plated: Air cap Nickel plated steel: Trigger and Fittings Stainless steel: Needle and Nozzle Rubber: O-rings Spring loaded: Spray adjusting needle Nylon: Cup |
| Finish | Polished |
| Cup capacity | 600ml |
| Max Air Pressure | 10 bars (145psi) |
| Air inlet | 1/4" BSP |
| Working pressure | 43-58 psi (3-5 Bar) |
| Air consumption rate | 6.0 -11cfm (170-300 l/min) |
| Nozzle/Needle | Ø1.3/1.4/1.7 & 2.0mm |
| Content | 1 x Spray Gun 1 x Cup 1 x Multi-purpose wrench 1 x Filter |
Safety
- Wear eye protection and suitable respiratory protection when spraying paints, coatings and solvents.
- Spray only in a well-ventilated area and keep overspray away from people, pets, and sensitive surfaces.
- Keep flammable coatings and vapours away from sparks, flames and ignition sources.
- Depressurise the air line before servicing the spray gun or removing the nozzle.
- Clean using appropriate solvents and dispose of waste responsibly.
