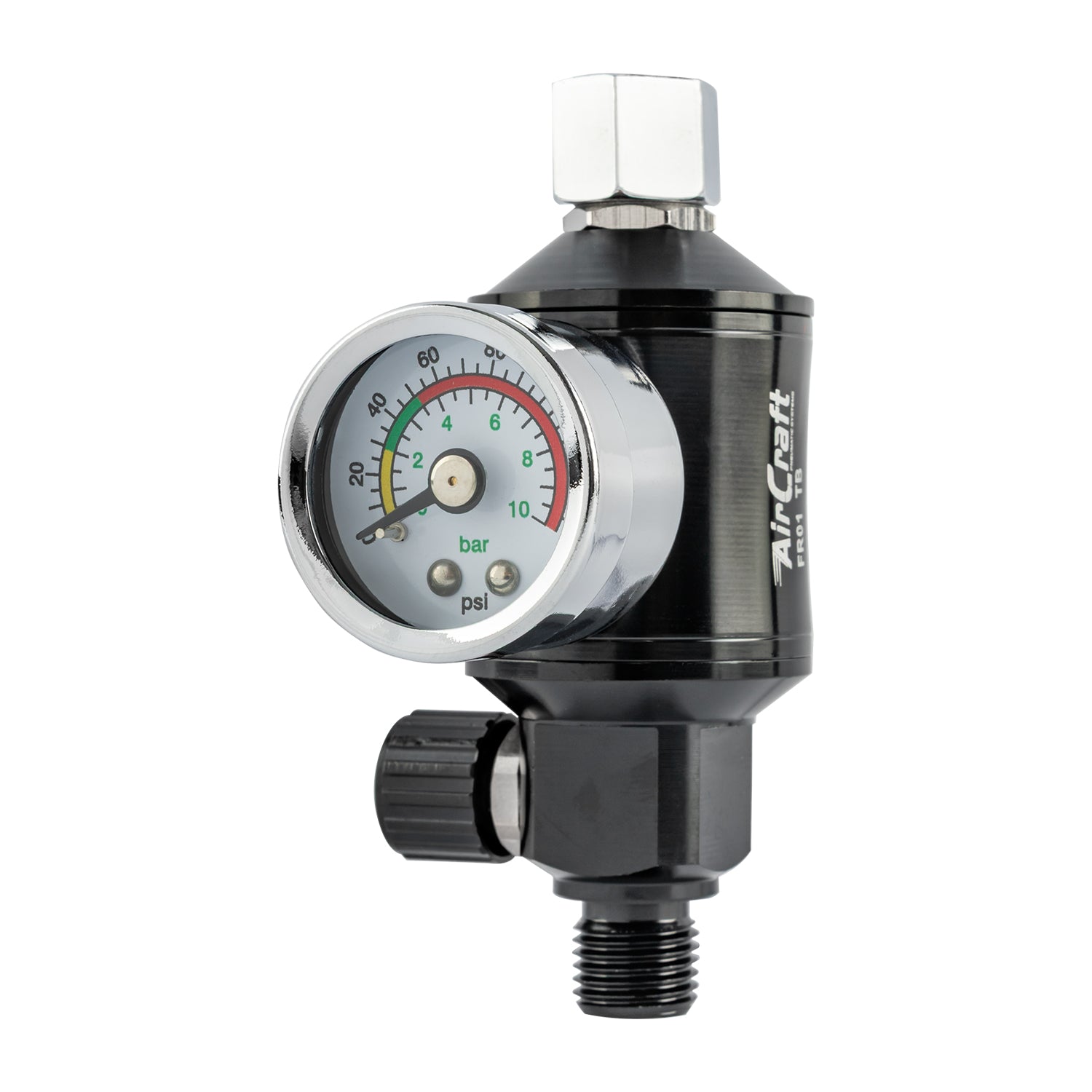

FILTER REGULATOR 2-IN-1 INLINE 1/4”THREAD
Features:
- 2 in1 design has a combination of an air filter and pressure regulator.
- Filter is used to separate moisture and other contaminants from the air.
- Scale unit: bar and PSI
- The function of a regulator is to either increase or decrease the desired air pressure.
- The regulator can be fit into air line with 1/4" threaded ports.
- Compact size.
- The regulator is fitted with a gauge to precisely set the required pressure of the spray gun.
| Description | Specification |
| Packaging Type | Colour Cardboard Box |
| Material | Aluminium alloy |
| Air inlet and outlet thread | 1/4" BSP |
| Max inline pressure | 150PSI (10.34 Bar) |
| Working pressure range | 1 - 100 PSI (0.07 - 6.9 Bar) |
| Adjustment pressure range | 1 - 100 PSI (0.07 - 6.9 Bar) |
| Operating temperature | 0 - 60°C |
| Particulate filter | * microns |
| Variants | SG FR180-2, SG FR180-1 |
| Recommended tool/accessories | 1/4" threaded pneumatic tools |
| Warranty | Consumable products excluded from warranty. |
| Content | 1 x Filter regulator 2-in-1 inline 1/4" thread |
