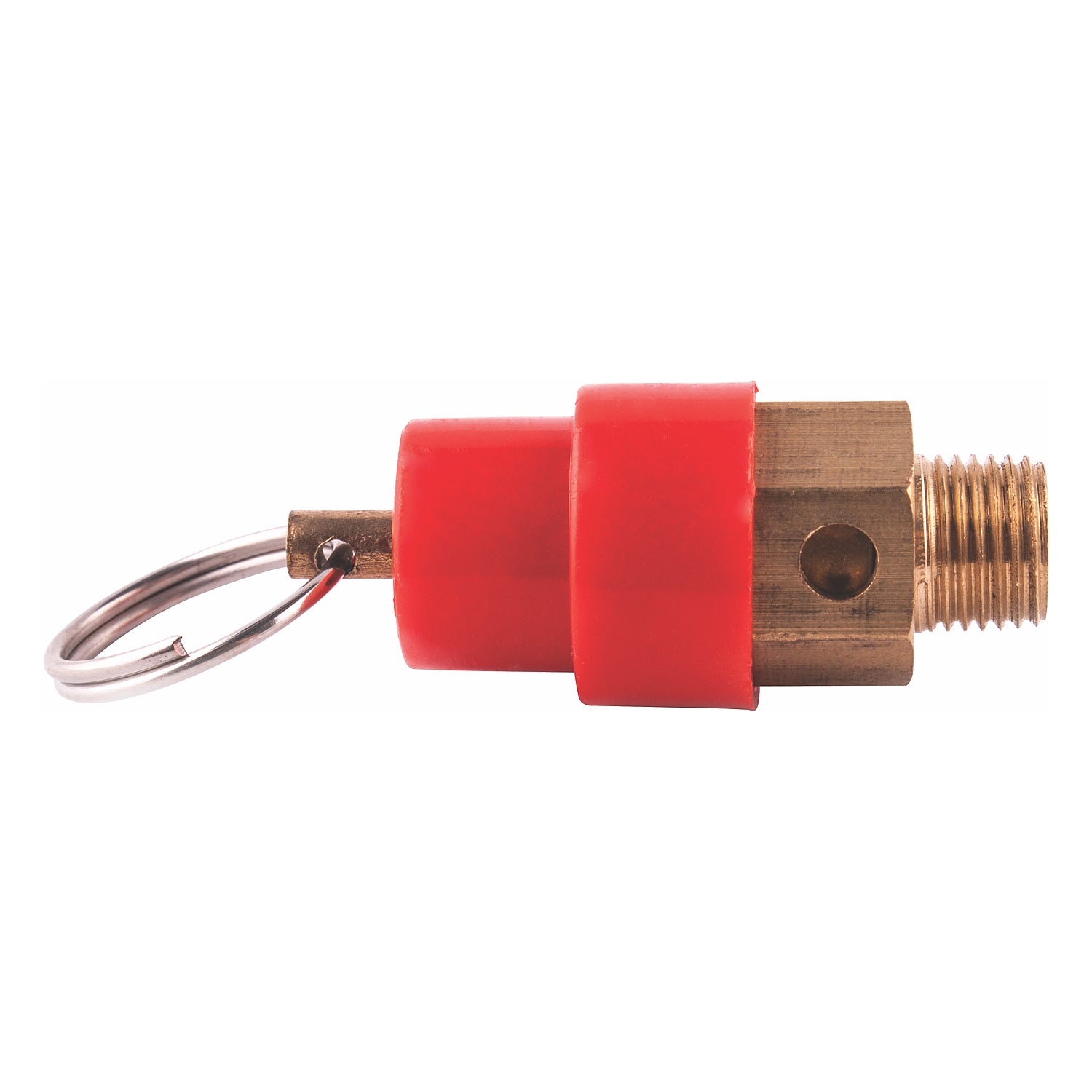

SAFETY VALVE
Features
- Automatic pressure relief Designed to vent excess pressure if the system exceeds the safe limit.
- Pull-ring test feature Allows manual testing/relief where appropriate for the application.
- Threaded male connection Screws into compatible compressor tank/manifold ports.
- Durable metal body Built for compressor environments and consistent performance.
Benefits
- Improves safety: Helps protect the tank and system from dangerous overpressure.
- Protects equipment: Reduces risk of damage to fittings, lines, and components during pressure faults.
- Restores compliance and peace of mind: Replacing a leaking/sticking valve helps keep the system operating correctly.
- Quick maintenance fix: Easy to replace when matched by part number and thread type.
Extra Information
- Confirm rating and compatibility: Ensure SG-COMP06-48 matches your compressor model and required relief pressure setting.
- Check thread size: Verify the threaded connection against your existing valve before installation.
- Do not modify: Never plug, clamp, or adjust a safety valve unless the design explicitly allows it.
- Replace if leaking: If a safety valve vents or leaks continuously, it may be worn or contaminated and should be replaced.
Pro Tip
- When replacing a safety valve, also inspect the pressure switch settings and gauge accuracy. A misreading gauge or faulty pressure switch can make the safety valve “look bad” when it’s actually doing its job.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG-COMP06-48 |
| Product Type | Safety Valve / Pressure Relief Valve |
| Function | Automatic overpressure relief |
| Activation | Spring-loaded relief mechanism |
| Test Feature | Pull-ring manual test/release (as pictured) |
| Connection Type | Threaded male connection (confirm size and pitch) |
| Application | Compatible AirCraft compressor tank/manifold (model dependent) |
Safety
- Isolate power and fully depressurise the system before removing or installing a safety valve.
- Wear eye protection and keep your face/hands away from fittings when releasing pressure.
- Do not install a valve with an incorrect pressure rating—use the correct specification for the compressor system.
- Do not paint, block, clamp, or tamper with the valve—this can create a serious hazard.
- After installation, pressurise gradually and check for leaks at the thread and confirm normal operation.
