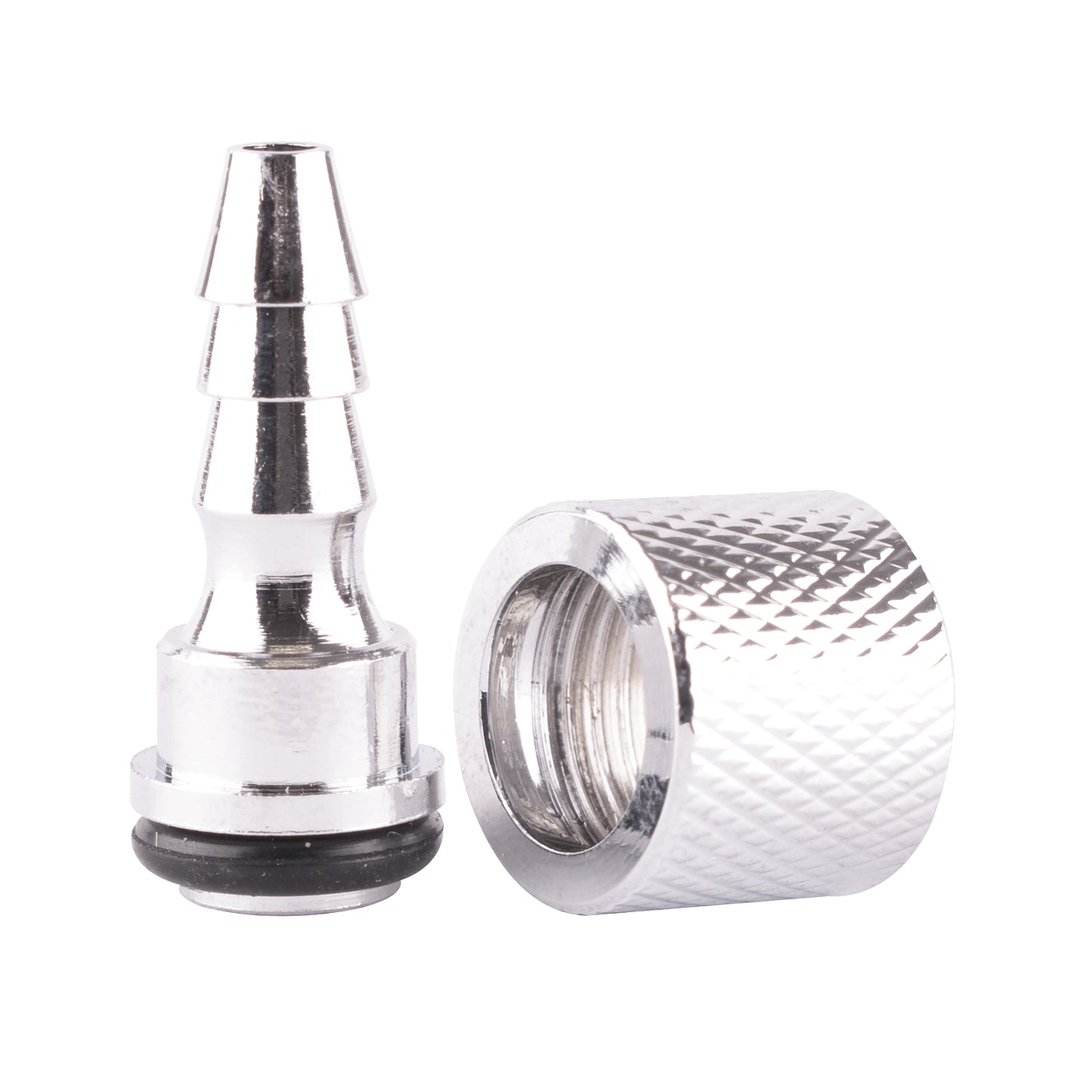

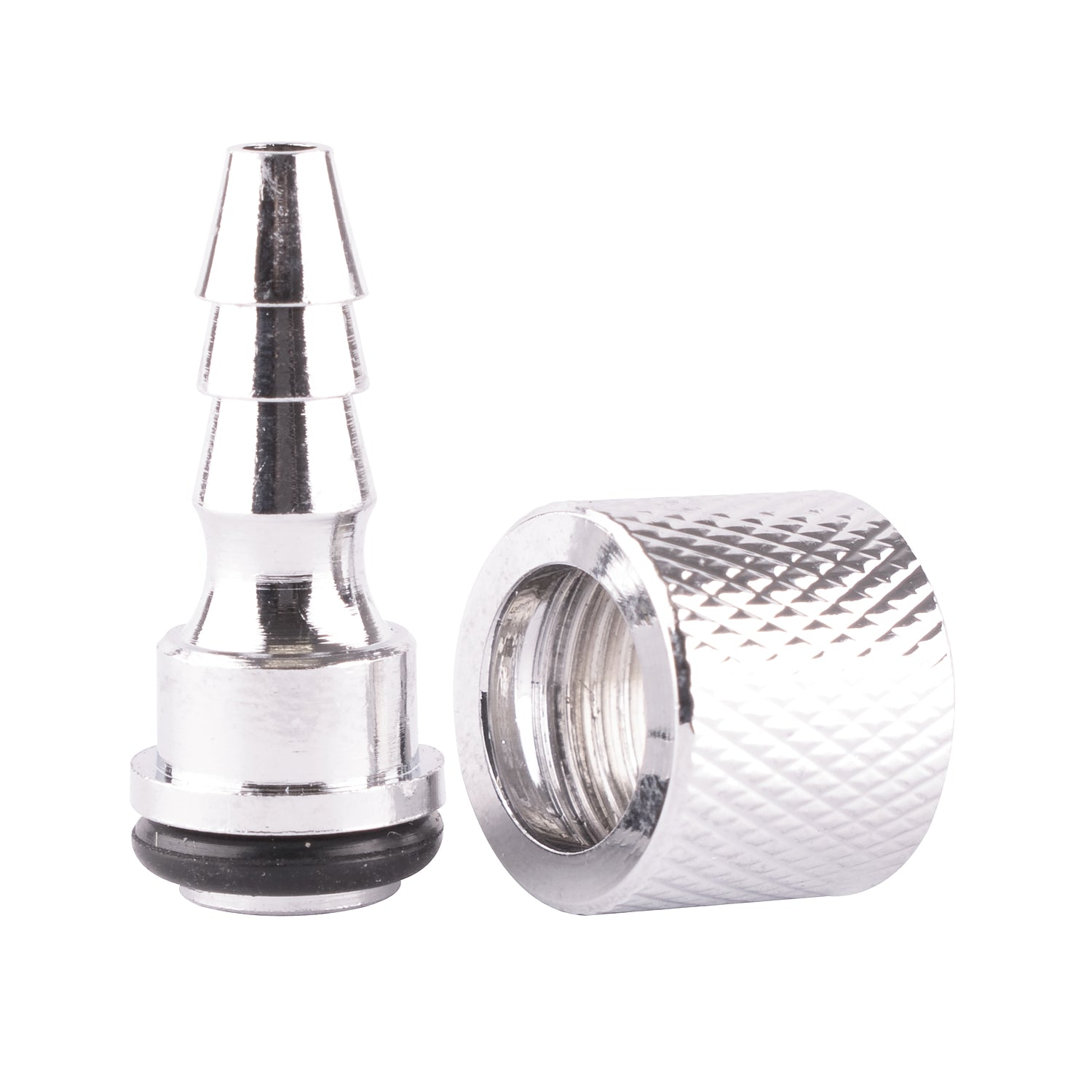

Airbrush hose tail for propellant
The connector is fitted on an airbrush to be connected to airbrush propellant.
Many airbrushes already have this connector included in the scope of delivery.
Can be connected to M5 and 1/8 BSP thread.
Features
- 1/8" BSP female thread Designed to suit common airbrush and pneumatic fittings using 1/8" BSP.
- 5mm hose tail For connecting to compatible 5mm internal diameter air hose.
- Compact replacement part Ideal for repairs, hose rebuilds, and custom air line setups.
Benefits
- Restores reliable connections: Replace damaged hose ends and reduce leaks that cause pressure drop and inconsistent spraying.
- Cleaner, safer hose setups: Proper fittings help prevent hoses popping off under pressure when correctly clamped.
Extra Information
- Use a suitable hose clamp on the 5mm hose tail for a more secure connection (especially on higher-pressure setups).
- Confirm your hose inner diameter is 5mm for the best grip and seal.
- 1/8" BSP is not the same as 1/8" NPT—always match thread standards to prevent leaks or cross-threading.
Pro Tip
- Warm the end of the hose slightly (hot water works well) before pushing it onto the barb—easier fitment and a tighter seal once cooled.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG-BD51-52 |
| Product Type | Airbrush / Pneumatic Fitting |
| Thread Type | 1/8" BSP Female |
| Hose Tail Size | 5mm |
| Application | Connects 5mm hose to 1/8" BSP threaded fitting |
Safety
- Wear eye protection when working with compressed air fittings and clamps.
- Depressurise the air line before removing or installing hose fittings.
- Use a proper clamp and inspect the hose for cracks or hardening before reassembly.
- Do not overtighten threaded connections—small fittings can strip or crack if forced.
