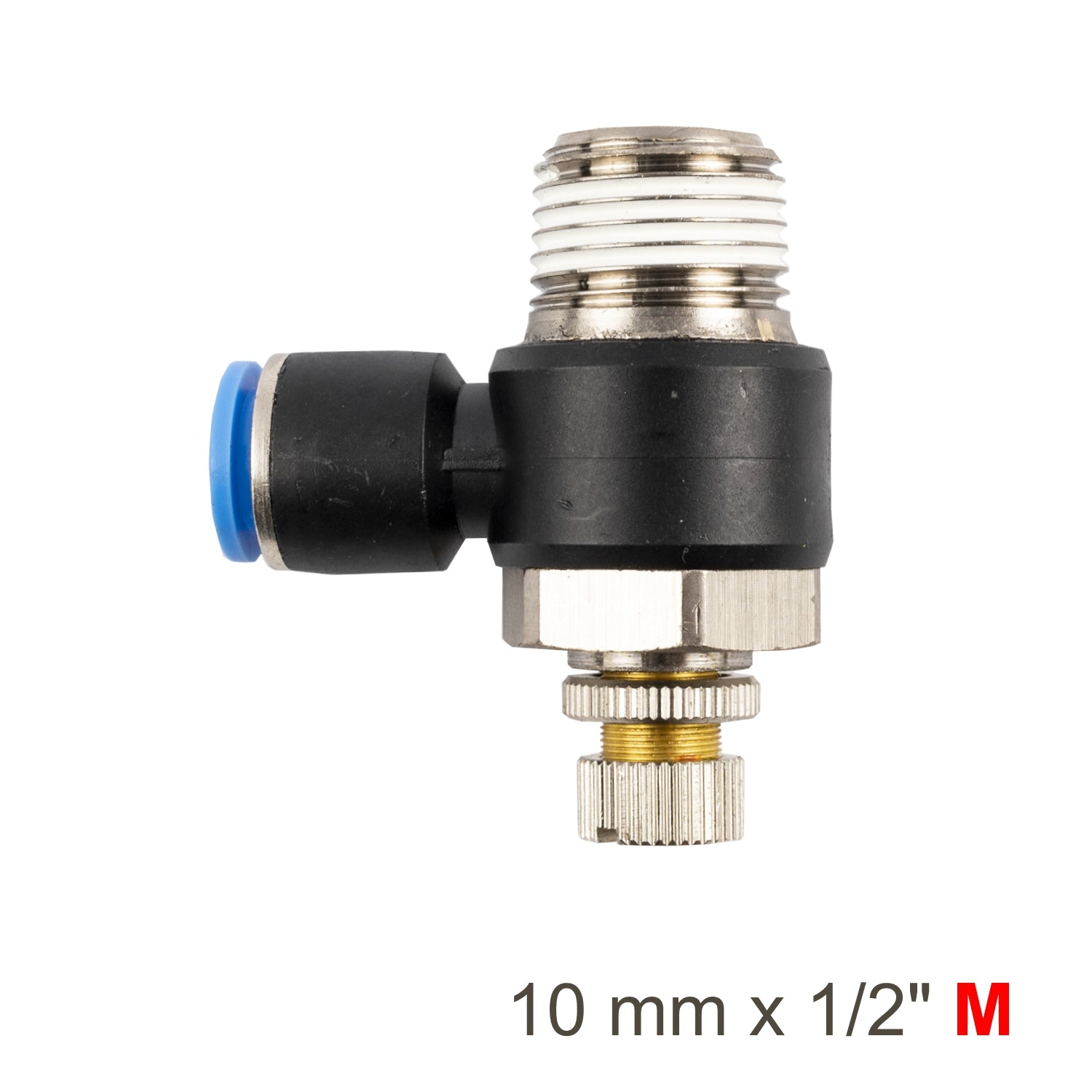

AirCraft Flow Control Swivel Elbow PU 10mm x 1/2" M (SG ASC10-04)
At a Glance: Adjustable flow control elbow: 10 mm push-in tube to 1/2" male thread
The AirCraft SG ASC10-04 Flow Control Swivel Elbow PU 10mm x 1/2" M is a compact, point-of-use fitting that combines neat 90° tube routing with built-in airflow adjustment. It features a 10 mm push-to-connect tube port, a 1/2" male threaded connection, and an adjustable flow control screw that lets you fine-tune airflow right at the connection point. Ideal for pneumatic systems where you want smoother actuator movement, controlled airflow to equipment, and a clean installation without adding separate inline valves.
The SG ASC10-04 lets you dial in airflow precisely, helping reduce harsh movement and improve control. The swivel elbow body makes alignment easier during installation, keeping tube runs tidy and reducing hose strain for a cleaner pneumatic layout.
Features
- Adjustable flow control screw Enables fine airflow tuning for smoother pneumatic response.
- Swivel elbow design Helps align tubing neatly and reduces stress on the hose run.
- Push-to-connect tube port Fast, secure connection for 10 mm tubing with easy release.
- 1/2" male threaded connection Fits compatible pneumatic ports and components requiring a 1/2" male fitting.
Benefits
- Smoother operation: Helps reduce jerky movement by restricting airflow where needed.
- Cleaner installations: Combines routing and control in one fitting to reduce clutter and simplify layouts.
Extra Information
- Designed for 10 mm tube outside diameter (OD). Use clean, square-cut tubing for best sealing.
- Adjust flow gradually—small turns can noticeably change speed, response and air delivery.
Pro Tip
- Do final flow adjustment at normal operating pressure, then cycle the equipment several times to confirm smooth, repeatable movement.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG ASC10-04 |
| Product Type | Pneumatic Flow Control Fitting |
| Fitting Style | Swivel Elbow With Flow Control |
| Tube Size | 10 mm (OD) |
| Thread Type | 1/2" Male |
| Connection Type | Push-To-Connect / Threaded |
Safety
- Wear eye, ear and dust protection where required in workshop environments.
- Depressurise the air line before installing, removing, or adjusting pneumatic fittings.
- Avoid overtightening threaded connections; use the correct sealing method for air fittings (where applicable) and protect threads from damage.
- After installation, pressurise slowly and check for air leaks before placing the system into service.
