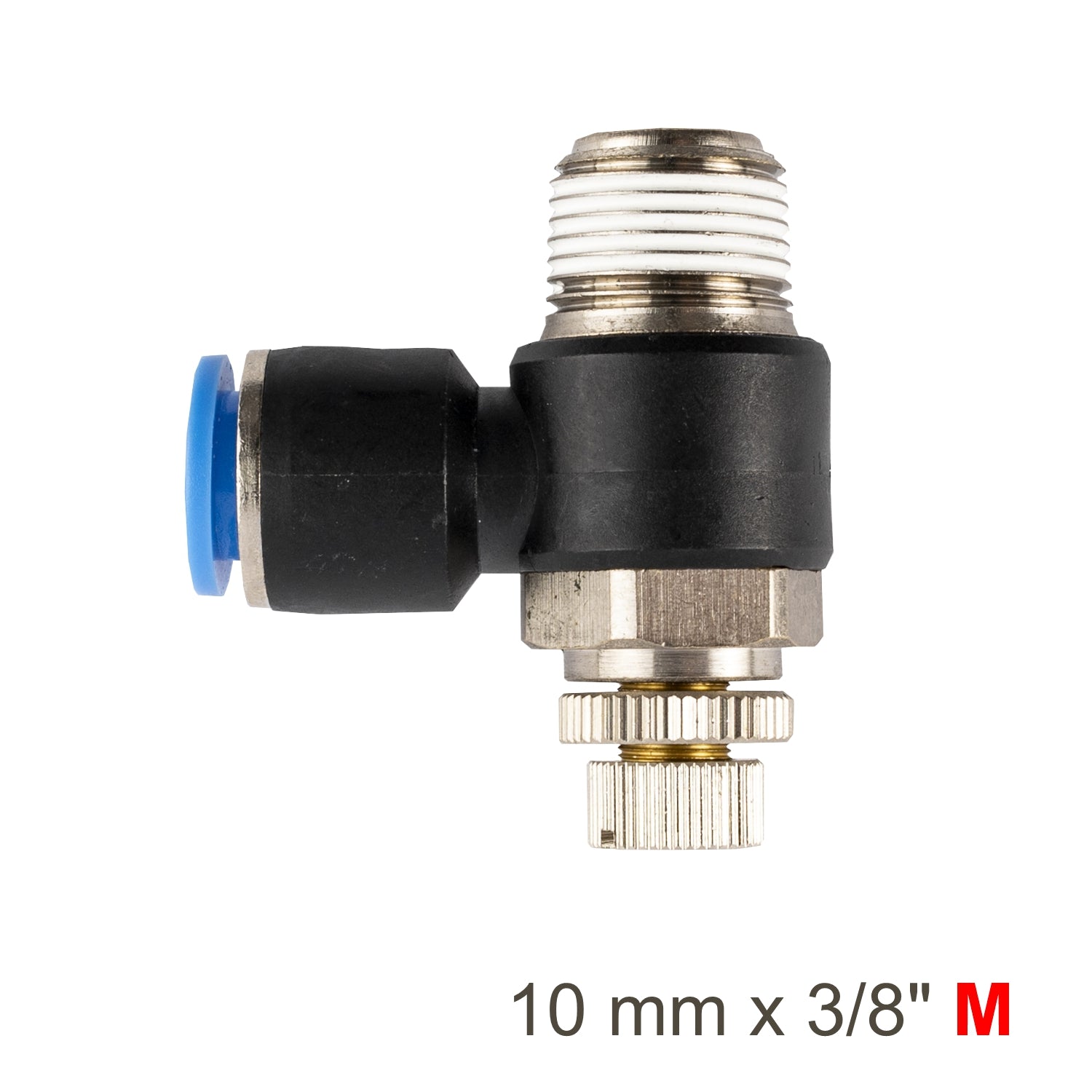

AirCraft Flow Control Swivel Elbow PU 10mm x 3/8" M (SG ASC10-03)
At a Glance: Adjustable flow control elbow: 10 mm push-in tube to 3/8" male thread
The AirCraft SG ASC10-03 Flow Control Swivel Elbow PU 10mm x 3/8" M is a compact, point-of-use fitting that combines neat 90° tube routing with built-in airflow adjustment. It features a 10 mm push-to-connect tube port, a 3/8" male threaded connection, and an adjustable flow control screw that lets you fine-tune airflow right at the connection point. Ideal for pneumatic systems where you want smoother actuator movement, controlled airflow to equipment, and a clean installation without adding separate inline valves.
The SG ASC10-03 allows precise airflow tuning to reduce harsh movement and improve control. The swivel elbow design makes alignment easy during installation, keeping tube runs tidy and reducing hose strain for a cleaner pneumatic layout.
Features
- Adjustable flow control screw Enables fine airflow tuning for smoother pneumatic response.
- Swivel elbow body Helps align tubing neatly and reduces stress on the hose run.
- Push-to-connect tube port Fast, secure connection for 10 mm tubing with easy release.
- 3/8" male threaded connection Fits compatible pneumatic ports and components requiring a 3/8" male fitting.
Benefits
- Smoother operation: Helps reduce jerky movement by restricting airflow where needed.
- Cleaner installations: Combines routing and control in one fitting to reduce clutter and simplify layouts.
Extra Information
- Designed for 10 mm tube outside diameter (OD). Use clean, square-cut tubing for best sealing.
- Adjust flow gradually—small turns can noticeably change speed, response and air delivery.
Pro Tip
- Dial in the flow control at normal operating pressure, then cycle the equipment a few times to confirm smooth, repeatable movement.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG ASC10-03 |
| Product Type | Pneumatic Flow Control Fitting |
| Fitting Style | Swivel Elbow With Flow Control |
| Tube Size | 10 mm (OD) |
| Thread Type | 3/8" Male |
| Connection Type | Push-To-Connect / Threaded |
Safety
- Wear eye, ear and dust protection where required in workshop environments.
- Depressurise the air line before installing, removing, or adjusting pneumatic fittings.
- Avoid overtightening threaded connections; use the correct sealing method for air fittings (where applicable) and protect threads from damage.
- After installation, pressurise slowly and check for air leaks before placing the system into service.
