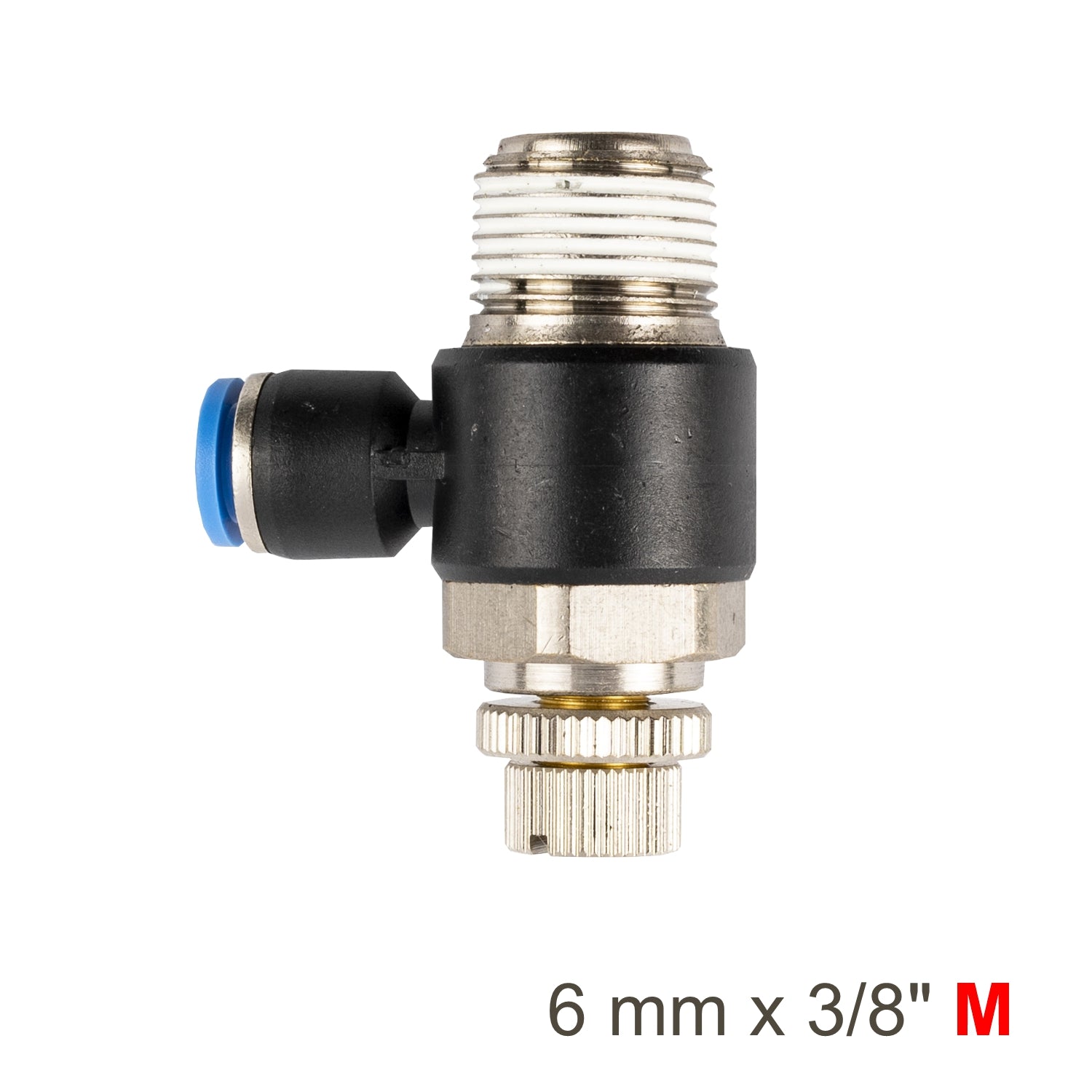

AirCraft Flow Control Swivel Elbow PU 6mm x 3/8" M (SG ASC06-03)
At a Glance: Adjustable flow control elbow: 6 mm push-in tube to 3/8" male thread
The AirCraft SG ASC06-03 Flow Control Swivel Elbow PU 6mm x 3/8" M is a compact, practical way to route a 6 mm pneumatic line at 90° while also controlling airflow at the point of connection. With a 6 mm push-to-connect tube port, a 3/8" male threaded connection, and an adjustable flow control screw, it’s ideal for pneumatic systems where you want smoother actuator movement, controlled air supply to equipment, and a neat installation without the extra bulk of an inline valve.
The SG ASC06-03 lets you dial in airflow right where it matters, helping you tune speed and response. The swivel elbow body makes alignment easier during installation, keeping tubing runs tidy and reducing hose strain.
Features
- Adjustable flow control screw Allows precise airflow tuning to suit your pneumatic application.
- Swivel elbow design Helps align tubing neatly and reduces stress on the hose run.
- Push-to-connect tube port Fast, secure connection for 6 mm tubing with easy release.
- 3/8" male threaded connection Fits compatible pneumatic ports and components requiring a 3/8" male fitting.
Benefits
- Smoother operation: Helps reduce harsh movement by restricting airflow where needed.
- Cleaner, more compact installations: Combines routing and control in one fitting to reduce clutter.
Extra Information
- Designed for 6 mm tube outside diameter (OD). Use clean, square-cut tubing for best sealing.
- Adjust flow gradually—small turns can noticeably change speed, response and air delivery.
Pro Tip
- Make final adjustments with the system running at normal operating pressure, then cycle the equipment a few times to confirm smooth, repeatable performance.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG ASC06-03 |
| Product Type | Pneumatic Flow Control Fitting |
| Fitting Style | Swivel Elbow With Flow Control |
| Tube Size | 6 mm (OD) |
| Thread Type | 3/8" Male |
| Connection Type | Push-To-Connect / Threaded |
Safety
- Wear eye, ear and dust protection where required in workshop environments.
- Depressurise the air line before installing, removing, or adjusting pneumatic fittings.
- Avoid overtightening threaded connections; use the correct sealing method for air fittings (where applicable) and protect threads from damage.
- After installation, pressurise slowly and check for air leaks before placing the system into service.
