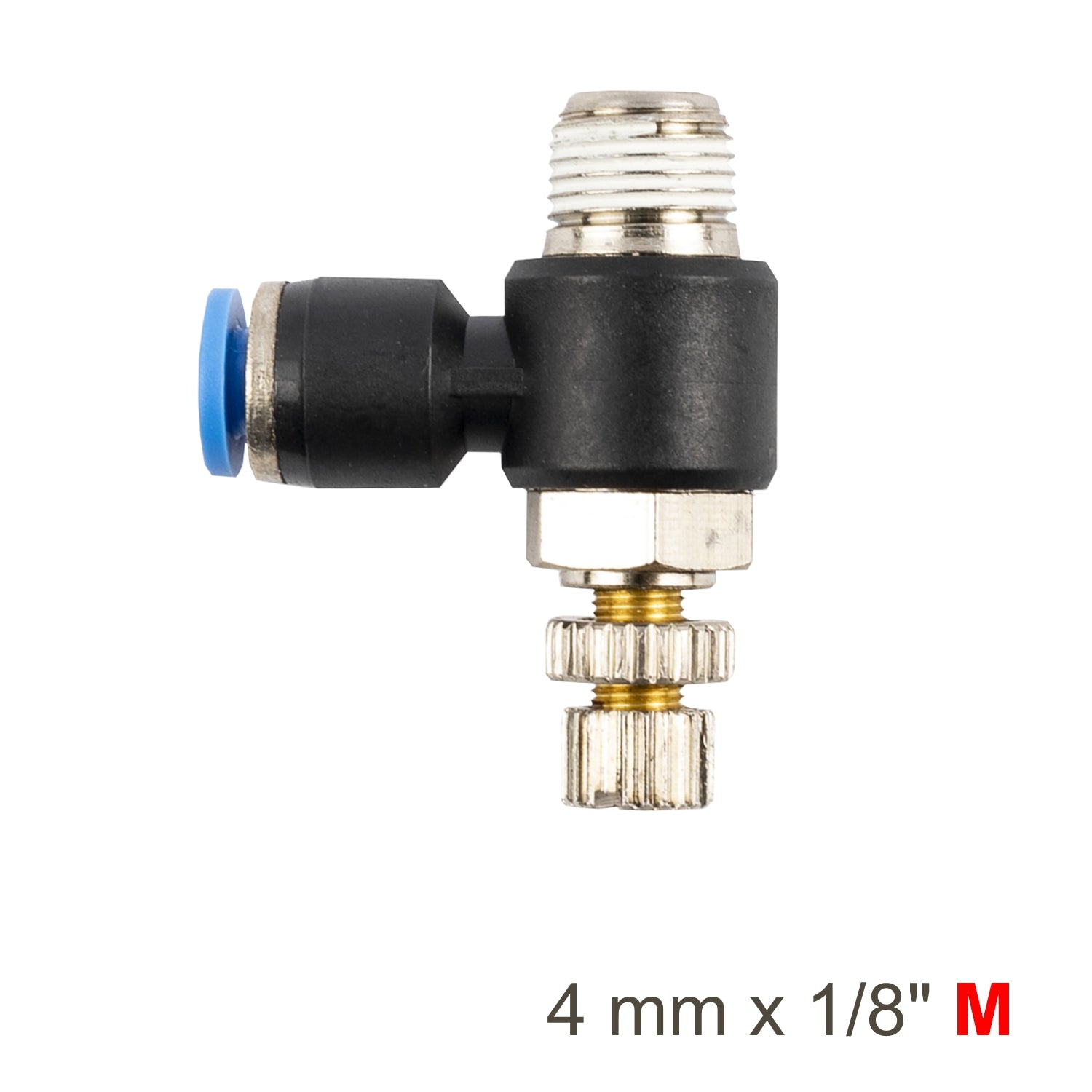

AirCraft Flow Control Swivel Elbow PU 4mm x 1/8" M (SG ASC04-01)
At a Glance: Adjustable flow control elbow: 4 mm push-in tube to 1/8" male thread
The AirCraft SG ASC04-01 Flow Control Swivel Elbow PU 4mm x 1/8" M is a smart little fitting for pneumatic systems where space is tight and control matters. It combines a push-to-connect 4 mm tube port with a 1/8" male threaded connection, plus an adjustable flow control screw to fine-tune airflow. Use it to regulate air to small actuators, tools, or accessories, reduce harsh movement, and keep your air-line routing neat with a compact 90° elbow design.
Instead of adding a separate valve inline, the SG ASC04-01 gives you airflow adjustment right at the connection point. The swivel elbow helps with alignment during installation, making it easier to route tubing cleanly without strain or awkward bends.
Features
- Adjustable flow control screw Lets you fine-tune airflow to suit your pneumatic application.
- Swivel elbow design Helps align tubing neatly and reduces stress on the hose run.
- Push-to-connect tube port Quick 4 mm tube installation with a secure grip and easy release.
- 1/8" male threaded connection Fits compatible ports on pneumatic equipment and accessories.
Benefits
- Smoother operation: Helps reduce sudden movement by restricting airflow where needed.
- Tidier installations: Elbow routing and swivel alignment make compact air layouts cleaner and easier.
Extra Information
- Designed for 4 mm tube outside diameter (OD). Use clean, square-cut tubing for best sealing.
- Adjust flow gradually—small turns make a noticeable difference in pneumatic response.
Pro Tip
- Set the flow control with the system running at normal operating pressure, then lock in your “sweet spot” for smooth movement and consistent performance.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG ASC04-01 |
| Product Type | Pneumatic Flow Control Fitting |
| Fitting Style | Swivel Elbow With Flow Control |
| Tube Size | 4 mm (OD) |
| Thread Type | 1/8" Male |
| Connection Type | Push-To-Connect / Threaded |
Safety
- Wear eye, ear and dust protection where required in workshop environments.
- Depressurise the air line before installing, removing, or adjusting pneumatic fittings.
- Do not overtighten threaded connections; use appropriate sealing method for air fittings (where applicable) and avoid damaging threads.
- After installation, pressurise slowly and check for air leaks before putting the system into service.
