INSERT MANIFOLD SIDE 4-PORT PU 10MM
INSERT MANIFOLD SIDE 4-PORT PU 10MM
Couldn't load pickup availability
Share

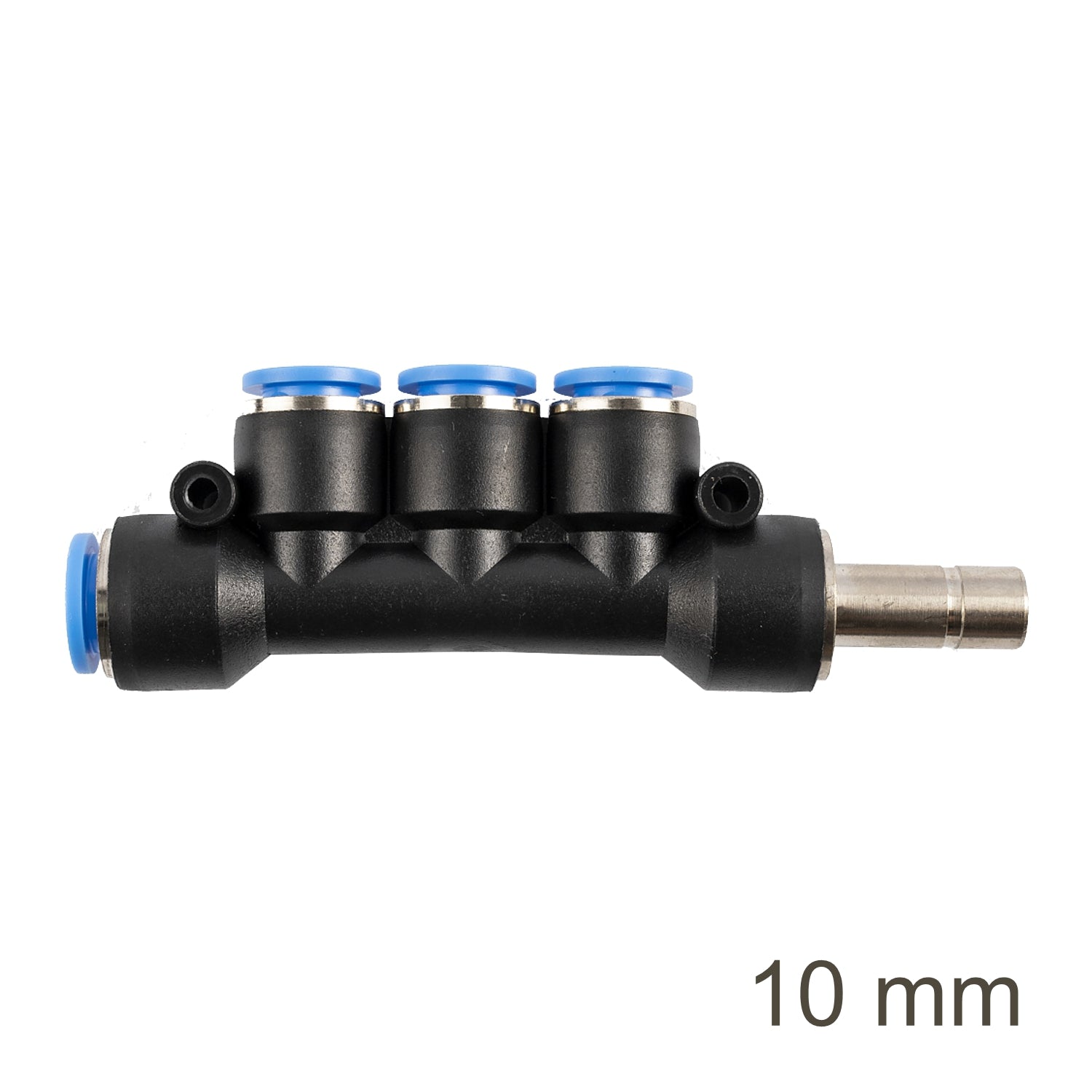

AirCraft Insert Manifold Side 4-Port PU 10mm (SG APKJ10)
At a Glance: 4-Port Side Insert Manifold with 10mm Push-In Tube Connections
Build a clean, compact pneumatic layout with the AirCraft SG APKJ10 insert manifold. Designed as a side-entry distribution fitting, it gives you four quick push-in ports for 10mm pneumatic tubing—perfect for splitting a single air supply into multiple lines for valves, actuators and air-assisted stations. Neat routing, quick assembly, and fewer fittings to wrestle with, especially on bigger air lines.
This side insert manifold is ideal where space is tight and you want multiple outlets in one tidy body. Push-in connections make it quick to assemble and easy to service when you need to change or reroute tube runs in compressed-air systems.
Features
- Four push-in ports Connect up to four 10mm pneumatic tube lines quickly.
- Side insert style Helps keep the manifold compact and simplifies routing in tight spaces.
- One-touch tube connections Fast fitment and easier maintenance without special tools.
- Clean distribution layout Reduces the need for multiple tees and adapters.
Benefits
- Neater installations: Creates a single distribution point to reduce clutter and simplify pneumatic plumbing.
- Faster setup: Push-in ports make tubing runs quick and clean.
- Easy maintenance: Disconnect and reroute lines with less downtime.
Extra Information
- Designed for 10mm outside diameter pneumatic tubing (commonly PU/nylon air line).
- Ideal for compact pneumatic circuits, automation, packaging, and workshop compressed-air applications.
- For best sealing, ensure tubing is cut square and fully inserted before pressurising.
Pro Tip
- On 10mm tubing, make sure the tube is pushed in fully and seated—then give it a light tug test on each port before you pressurise the system.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG APKJ10 |
| Product Type | Insert Manifold (Side) / Pneumatic Distributor |
| Ports | 4-Port |
| Tube Size | 10mm (OD) |
| Connection Type | Push-In |
| Configuration | Side Insert Manifold |
| Typical Use | Compressed Air / Pneumatic Systems |
Safety
- Always isolate and depressurise the air system before installing or removing pneumatic fittings.
- Wear eye protection when working with compressed air lines and pressurised components.
- After installation, check for leaks using soapy water or an approved leak-detection method.
- Do not use damaged tubing or fittings, and never exceed the pressure ratings of your pneumatic system components.
