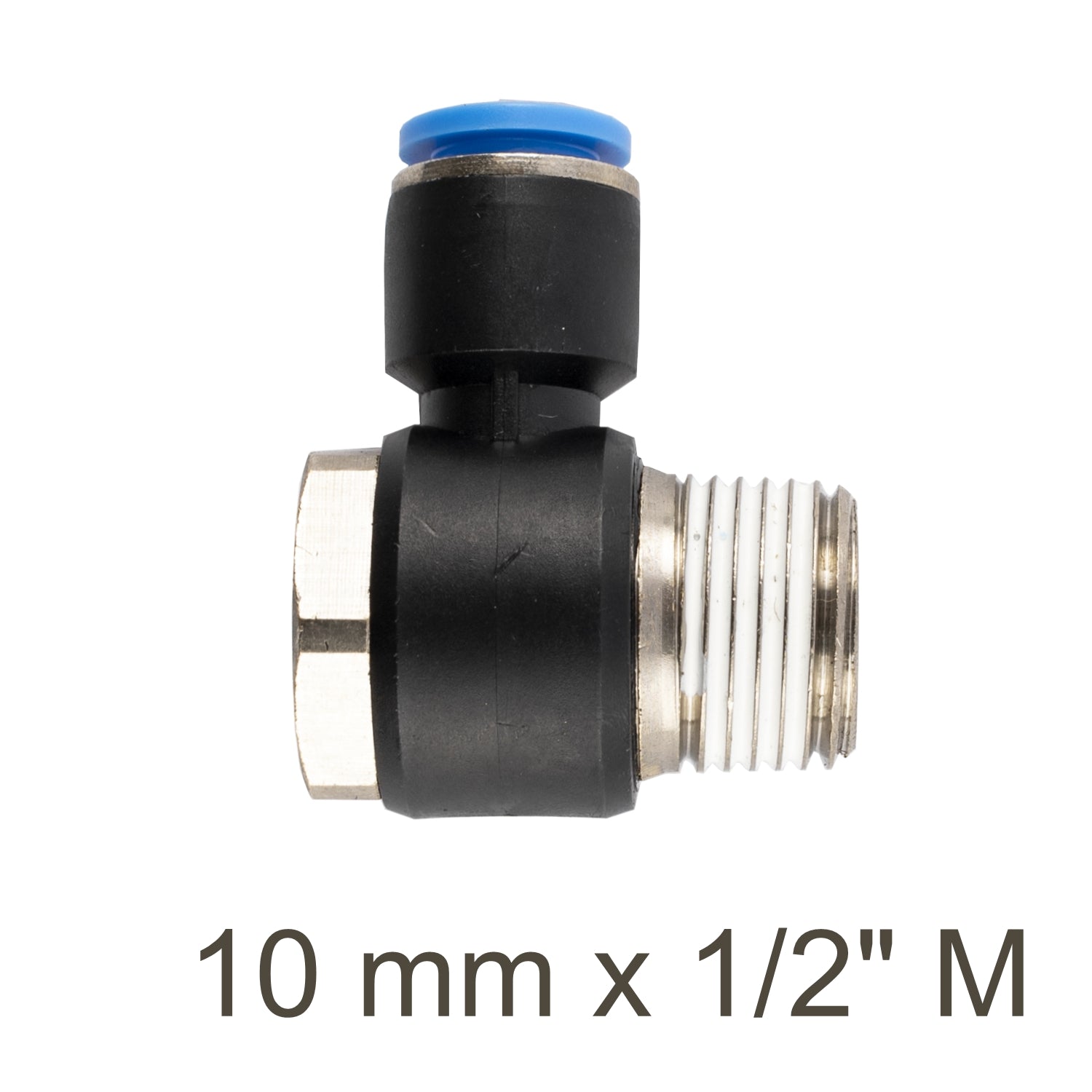

AirCraft Swivel Elbow PU 10mm x 1/2" Male (SG-APH10-04)
At a Glance: 10mm Push-In Tube x 1/2" Male Thread Swivel Elbow
When you need a bigger threaded connection without sacrificing neat hose routing, the AirCraft SG-APH10-04 swivel elbow fitting delivers. This one-touch push-in connector links 10mm PU tubing to a 1/2" male threaded port, while the swivel elbow action helps the tube align naturally—reducing twisting, kinks and strain for a tidy, reliable pneumatic installation that’s easy to service.
The 90° swivel design allows the tube to rotate for easier positioning during installation and maintenance. Ideal for compressed-air systems, air preparation units, manifolds and industrial pneumatic equipment where 1/2" ports are used and space is limited.
Features
- One-touch push-in connection Quick tube installation and removal without special tools.
- Swivel elbow design Rotates to reduce tube twisting and improve hose alignment.
- Compact 90° elbow profile Keeps air lines neat around corners and tight installations.
- Durable construction Composite body with a metal threaded end for dependable service life.
Benefits
- Faster installations: Push-in fitment speeds up repairs, upgrades and new builds.
- Less tube fatigue: Swivel action helps prevent kinking and strain, extending tubing life.
- Cleaner hose routing: Neat elbow routing reduces clutter and improves access around components.
Extra Information
- Designed for 10mm outside diameter pneumatic tubing (commonly PU/nylon air line).
- The 1/2" male threaded end suits larger pneumatic ports on air prep equipment, valves and manifolds.
- Use an appropriate thread sealing method where required and avoid overtightening—tighten firmly, then leak-check.
Pro Tip
- Cut the tube end square and clean, push it fully into the fitting, then tug lightly to confirm it’s locked. After pressurising, do a quick leak check before putting the system back into service.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG-APH10-04 |
| Product Type | Pneumatic Push-In Swivel Elbow Fitting |
| Tube Size | 10mm (OD) |
| Thread Size | 1/2" Male |
| Fitting Angle | 90° Elbow |
| Function | Swivel, One-Touch Push-In Connection |
| Typical Use | Compressed Air / Pneumatic Systems |
Safety
- Always isolate and depressurise the air system before installing or removing pneumatic fittings.
- Wear eye protection when working with compressed air lines and pressurised components.
- After installation, check for leaks using soapy water or an approved leak-detection method.
- Do not use damaged tubing or fittings, and never exceed the pressure ratings of your pneumatic system components.
