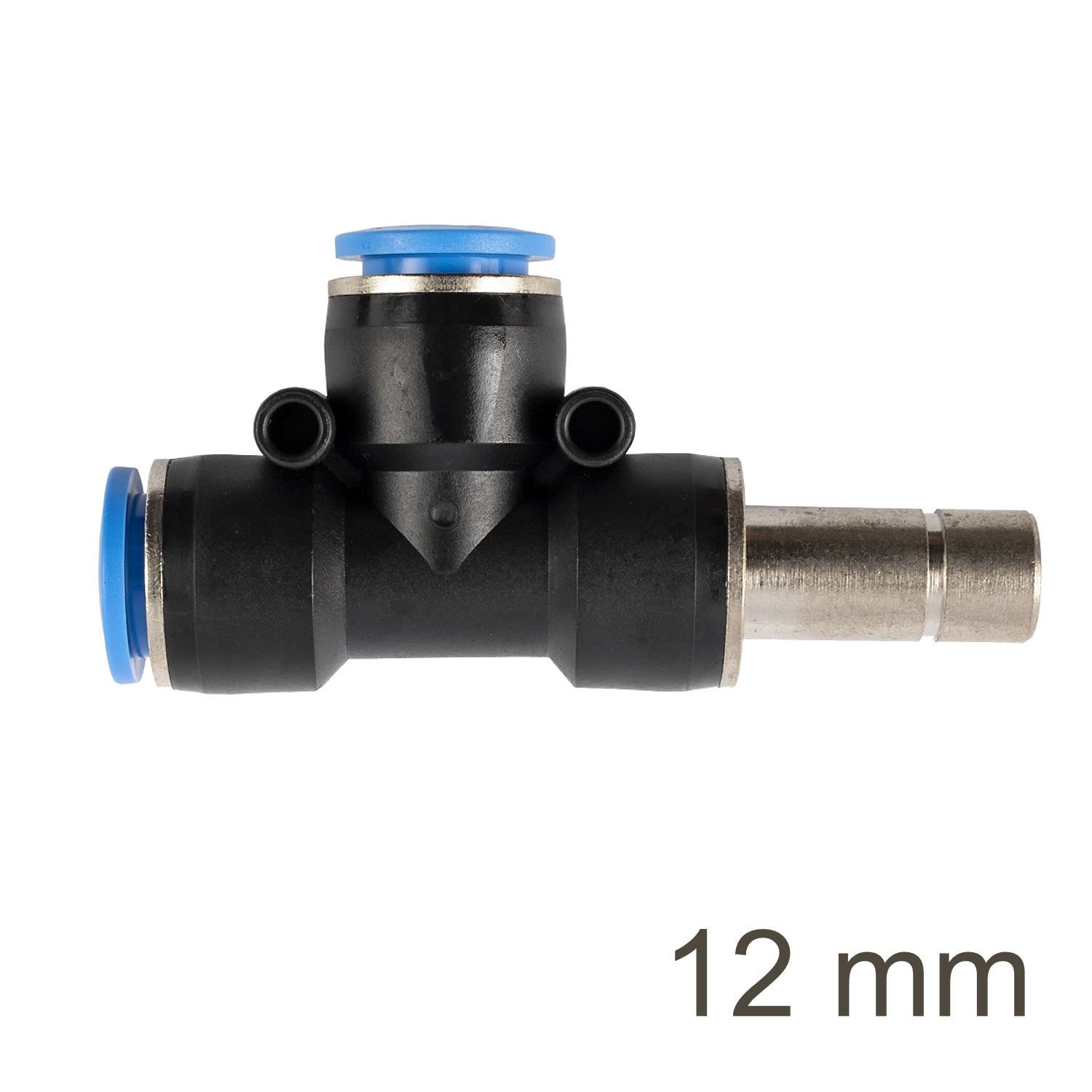

AirCraft Insert T-Joint Side PU 12mm (SG APDJ12)
At a Glance; Side-branch push-in tee for 12 mm pneumatic tubing
The AirCraft SG APDJ12 Insert T-Joint Side PU 12mm is designed for clean, space-saving branching in pneumatic systems where larger tubing is used for higher airflow. This side tee fitting lets you run a 12 mm tube line straight through while taking a tidy side outlet for an extra tool, valve, gauge, cylinder feed, or accessory. It’s ideal for workshop air distribution, machinery, and control panels where quick push-in installation keeps everything organised and easy to maintain.
The side-branch tee layout helps prevent messy tubing routes by keeping your main line flowing straight through the fitting, while the branch port provides a convenient take-off point. Push-in collets grip securely and release quickly for servicing or rerouting.
Features
- Side tee (branch tee) layout Creates a neat side outlet off a straight-through tube run.
- 12 mm push-in connections Designed for 12 mm outside diameter pneumatic tubing.
- Quick-connect collet design Fast installation and easy tube removal when needed.
- Compact body Ideal for tight spaces in panels, benches and machine frames.
Benefits
- Neater air lines: Add a branch without bulky adaptors and awkward routing.
- Faster maintenance: Push-in connections make changes and servicing quick and clean.
- Reliable performance: Secure tube grip helps reduce leaks and keeps lines stable.
Extra Information
- Suitable for pneumatic tubing such as PU and nylon (12 mm OD).
- For best results, cut tubing square and clean, then insert fully until it bottoms out.
- To release tubing, press the collet ring in and pull the tube out gently.
Pro Tip
- Support the branch line so it doesn’t pull on the tee, and keep bends gentle near the fitting—stable tubing routing improves sealing and airflow consistency.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG APDJ12 |
| Product Type | Insert T-Joint Side (Side Tee / Branch Tee) |
| Tube Size | 12 mm (OD) |
| Connection Type | Push-to-Connect (Collet Release) |
| Suitable Tubing | PU / Nylon Pneumatic Tube |
| Application | Compressed Air Line Branching |
Safety
- Wear eye protection when working with pressurised air lines.
- Depressurise the system before installing, removing, or adjusting pneumatic fittings.
- Route tubing to avoid kinks, abrasion and snag points that can cause leaks or failure.
- Do not exceed the rated limits of your compressor, regulator, hoses and fittings.
