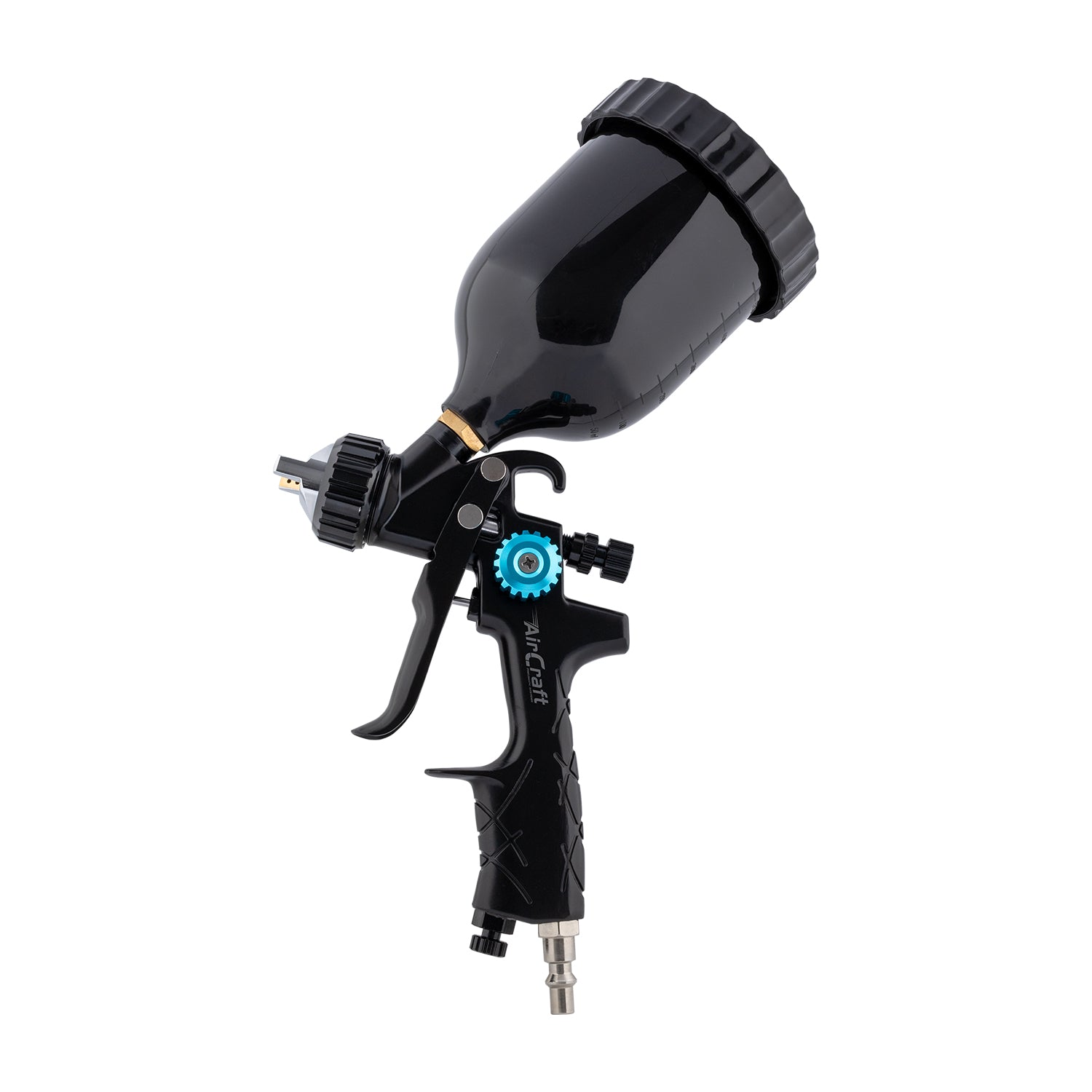

Spray Gun HVLP Gravity Feed Viper Series
Nozzle: 1.4mm
Pattern Width: 240 - 270mm
Cup Size: 600ml
The Aircraft Viper Series is a new addition to our HVLP spray gun line-up. HVLP stands for High Volume Low Pressure. This type of spray gun is designed to minimize overspray and improve transfer efficiency, making it a popular choice for various applications, including automotive painting, woodworking, and general finishing.
Application:
- Automotive paints
- Workshop
- Manufacturing
- DIY
Features
- Deep groove air cap ring for easy lock and easy to disassemble.
- High-grade air cap, atomization is more uniform and fine.
- Arc-shaped trigger, for more flexible control and spraying without fatigue.
- Teflon surface for alkali resistance and corrosion resistance.
- Curved handle design increased ergonomics and abstract scale design.
| Description | Specification |
| Packaging Type | Colored cardboard box |
| Package Dimensions | 225(L) x 150(W) x 130(H)mm |
| Package Weight | 820g |
| Tool Weight | 540g |
| Material | Body :Aluminium Nozzle cap: Aluminium & Brass |
| Finish | Black Teflon surface and blue anodized knob. |
| Standard Nozzle | 1.4mm |
| Optimal pressure | 3.5bar/50PSI |
| Maximum pressure | 4.0Bar/58PSI |
| Air consumption | 11-13cfm |
| Pattern width | 240-270mm |
| Spray distance | 200mm |
| Cup capacity | 600ml |
| Content | 1 x Spray Gun 1 x Cup 1 x Multi-purpose wrench 1 x Nylon brush 1 x Filter 1 x Spanner socket |
Download the Specification sheet:
View the Specification sheet:
Download the Exploded view:
View the Exploded view:
