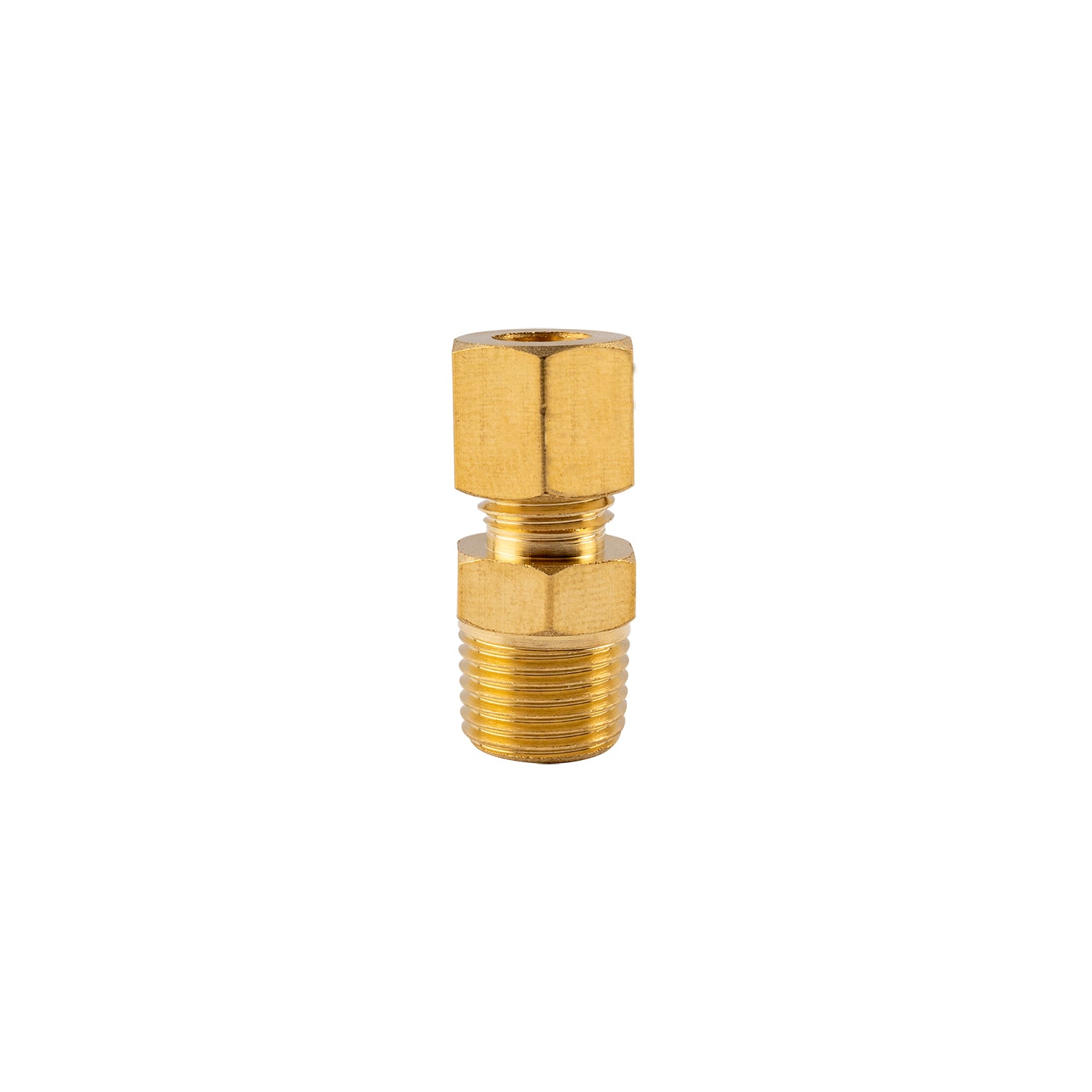

AirCraft Brass Conical Straight 5/32" Tube x 1/8" M (SB6802A)
At a Glance: Conical tube-to-thread straight fitting: 5/32" tube to 1/8" male connection
When you need to connect small-bore tubing to a standard pneumatic port, a proper tube-to-thread fitting keeps the job neat and leak-conscious. The AirCraft SB6802A brass conical straight fitting adapts 5/32" tubing to a 1/8" male-thread connection in a compact straight-through layout—ideal for control lines, air preparation units, compact pneumatic assemblies and general compressed-air plumbing. Brass construction offers durability and corrosion resistance, while the conical connection style is designed to seat securely when installed correctly.
AirCraft tube fittings are made to keep pneumatic layouts practical and serviceable. This straight connector gives you a tidy transition from 5/32" tube to a 1/8" male-thread port without bulky adaptors.
Features
- Brass construction Tough, corrosion-resistant body suited to workshop and industrial environments.
- Tube-to-thread adaptor Connects 5/32" tubing to a 1/8" male-thread port in one compact fitting.
- Straight conical design Straight-through layout designed for a secure, leak-conscious connection.
- Compact size Ideal for tight spaces in control panels, manifolds and small pneumatic assemblies.
Benefits
- Neater installations: Reduces adaptor stacking and keeps tubing runs clean and serviceable.
- Quick connections: Makes it easy to run small control lines into standard 1/8" ports.
- Reliable performance: Proper fitment helps reduce air loss from leaks and supports consistent operation.
Extra Information
- Use with compatible 5/32" pneumatic tubing; cut the tube squarely for best sealing.
- Use PTFE thread seal tape or suitable pneumatic thread sealant on the 1/8" male thread where applicable.
- Start threads by hand to avoid cross-threading; tighten using the flats—avoid over-tightening.
- After installation, pressurise gradually and check for leaks using soapy water before full operation.
Pro Tip
- Keep seal tape clear of the air path: wrap neatly on the thread only and avoid loose ends. On small-bore lines, tiny bits of tape can cause annoying flow issues in valves and regulators.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SB6802A |
| Product Type | Brass Conical Straight Tube-To-Thread Fitting |
| Tube Size | 5/32" |
| Thread Size | 1/8" Male |
| Configuration | Straight |
| Material | Brass |
| Application | Pneumatic / Compressed Air Tubing To Port Connection |
Safety
- Wear eye protection when working with pressurised air lines.
- Depressurise the system fully before cutting, removing or installing tubing and fittings.
- Do not exceed the pressure rating of your tubing, fittings or system components.
- Check for leaks after installation and correct immediately to prevent hose whip or unexpected tool actuation.
