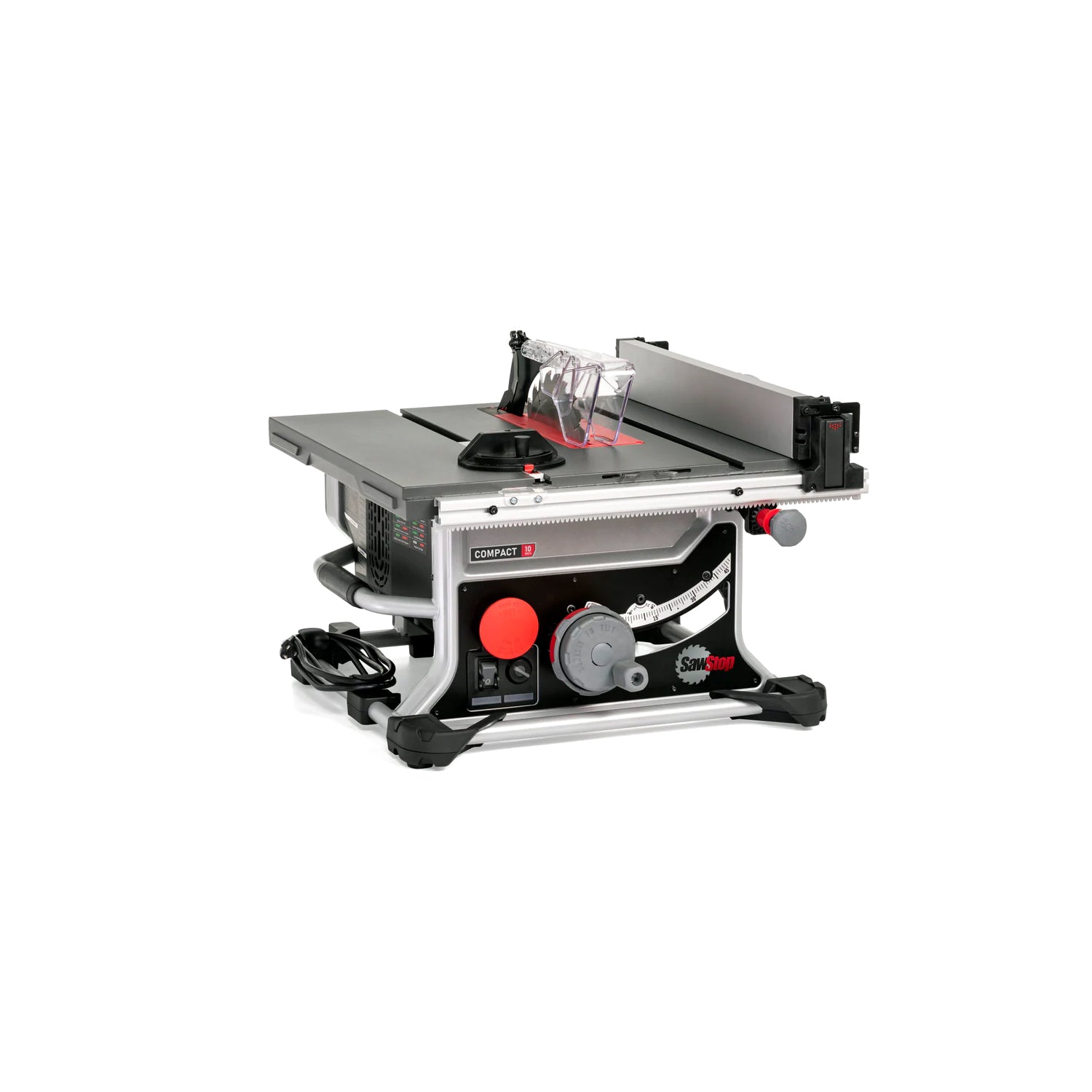

Compact Table Saw CTS™
The safest portable table saw for the jobsite
Looking for something with a smaller footprint? The Compact
Table Saw (CTS) is SawStop’s smallest and most portable saw.
Featuring 24.5” of rip capacity, the CTS has a rack & pinion fence, easy blade tilting with micro-adjustment, and onboard tool storage, all within a compact, easy-to-carry package.
Features
- Exclusive-to-SawStop micro-adjust feature allows you to get the most precise cutting angles possible on a job site
- Solid Hi-Low Rack & Pinion Fence: Ensures reliably accurate cuts while supporting wide rips up to 24 1/2”
- Rigid tube structure and rubber feet provide a durable, stable cutting experience
- 10' blade for greater depth of cut
- On-saw storage compartment so you have all the tools you need close at hand
- Compact and portable for easy travel to any job site
- SawStop Safety System stops on contact with skin
- Standard-width miter slot
- Optional folding stand available
Included items
- (1) Miter Gauge
- (1) Brake Cartridge (installed)
- (1) 4 mm Hex Key
- (2) Blade Wrenches
- (1) Riving Knife (installed)
- (1) Blade Guard with Spreader and Anti-Kickback Pawls
- (1) 24-Tooth Ripping Blade (installed)
- (1) Push Stick
- (1) Standard Lockdown Insert (installed)
| Description | Specification |
|---|---|
| Motor Configuration | 230VAC 50 Hz, Universal |
| No-Load RPM | 4000 |
| Amperage | 10A |
| Blade | 10' (not compatible with Dado blades) |
| Max. Depth of Cut at 0° | 79.5 mm |
| Max. Depth of Cut at 45° | 54mm |
| Max. Rip Capacity | 648mm |
| Weight | 30.84kg |
| Dust Port | Ø63.5mm |
| Table surface | 584mm (W), 574 (D) |
