Contractor
Saw
The SawStop® Contractor Saw offers versatility and safety. Whether on the job site or in the shop, it delivers the performance you need with the peace of mind only SawStop's patented safety system can provide.

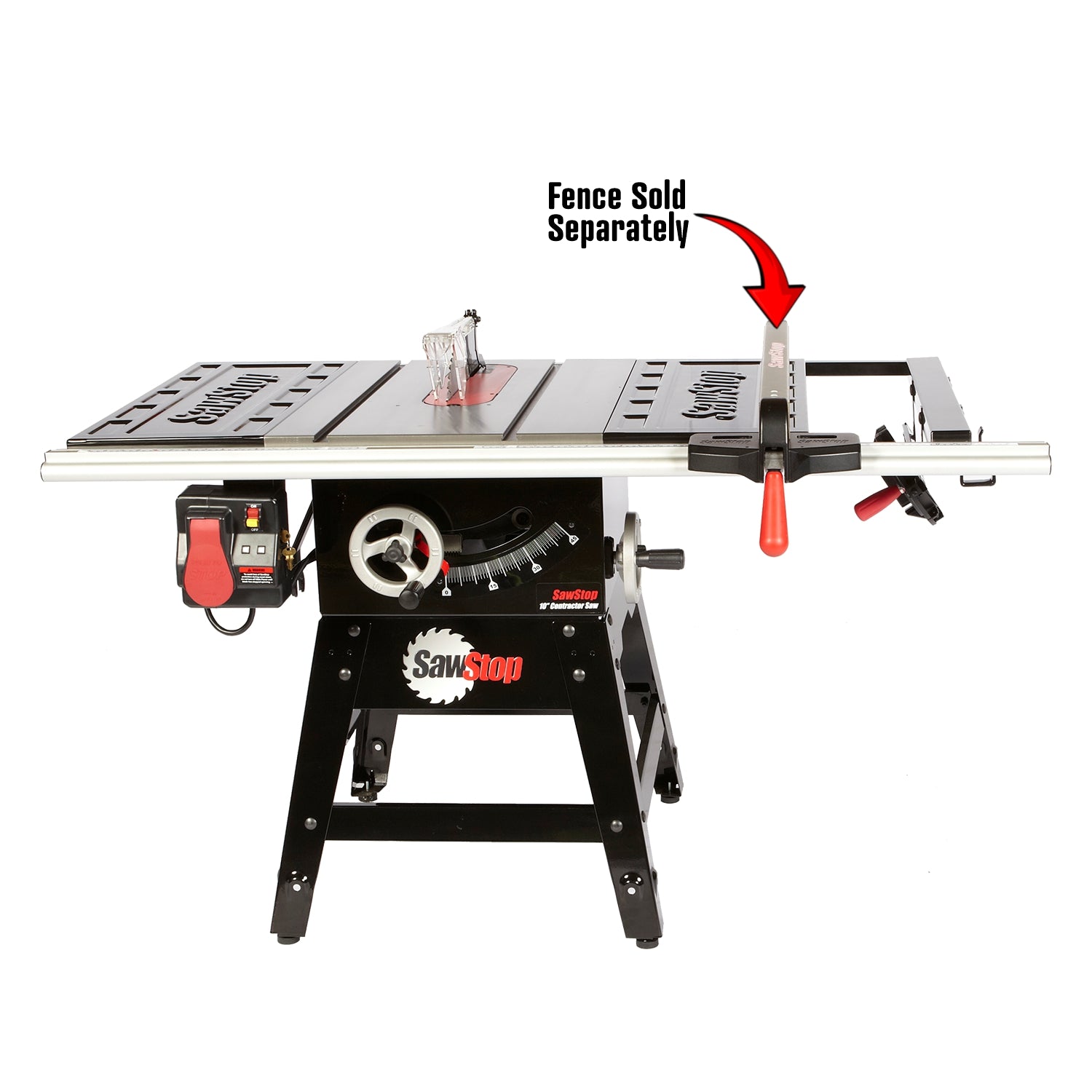

Note: Picture shown with optional accessories fitted
Quick facts
- Open cabinet with ouboard motor & table-mounted trunnion
- SawStop Safety System stops on contact with skin
- Lightest weight, most affordable cast-iron SawStop Saw
- Versatile configurations (field mobility, shop mobility, wing options)
- Uses identical Professional T-Glide Fence for 36” & 52” rip capacities.
- 1485 mm wide X 1015 mm deep X 883 mm high
We do not recommend using generators with our saws because the fluctuating voltage level can harm the electronics over time and cause damage to them as well.
The SawStop® Contractor Saw All-purpose versatility, reliability and safety
| Specification | Value |
| Motor configuration | 1.3 kW [1,75 hp], 1 phase, 230V, |
| Overall saw dimensions 36 in | |
| Width: | 1485 mm [58 1/2'] |
| Depth: | 1015 mm [40″] |
| Height: | 883 mm [34 3/4″] |
| Cast iron table: | 20″ w x 27″ d 508 mm wide x 685 mm deep |
| Extension wings: | 12' wide x 27' deep 305 mm wide x 685 mm deep |
| Weights | |
| table saw only: | 102 kg [225 lbs] |
| 30 in fence systems: | 111 kg [245 lbs] |
| 36 in fence systems: | 140 kg [310 lbs] |
| 52 in fence systems: | 151 kg [335 lbs] |
| Shipping weight (approx.): | 108 kg [240 lb] (table saw only) |
| Saw blade | |
| Arbor Ø: | 5/8' |
| Diameter | 254 mm [10'] |
| Blade tilt: | Left |
| Blade kerf: | 3 mm |
| Blade plate thickness: | 2 mm |
| Cutting capacities | |
| Max. depth of cut, blade at 0°: | 79,4 mm [3 1/8″] |
| Max. depth of cut, blade at 45°: | 57.15 mm [2 1/4'] |
| Max. rip, right of blade - 30 in: | 775 mm [30 1/2″] (w/ optional 30″ rails) |
| Max. rip, right of blade - 36 in: | 927 mm [36 1/2″]
(w/ optional 36″ rails) |
| Max. rip, right of blade - 52 in: | 1334 mm [52 1/2″] (w/ optional 52″ rails) |
| Max. rip, left of blade: | 419 mm [16 1/2″] |
| Dado diameter: | 200 mm [8″] (requires a separate brake cartridge and insert) |
| Dado max. width: | 20 mm [13/16″] |
| Table in front of blade (max. elevation): | 269.85 mm [10 5/8'] |
| Table behind blade (max. elevation): | 180 mm [7 1/8″] |
| Accuracy | |
| Arbor Runout: | 0.0254 mm [0.001″] Maximum allowable runout |
| Table flatness measured diagonally: | 0.406 mm [0.016″] Maximum gap |
| Blade alignment with miter slot: | 0.254 mm [0.010″ ] Maximum displacement |
| Deviation of miter gauge indexing stops from actual: | ±0.25° |
| Alignment between splitter and blade: | 0.254 mm [0.010″] Maximum difference |
| Mitre slots | |
| Miter slots T-shaped: | 19.05 mm [3/4″] at top, 25.4 mm [1″] at bottom, 9.525 mm [3/8″] deep |
| Miter slots center: | 282.58 mm [11 1/8″] center-to-center |
| Miter slots info: | 139.7 mm [5 1/2″ ] (arbor flange to center of right slot) |
| Other general specifications | |
| Dust collection port diameter: | 100 mm [4'] under table top |
| Riving knife / splitter thickness: | 0.090' (2.3 mm) |
| Blade guard (micro guard): | polycarbonate |
| Hand wheels: | 152 mm [6″] diameter, aluminium w/ ABS handle |
| Belts: | V-ribbed belt – static dissipative |
SawStop Saws Detect Contact With Skin
The blade carries a small electrical signal, which the safety system continually monitors. When skin contacts the blade, the signal changes because the human body is conductive. The change to the signal activates the safety system.
How It Works
1.
Monitor & Detect
- The blade carries a small electrical signal.
- When skin contacts the blade, the signal changes because the human body is conductive.
- The change to the signal activates the safety system.
2.
Brake Activation
- An aluminum brake springs into the spinning blade, stopping it.
- The blade’s angular momentum drives it beneath the table, removing the risk of subsequent contact.
- Power to the motor is shut off.
All this happens in less than 5 milliseconds!
3.
Reset
Resetting the saw yourself is easy. Simply replace the blade and affordable brake cartridge and your saw is operational. The entire reset process takes less than five minutes.
Download the user manual: Download
