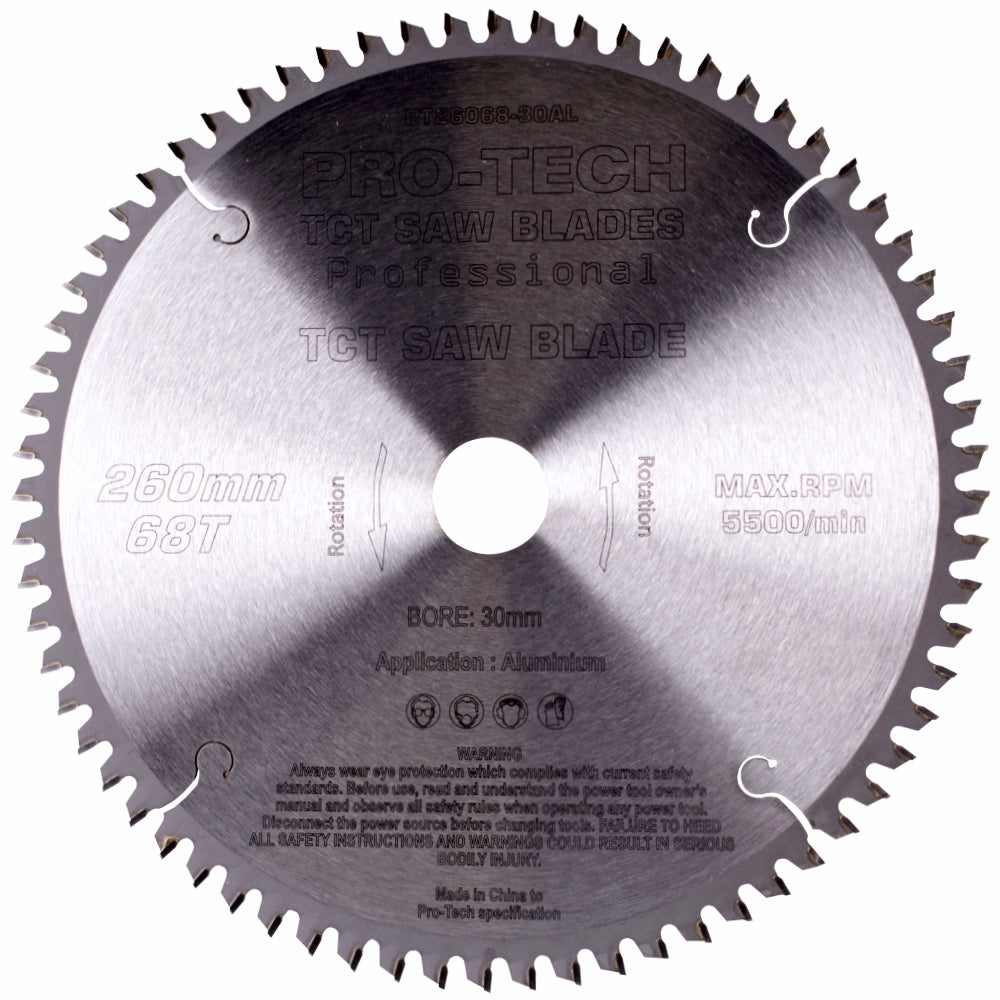

SAW BLADE TCT 260X2.4X30X68T ALUMINIUM PROF. PRO-TECH FES. KAPEX

Features:

• Optimized for Aluminum: This blade is engineered to handle aluminum and other non-ferrous metals like brass, copper, and plastics. The tooth geometry and design minimize friction and heat build-up, reducing the risk of material sticking to the blade or causing chipping.
• Professional-Grade Cutting: Suitable for professional use in industries such as metalworking, construction, and fabrication. The blade delivers clean, precise, and smooth cuts, essential for achieving a high-quality finish.
• Low Vibration and Noise: The blade is designed to minimize vibrations during cutting, which improves accuracy and reduces operator fatigue. This also helps in achieving a quieter cutting process, which is an added benefit in busy workshops or job sites.
• Long-Lasting Durability: TCT blades are known for their extended lifespan, thanks to the wear resistance of tungsten carbide. This makes the blade cost-effective in the long run, reducing the need for frequent replacements.

Saw blade terminology

Arbor:
The shaft that turns the saw blade.

ATB:
Alternate Top Bevel. The tips on the saw blade bevels from left to right in sequence. Each tip has a sharp point that result in a clean, shear cut leaving a fine finish with minimal chipping. For use in plywood, veneer, particle board and wood.

Anti-kickback:
The gullet is shaped like a camel's hump, also called a limiter, to limit the amount of material that can safely be cut by each tooth.

Bore:
The center hole diameter of the saw blade.

Combination:
Circular saw blades that can be used both for crosscutting and ripping.

Crosscut:
A cut made across the grain of the wood. Cutting wood to length.

Dado:
A set of stacked blades designed to produce grooves.

Depth of cut:
The maximum depth of cut safely achievable determined by the power tool and saw blade diameter.

Diameter:
The outside of the saw blade measured directly accross from one tip to the other opposing tip.

Expansion slots:
Heat is generated with each cut due to friction. All saw blades have expansion slots in the body of the blade to have an outlet to release tension and warping.

Flange:
Falnges are used to clamp the saw blade to the arbor of the saw. Most of the time, the flanges cover more or less a third of the saw blade's diameter. It is important that the flanges are always clean to prevent warping and vibration.

Flat top grind (FTG):
Unlike the ATB, the tips are ground flat with a 0° top angle. The tips are more durable and longer lasting. Mostly used with rip saw blades.

Gullet:
The hollowed out shape between teeth that assists with chip clearance. Saw blades have different gullet designs. Mostly dependant on the material being cut.

Hollow ground:
The tips are concave shaped.

Hook angle/rake/pitch:
Forward angled tips tend to grab material, like a gouge carving into the material. Backward angled tips don't have grabbing at all, like a scissor cutting the material.

Kerf:
The width of cut.

Rip:
A cut made along the grain direction of the wood. Cutting wood to width.

Shim/bushing:
Depending on the bore of the saw blade and the arbor of the saw. A shim or bushing is available to adapt the saw blade to the arbor. No bushings or shims are available in Ø 22.23mm.

TCG:
Triple Chip Grind. A flat top tooth is followed by a trapezoidal tooth. Designed for saw blades to eliminate chipping in brittle materials like chipboard and laminated material.

Thin kerf:
The saw blades are slightly narrower than standard saw blades. A lot less power is needed to make cuts and it has a slightly lower material waste. Keep in mind to recalibrate the scale on table saws when fitting a thin kerf saw blade.
