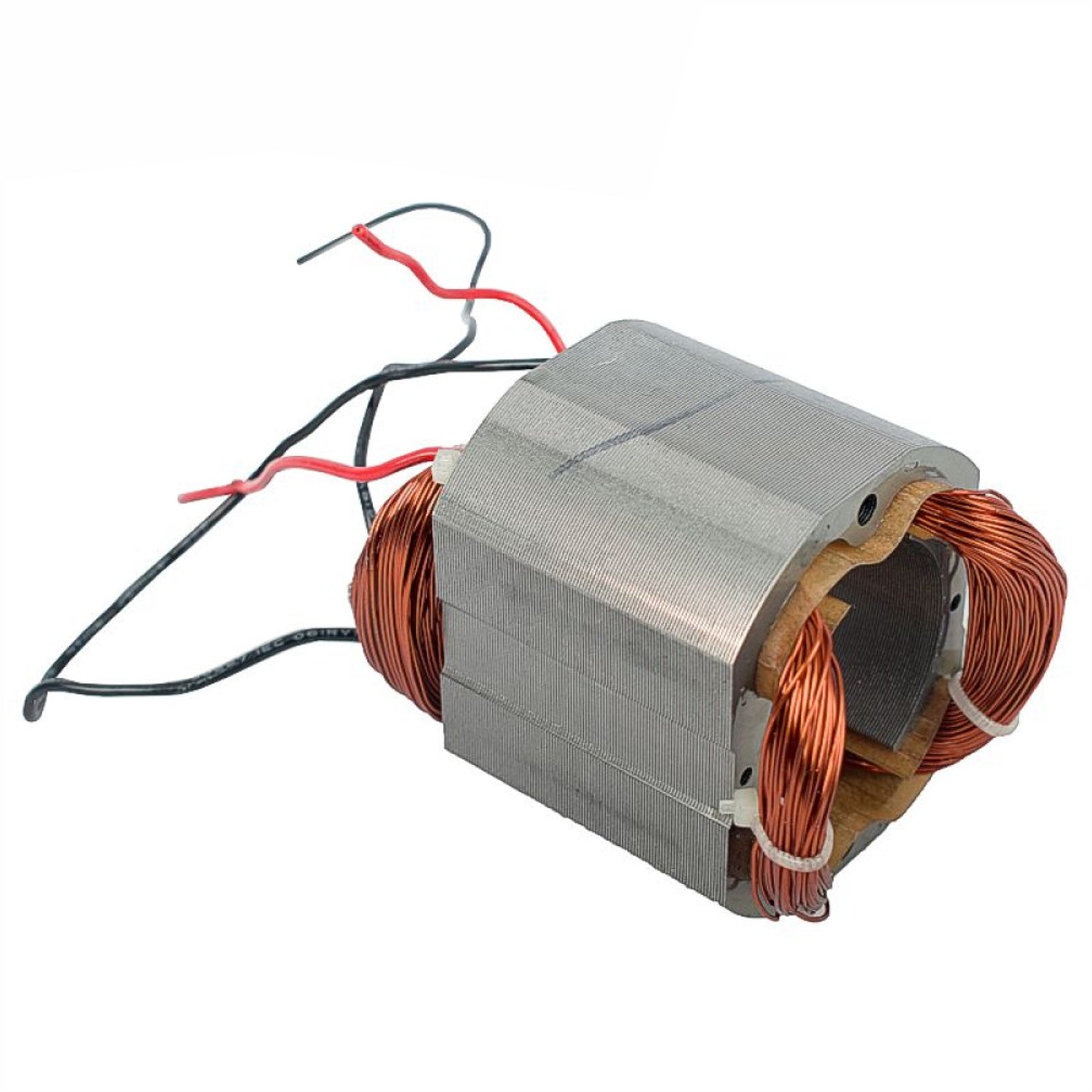

POLISHER SERVICE KIT STATOR (29/30) FOR POL05
POLISHER SERVICE KIT STATOR (29/30) FOR POL05
Couldn't load pickup availability
Share

Features
- Genuine Tork Craft stator service kit for the POL05 polisher.
- Includes stator assembly and related components as referenced by items 29 and 30.
- Correct winding specification and insulation class for the POL05 motor.
- Factory-shaped laminations and mounting points to suit the original housing.
- Designed to work with genuine POL05 armature, brushes and holders.
- Suitable for demanding workshop, body repair and detailing use.
Benefits
- Restores lost torque and smoother running to a tired or damaged POL05 motor.
- Reduces overheating, nuisance tripping and harsh electrical noise.
- Improves efficiency so more power reaches the pad under load.
- Protects the new armature and brushes by matching the original motor design.
- Extends the life of the polisher instead of replacing the complete machine.
Extra Information
Common symptoms of a failing stator include strong electrical smell, visible discolouration or cracking of the windings, very weak torque even with a good armature, or a motor that hums loudly and struggles to start. If insulation breakdown has occurred, continuing to run the tool can quickly damage other motor components and trip supply protection repeatedly.
The POL05-SK08 stator is built specifically for the Tork Craft POL05 polisher, so its physical size, mounting holes and winding characteristics all match the OEM design. For best results, combine a new stator with a healthy armature, correct bearings and fresh carbon brushes so the complete motor package is brought back to reliable, workshop-ready condition.
Pro Tip
Pro Tip: Before removing the old stator, mark the lead positions and take photos of the wiring routes and insulation sleeves. When installing the POL05-SK08 stator, pull all cables neatly through their original paths, make sure no wires are trapped between laminations and housing, and tighten all mounting screws evenly. After reassembly, run the polisher at low speed with no load for a few minutes to confirm smooth operation and stable current draw before returning it to full-duty work.
Specifications
| Technical | |
| Brand | Tork Craft |
| Model No. | POL05-SK08 |
| Product Type | Polisher Service Kit – Stator |
| Component Reference | Stator Assembly (Items 29, 30 – See POL05 Parts Diagram) |
| Compatible Tool | Tork Craft POL05 Polisher |
| Function | Fixed field winding providing magnetic field for POL05 motor |
| Typical Symptoms | Low Torque, Overheating, Strong Electrical Smell, Poor Starting |
| Recommended Associated Parts | POL05 Armature, Bearings And Carbon Brushes |
| Category | Spare Part / Service Kit |
Safety
- Always unplug the polisher from the mains before opening the housing or working on the motor.
- Allow the tool to cool down fully before handling windings and insulation.
- Take care not to damage stator insulation or wiring when inserting the assembly into the housing.
- Ensure all electrical connections are secure, correctly insulated and routed away from moving parts.
- Refit all covers and screws securely and test the polisher under no load before normal use.
- If you are unsure about electrical repairs, have the work carried out by a qualified technician or an approved service centre.
