TorkCraft - 20 Piece Carbon Steel Tap and Die Set
Product Overview

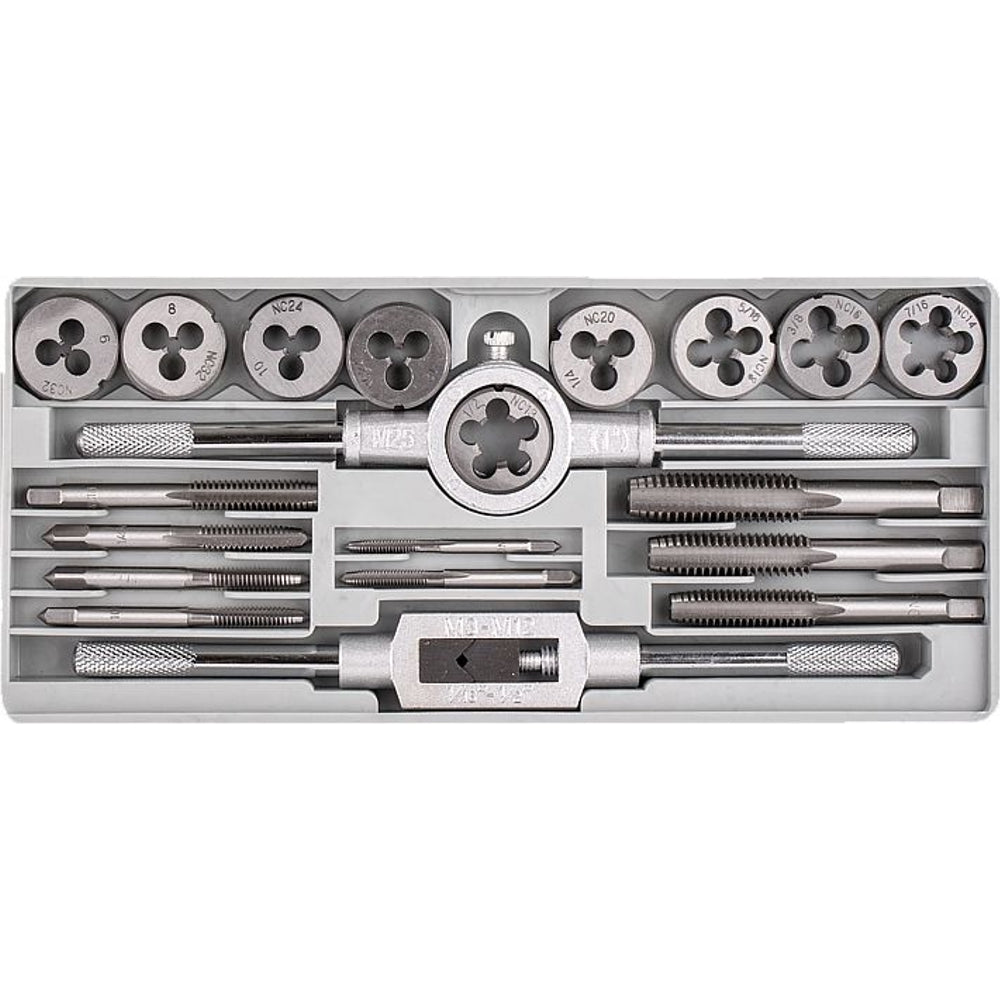

The TorkCraft 20 Piece carbon steel tap and die set, 9 taps and 9 dies included
between the sizes of 5/16' - 1.2', 1 Tap Wrench and 1 Die Wrench
Included
- 9 x Taps (5/16' - 1.2')
- 9 x Dies (5/16' - 1.2')
- 1 x Tap Wrench (M3 - M12)
- 1 x Die Wrench (1')
WARNING: Using any tool can be dangerous. Always select the right tool for the job.
NOTE: Though we recommend Drill Sizes for the different tap sizes, it may not always be applicable
Specifications
| Sizes | Recommended Drill Sizes | |
| 9 x Taps | 6 x NC32 | 2.85 mm |
| 8 x NC32 | 3.5 mm | |
| 10 x NC24 | 3.9 mm | |
| 12 x NC24 | 4.5 mm | |
| 1/4' NC20 | 5.1 mm | |
| 5/16' NC18 | 6.6 mm | |
| 3/8' x NC16 | 8.0 mm | |
| 7/16' x NC14 | 9.4 mm | |
| 1/2' x NC13 | 10.8 mm | |
| 9 x Dies | 6 x NC32 | |
| 8 x NC32 | ||
| 10 x NC24 | ||
| 12 x NC24 | ||
| 1/4' NC20 | ||
| 5/16' NC18 | ||
| 3/8' x NC16 | ||
| 7/16' x NC14 | ||
| 1/2' x NC13 | ||
| 1 x Tap Wrench | M3 - M12 | |
| 1 x Die Wrench | 1' |
