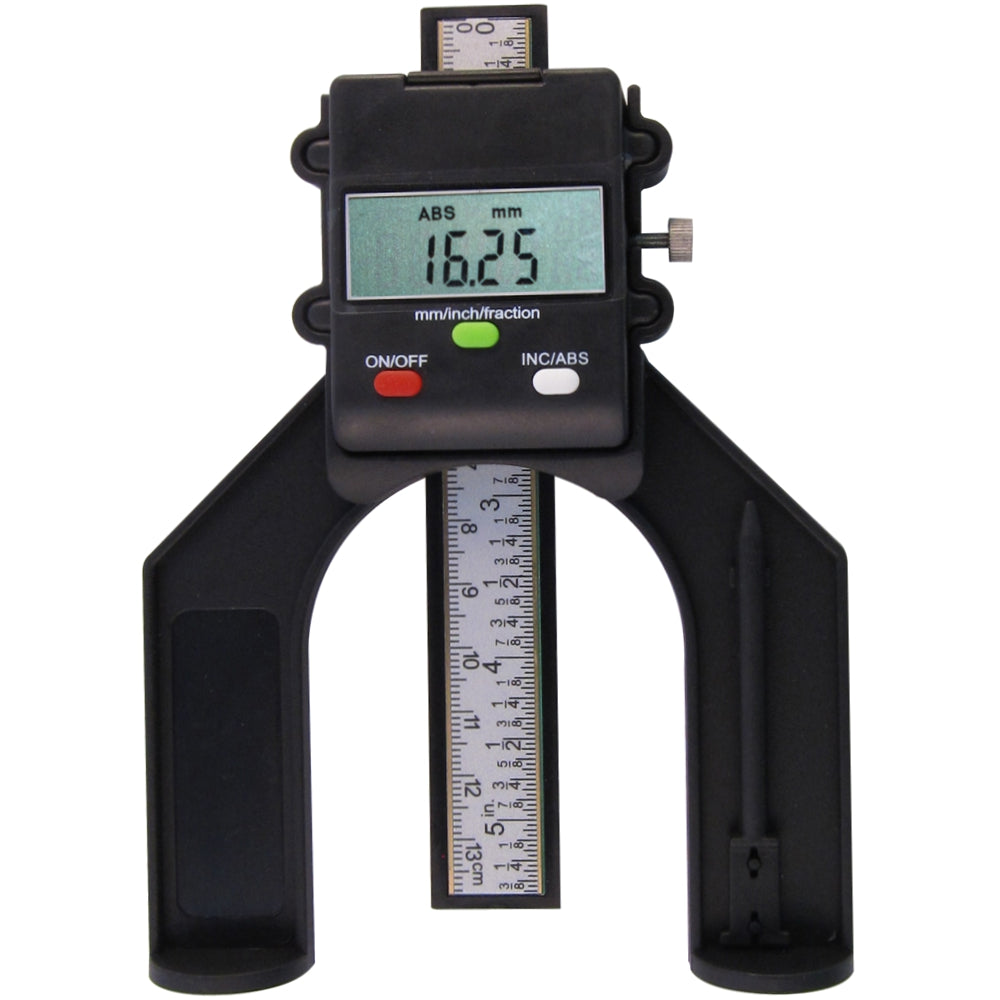

Digital Depth Gauge
The digital depth gauge is an instrument used to measure the depth, width and height of tooling in stationary machines.
Application:
- Depth/Height measurements
- Table saw adjustment.
- Router bit/table adjustment.
- Machine setup
- Woodworking
- Measuring
- DIY
Features
- Horizontal & vertical measuring.
- Self-standing for setting cutter depth.
- Measuring ruler with metric/imperial scale and locking screw.
- Digital display for easy reading.
- 60mm wide aperture.
- Magnets on base.
- 5min Auto shut off.
| Description | Specification |
| Packaging Type | Hanging sandwich blister |
| Package Dimensions | 215(L) x 170(W) x 30(H)mm |
| Package Weight | 144g |
| Material | Plastic |
| Measuring Ranges | 0 - 80mm |
| Opening width | 60mm |
| Resolution | 0.05mm |
| Read-out accuracy | 0.10mm |
| Repeatability | 0.05mm |
| Maximum measuring speed | 1.5m/s |
| Hole depth measuring range | 0 - 50.8mm |
| Battery Type | CR2032 (3V) |
| Content | Depth gauge Depth pin |
