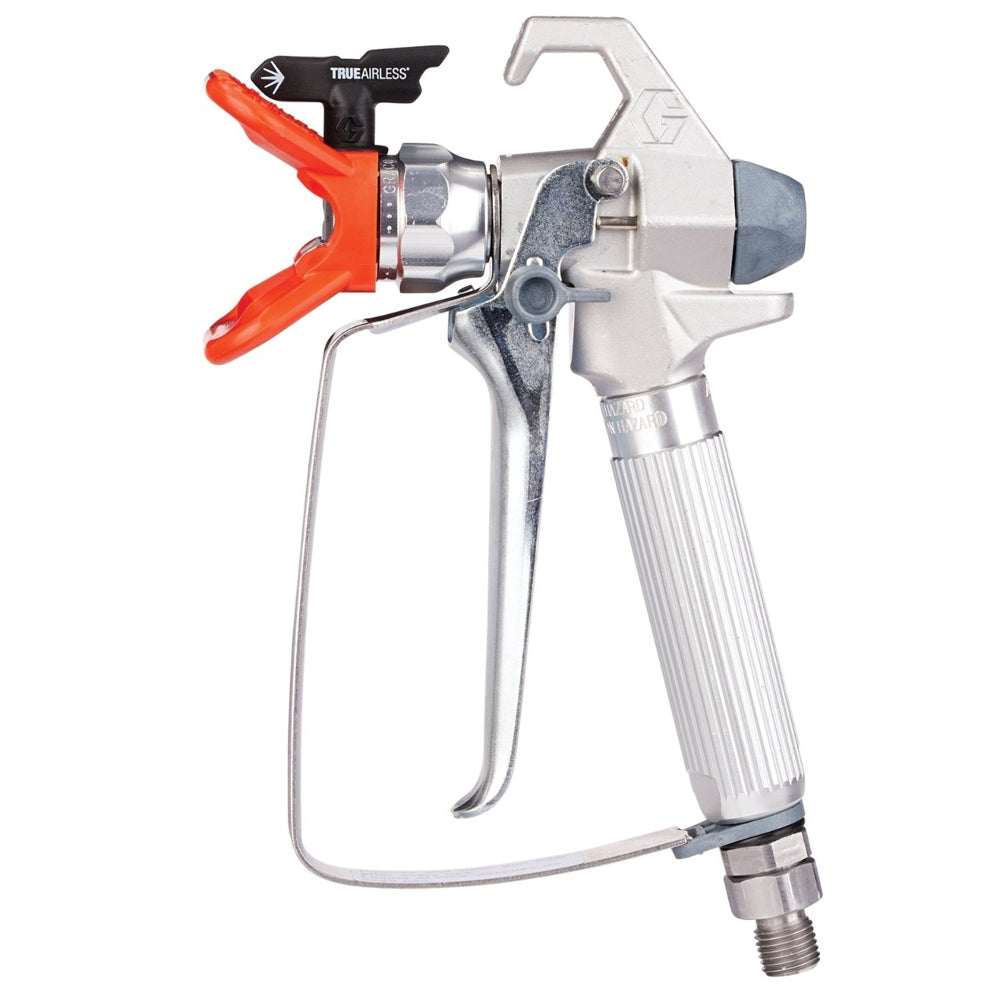

SG3 Metal Spray Gun
This lightweight spray gun is well-balanced with a full 4-finger trigger for a comfortable spraying experience. Includes a TrueAirless 515 spray tip and spray tip guard.
-
Smooth Glide Hose Swivel
- Reduces hose twisting
- Provides better control of the gun while spraying
-
In-Handle Paint Filter
- Easy access design
- Reduces tip clogging and improves finish
-
Full 4-Finger Trigger
- Locks open for flushing and cleaning
- Trigger pull is 30% lighter than its competition for reduced fatigue
| Compatible Material | Water-Based Paint, Solventborne Paints |
| Component Type | Single Component |
| Fluid Orifice Size (cm) | 0.318 |
| Fluid Orifice Size (mm) | 3.17 |
| Fluid orifice size (in) | 0.125 |
| For Use With | Project Painter Plus, X5, X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart |
| Gun Activation | Manual |
| Gun Type | Airless Gun |
| Gun Weight (oz) | 22 |
| Includes | TrueAirless 515 Spray Tip, Spray Tip Guard, Smooth Glide Swivel |
| Maximum Fluid Pressure (MPa) | 24.8 |
| Maximum Fluid Pressure (bar) | 248 |
| Maximum Fluid Pressure (kPa) | 24800 |
| Maximum Fluid Pressure (psi) | 3600 |
| Model | SG3 |
| Overall Height (cm) | 20.32 |
| Overall Height (mm) | 203.2 |
| Overall Length (cm) | 4.445 |
| Overall Length (mm) | 44.45 |
| Overall Width (cm) | 12.7 |
| Overall Width (mm) | 127 |
| Purge Method | Liquid |
| Series | Airless Gun |
| Trigger Lock | Locking |
| Trigger Type | Four-Finger |
| Type | Spray Gun |
