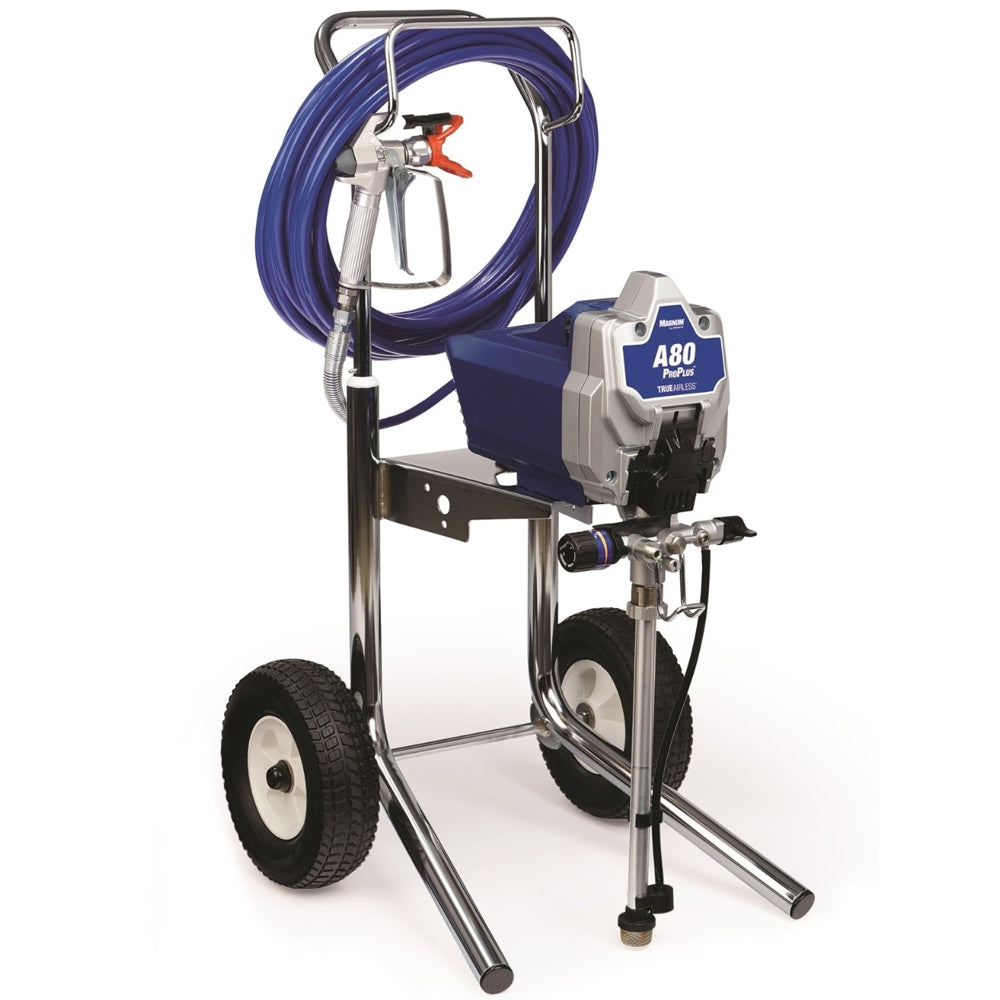

Magnum A80 ProPlus Electric Airless Sprayer
The Magnum A80 ProPlus is designed to handle a wide variety of large-sized interior and exterior paint jobs as well as commercial job sites. Turn projects around smarter and faster with the Magnum A80 ProPlus with built-in cart. This workhorse helps you save time and money by allowing you to spray thicker materials due to the 0.5 cm (0.021 in.) tip size. Eliminate downtime with fast, on-the-job pump swaps.
- ProX Stainless Steel Piston Pump - For greater reliability and longer lifetimes
- ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job
- Longer Pump Stroke - Supports a 0.5 cm (0.021 in.) tip to spray heavier material
- DC Motor - Delivers longer life and supports up to 60 m of airless hose
- Hot Solvent Compatible - Handles hot solvents, such as solvent-based lacquer
- PushPrime - Fast and reliable start-up every time
- SG3 Metal Spray Gun - Premium spray gun with hose swivel makes it easy to manage longer hose lengths
- TrueAirless Spray Tip with SoftSpray Technology - Greater control and less overspray, with a wide range of coatings
- Durable Welded Frame - Easy to transport around the job site
- Adjustable Pressure - Easy control of paint flow
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 0.875 |
| Engine Size (kW) | 0.65 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | SG3 spray gun, TrueAirless 515 spray tip, RAC5 spray tip guard, 1/4 in x 15 m DuraFlex hose, Pump Armor storage fluid (235 ml), garden hose connector, quick start-up guide and operating manual |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (ft) | 200 |
| Maximum Operating Temperature (°F) | 115 |
| Maximum Sound Pressure Level (dB(A)) | 93 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Minimum Operating Temperature (°F) | 40 |
| Minimum generator power (kW) | 0 |
| Model | Magnum |
| Motor Type | DC |
| Mount Type | ProXchange |
| Number of Guns | 1 |
| Outlet Paint Filter | InstaClean |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 20.8 |
| Overall Width (in) | 20.6 |
| Phase | 1 |
| Power Cord Length (in) | 70.9200 |
| Power Rating (HP) | 0.875 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product series | Pro series |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Hardened stainless steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | ProX Piston Pump |
| Recommended Annual Usage | 3000 L |
| Series | A80 ProPlus |
| Spray Gun Type | SG3 - spray gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (lb) | 49.5 |
| Wetted Material | Stainless Steel, Brass, Leather, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, Plated Steel, UHMWPE, Aluminium |
