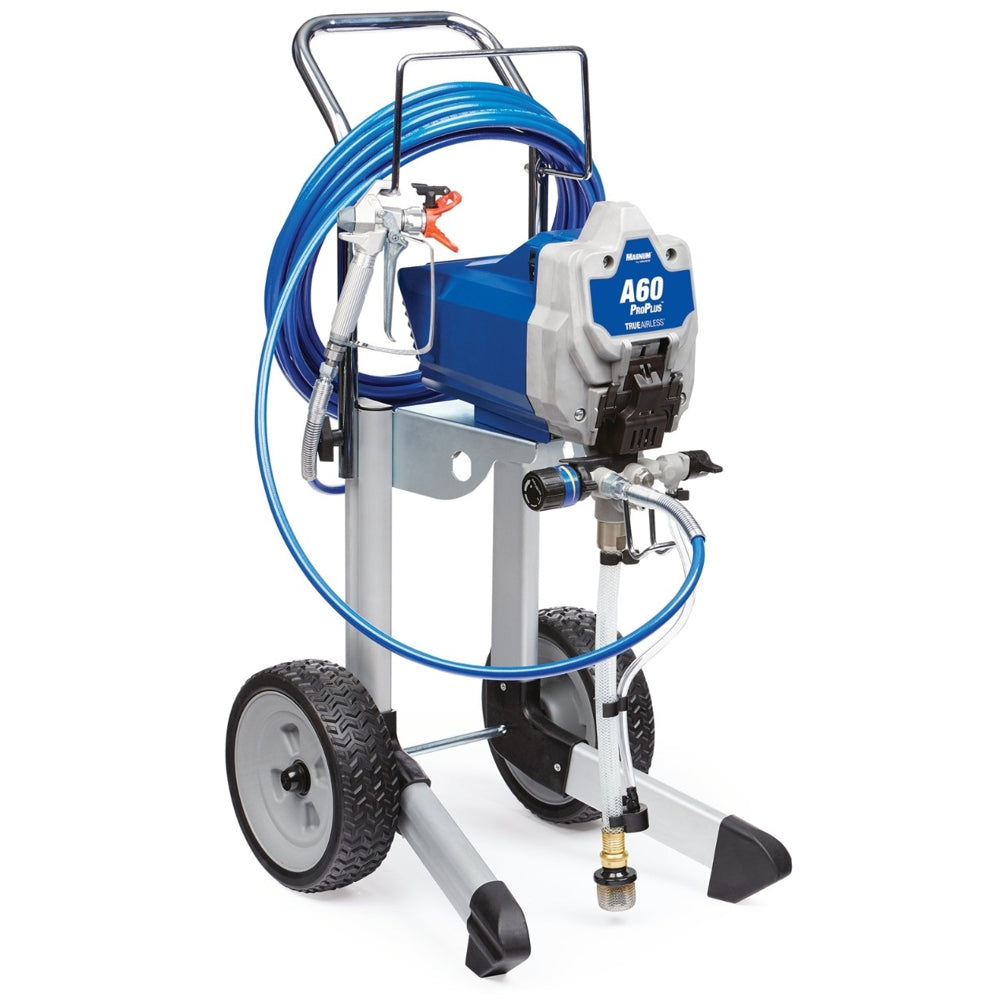

Magnum A60 ProPlus Electric Airless Sprayer
The Magnum A60 ProPlus is designed to handle a wide variety of large-sized interior and exterior paint jobs as well as commercial job sites. Turn projects around smarter and faster with the Magnum A60 ProPlus with built-in cart. This workhorse helps you save time and money by allowing you to spray thicker materials and eliminate downtime with fast, on-the-job pump swaps.
- ProX Stainless Steel Piston Pump - For greater reliability and longer lifetimes
- ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job
- DC Motor - Offers a longer lifetime and supports up to 45 m of airless hose
- PushPrime - Fast and reliable start-up every time
- SG3 Metal Spray Gun - Premium spray gun with hose swivel makes it easy to manage longer hose lengths
- TrueAirless Spray Tip with SoftSpray Technology - Greater control and less overspray, with a wide range of coatings
- Convenient Cart - Move paint and sprayer around job site
- Adjustable Pressure - Easy control of paint flow
- InstaClean Pump Filter - Added pump filtration reduces tip clogs from debris in the paint
- Power Flush Adapter - Connects to a garden hose for fast and easy clean-up
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 0.65 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | SG3 spray gun, TrueAirless 515 spray tip, RAC5 spray tip guard, 1/4 in x 15 m DuraFlex hose, Pump Armor storage fluid (235 ml), garden hose connector, quick start-up guide and operating manual |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 1.44 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 45 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Tip Size (cm) | 0.0483 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size (mm) | 0.4826 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Minimum Operating Temperature (°C) | 4 |
| Model | Magnum |
| Motor Type | DC |
| Mount Type | ProXchange |
| Number of Guns | 1 |
| Outlet Paint Filter | InstaClean |
| Overall Height (cm) | 93 |
| Overall Height (mm) | 932.1800 |
| Overall Length (cm) | 51.3 |
| Overall Length (mm) | 513.08 |
| Overall Width (cm) | 43.7 |
| Overall Width (mm) | 523.2400 |
| Phase | 1 |
| Power Cord Length (cm) | 180 |
| Power Cord Length (mm) | 1801.3680 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product series | Pro series |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Hardened stainless steel |
| Pump Sleeve Material | Stainless Steel |
| Recommended Annual Usage | 1500 L |
| Region plug type | EU region (type C, E & F plug) |
| Series | A60 ProPlus |
| Spray Gun Type | SG3 - spray gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (kg) | 17.1 |
| Wetted Material | Stainless Steel, Brass, Leather, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, Plated Steel, Aluminium, UHMWPE |
