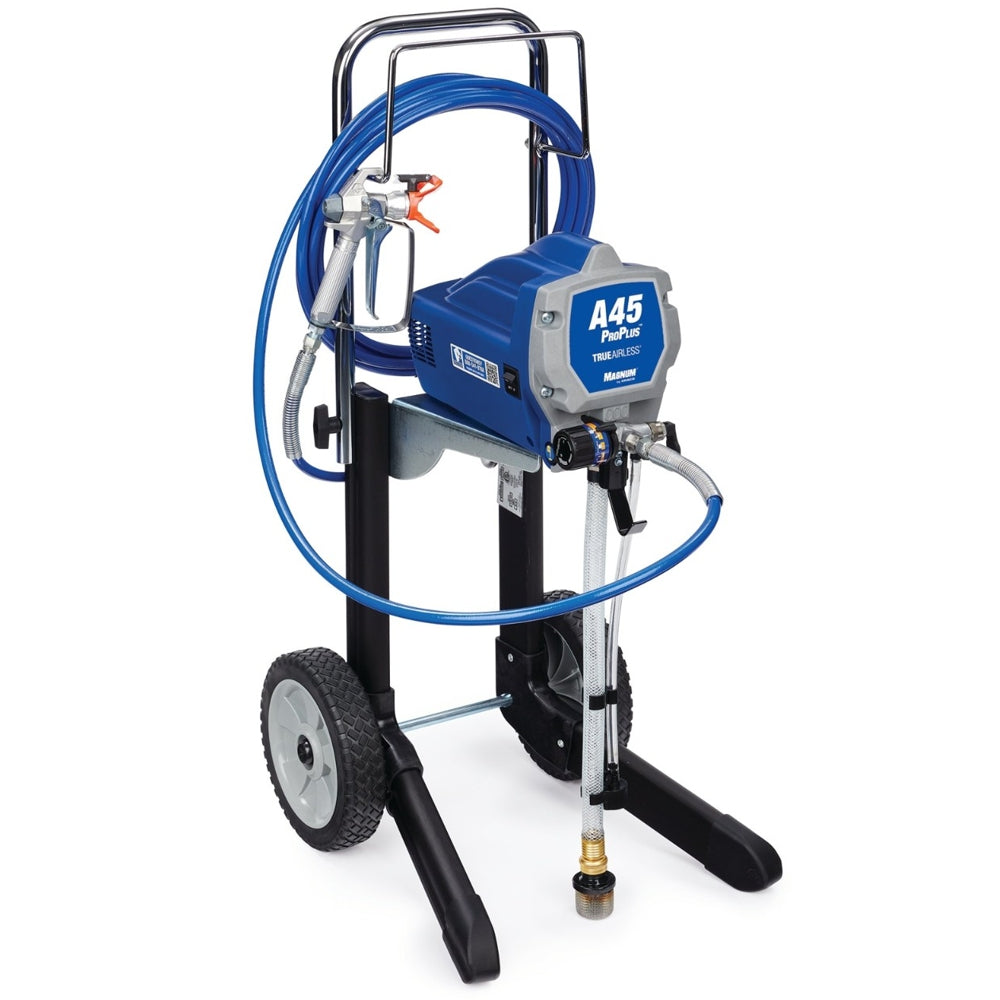

Magnum A45 ProPlus Electric Airless Sprayer
DIY homeowners can save time and money with the Magnum A45 ProPlus with built-in cart. It can tackle any midsized to large interior and exterior projects. The A45 ProPlus supports a larger tip size for spraying heavier coatings, such as façade paints, while the convenient cart makes any painting project faster and easier.
- Stainless Steel Piston Pump - Delivers high pressure power to spray products undiluted
Flexible Suction Tube - Spray directly from your paint bucket for midsized to large projects
- Convenient Cart - Easily move sprayer around on the job
- Paint Bucket Hook - Effortlessly move your paint bucket with the cart
- TrueAirless Spray Tip with SoftSpray Technology - Greater control and less overspray, with a wide range of coatings
- Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
- PushPrime - Fast and reliable start-up every time
- Adjustable Pressure Control - Easy control of paint flow
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017 |
| Engine Size (kW) | 0.47 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (cm) | 3,175 |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | SG3 spray gun, TrueAirless 515 spray tip, RAC5 spray tip guard, 1/4 in x 15 m DuraFlex hose, Pump Armor storage fluid (235 ml), garden hose connector, quick start-up guide and operating manual |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 1.17 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 30 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Tip Size (cm) | 0.043 |
| Maximum Tip Size (in) | 0.017 |
| Maximum Tip Size (mm) | 0.43 |
| Maximum Tip Size 1 Gun (cm) | 0.043 |
| Maximum Tip Size 1 Gun (in) | 0.017 |
| Maximum Working Pressure (MPa) | 21 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 1500 |
| Minimum Operating Temperature (°C) | 4 |
| Model | Magnum |
| Number of Guns | 1 |
| Overall Height (cm) | 94 |
| Overall Height (mm) | 939.8000 |
| Overall Length (cm) | 49 |
| Overall Length (mm) | 490.22 |
| Overall Width (cm) | 38.9 |
| Overall Width (mm) | 388.6200 |
| Phase | 1 |
| Power Cord Length (cm) | 180 |
| Power Cord Length (mm) | 1801.3680 |
| Power Rating (kW) | 0.46 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product series | View the household range |
| Pump Rod Type | Hardened stainless steel |
| Pump Sleeve Material | Stainless Steel |
| Recommended Annual Usage | 450 L |
| Region plug type | EU region (type C, E & F plug) |
| Series | A45 ProPlus |
| Spray Gun Type | SG3 - spray gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (kg) | 12.7 |
| Wetted Material | Stainless Steel, Brass, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, Zinc-Plated Carbon Steel, Aluminium, UHMWPE |
