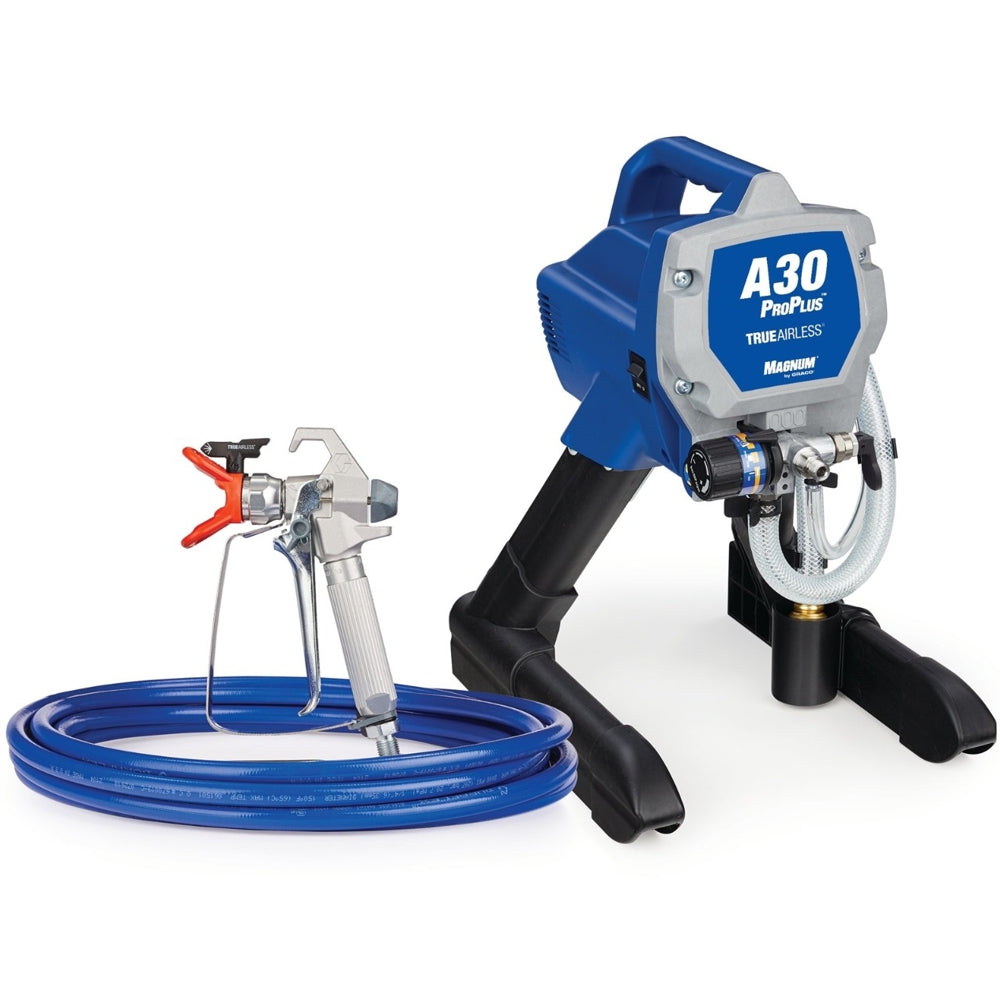

Magnum A30 ProPlus Electric Airless Sprayer
DIY homeowners get cost-efficient, high-speed performance with the Magnum A30 ProPlus. This airless sprayer is ideal for painting multiple midsized interior and exterior projects. Choose the A30 ProPlus to help you finish projects faster with the ability to spray in all directions.
- Stainless Steel Piston Pump - Delivers high pressure power to spray products undiluted
- Adjustable Pressure Control - Easy control of paint flow
Flexible Suction Tube - Spray directly from your paint bucket for small to midsized projects
- TrueAirless Spray Tip with SoftSpray Technology - Greater control and less overspray, with a wide range of coatings
- Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
- Compact Design - Stable, low profile with integrated paint bucket hook so everything can be carried together
- PushPrime - Fast and reliable start-up every time
| Compatible Material | Wood Stains, Opaque Wood Stains, Varnishes, Lacquers, Wood Paints, General Undercoats, Matt/Satin Wall/Ceiling Paints |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | SG3 spray gun, TrueAirless 515 spray tip, RAC5 spray tip guard, 1/4 in x 7.5 m DuraFlex hose, Pump Armor storage fluid (235 ml), garden hose connector, quick start-up guide and operating manual |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 1.02 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 22.5 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Tip Size (in) | 0.015 |
| Maximum Tip Size 2 Guns (in) | 0.057 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 1500 |
| Minimum Operating Temperature (°C) | 4 |
| Model | Magnum |
| Number of Guns | 1 |
| Overall Height (cm) | 45.5 |
| Overall Length (cm) | 36.8 |
| Overall Width (cm) | 31.5 |
| Power Cord Length (cm) | 180 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product series | View the household range |
| Pump Rod Type | Hardened stainless steel |
| Pump Sleeve Material | Stainless Steel |
| Recommended Annual Usage | 300 L |
| Region plug type | EU region (type C, E & F plug) |
| Series | A30 ProPlus |
| Spray Gun Type | SG3 - spray gun |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (kg) | 7.5 |
| Wetted Material | Stainless Steel, Brass, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, UHMWPE, Zinc-Plated Carbon Steel, Aluminium |
