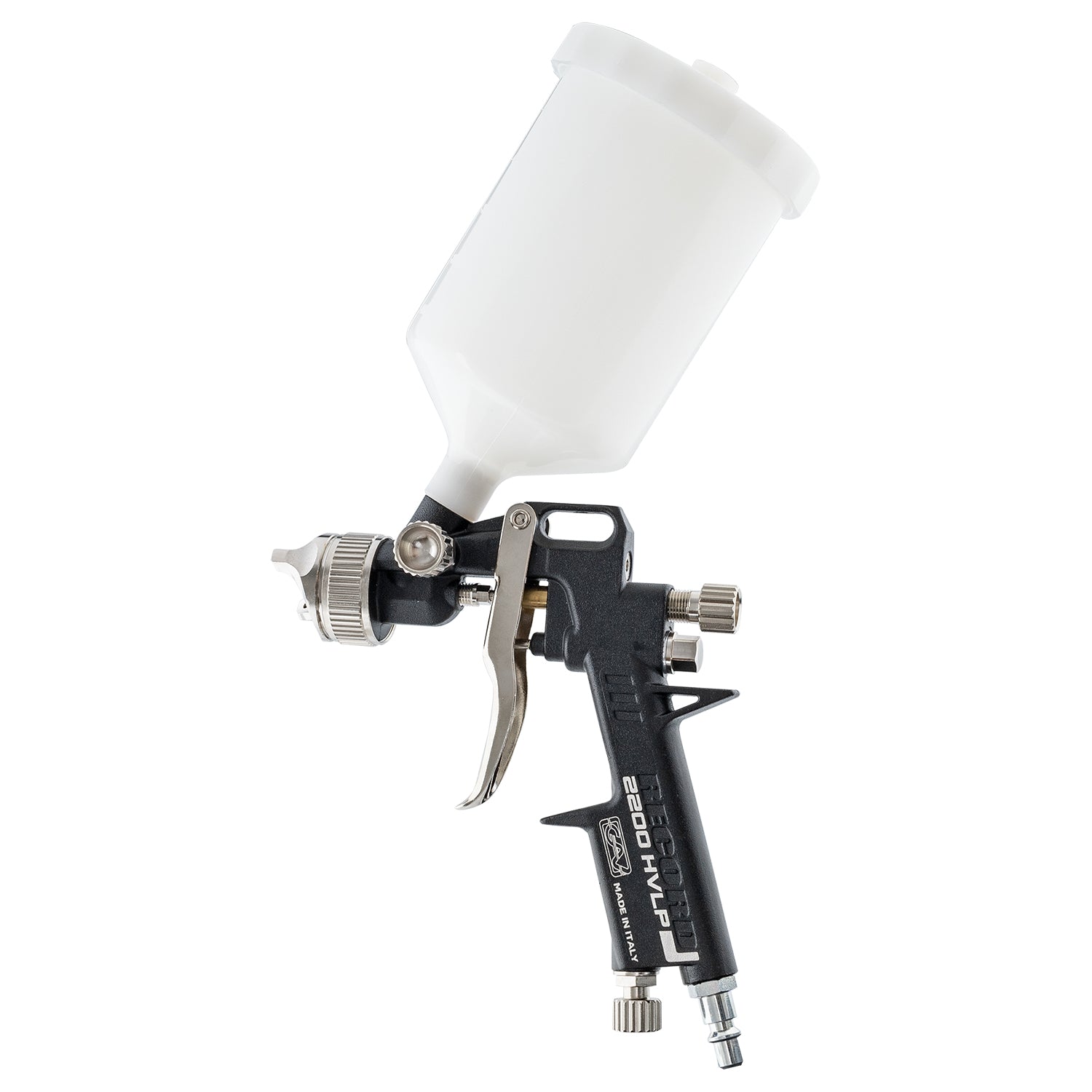

Gravity feed spray gun - HVLP
High Volume Low Pressure
The record HVLP is a spray gun with gravity cup from Gav. Its reservoir capacity is at 600 ml. This gun comes integrated with an air adjustment mechanism and works at pressures ranging from 2 up to 4 Bar. It consumes 350 to 450 l/min of air and is offered in nozzle diameters ranging from 1.2 up to 2.0 mm.
- Tank capacity: 600 cc
- Air consumption: 350-450 liters/min
- Working Pressure: 2-4 BAR
- Special features: Equipped with air regulation
- Coupling: Wide variety of fittings available (optional)
Made in Italy
1/4 inch BSP male thread
Features
- HVLP technology — maximises transfer efficiency while reducing overspray.
- Top-feed design — enables consistent paint flow and easier use with thick or thinned materials.
- Precision air-cap for clean, fine atomisation.
- Ergonomic, lightweight body for improved comfort and control.
- Suitable for detail work and broad finishing applications.
Benefits
- High transfer efficiency: Uses less paint to achieve perfect coverage.
- Cleaner working environment: Low overspray reduces mess around the workspace.
- Professional results: Produces smooth, even finishes with minimal texture.
- Easy to operate: Suitable for beginners and professionals needing consistent results.
Extra Information
- Compatible with automotive coatings, wood finishes, lacquers, stains, and water-based paints.
- Best performance achieved with a compressor providing steady airflow.
- Regular cleaning prevents nozzle blockage and ensures long-term accuracy.
Pro Tip
- For ultra-smooth finishes, maintain a consistent spray distance and apply multiple thin coats rather than one heavy pass.
Specifications
| Description | Spec |
|---|---|
| Brand | GAV |
| Cat No. | HVLP |
| Product Type | HVLP Spray Gun |
| Nozzle Size | Varies by model (commonly 1.4 mm) |
| Cup Capacity | 600 cc (upper cup) |
| Operating Pressure | Low pressure — HVLP system |
| Air Consumption | High volume airflow (compressor dependent) |
| Suitable Materials | Automotive paints, lacquers, varnishes, wood finishes, stains |
Safety
- Wear eye, ear and respiratory protection when spraying.
- Ensure good ventilation when using solvent-based coatings.
- Disconnect air supply before cleaning or changing nozzles.
- Refer to the SDS of the coating for safe handling instructions.
