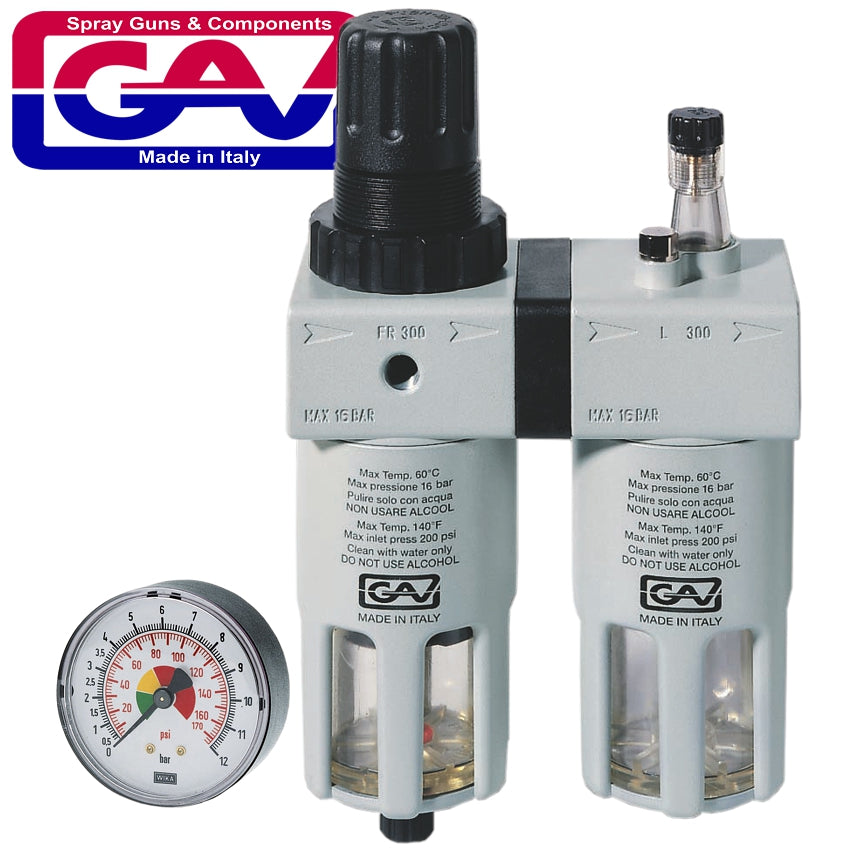

Modular
filter/regulator/lubricator
Type FRL300
- Regulator range: 0 - 12 Bar
- It has a maximum inlet pressure of 16 bar
- Filtration: 10 micron
- Maximum flow rate of 8000 Nl/min at 6 bar.
- Manometer included.
- Regulator with control knob with lock.
Made in Italy
1 inch BSP female thread both sides
Manometer included
Features
- Modular FRL system — filter, regulator and lubricator combined in one unit.
- Regulator range: 0–12 bar — versatile for multiple pneumatic applications.
- Maximum inlet pressure: 16 bar — suitable for high-pressure compressed air lines.
- 10 micron filtration — removes dust, moisture and impurities.
- High flow rate: 8000 Nl/min at 6 bar — supports demanding air tools.
- Manometer included — allows easy and accurate pressure monitoring.
- Pressure regulator with locking control knob to prevent accidental changes.
- Durable modular construction for workshop and industrial use.
Benefits
- Protects pneumatic tools: Clean, lubricated air extends tool lifespan.
- Improves performance: Consistent pressure ensures smooth, reliable operation.
- High airflow capacity: Suitable for multiple or high-demand tools.
- Enhanced control: Lockable regulator prevents pressure drift during use.
Extra Information
- The modular design allows sections to be separated for cleaning or maintenance.
- Regularly check the lubricator reservoir to maintain proper oil delivery.
- Mount the FRL unit as close as possible to air-consuming tools for best results.
Pro Tip
- Set the lubricator to deliver only a light mist — too much lubrication can contaminate surfaces, especially when spraying paints or coatings.
Specifications
| Description | Spec |
|---|---|
| Brand | GAV |
| Cat No. | FRL300 |
| Product Type | Modular Filter / Regulator / Lubricator |
| Regulator Range | 0 – 12 bar |
| Maximum Inlet Pressure | 16 bar |
| Filtration Rating | 10 micron |
| Maximum Flow Rate | 8000 Nl/min @ 6 bar |
| Manometer | Included |
| Regulator Feature | Lockable control knob |
| Thread | 1 inch BSP Female |
