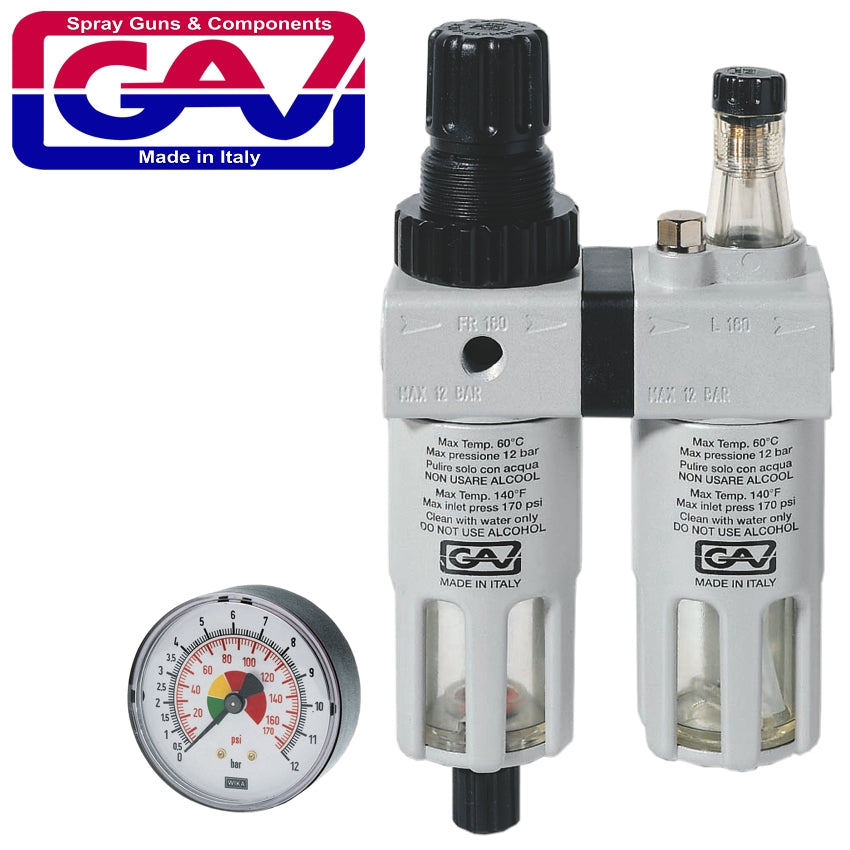

Modular
filter/regulator/lubricator
Type FRL180
- Regulator range: 0 - 10 Bar
- It has a maximum inlet pressure of 12 bar
- Filtration: 10 micron
- Maximum flow rate of 1800 Nl/min at 6 bar.
- Manometer included.
- Regulator with control knob with lock.
Made in Italy
1/4 inch BSP female thread both sides
Manometer included
Features
- 3-in-1 air preparation unit — filter, regulator and lubricator combined.
- 1/4' BSP connections — suitable for most pneumatic tools and hoses.
- Integrated pressure regulator — ensures stable and controlled air pressure.
- Lubricator unit — supplies controlled oil mist to air tools.
- Transparent bowls for easy inspection of moisture and oil levels.
- Supplied with a pressure gauge for accurate monitoring.
Benefits
- Complete protection: Clean, regulated and lubricated air extends tool life.
- Improved tool performance: Correct pressure and lubrication ensure smooth operation.
- Compact solution: Saves space by combining three functions into one unit.
- Reduced maintenance: Prevents moisture damage and internal tool wear.
Extra Information
- Ideal for air tools such as ratchets, impact wrenches and air motors.
- Install as close as possible to the point of use for best results.
- Use pneumatic tool oil only in the lubricator.
Pro Tip
- Set the regulator pressure while air is flowing to achieve the true working pressure.
- Adjust the lubricator drip rate gradually — a little oil goes a long way.
- Drain the filter bowl regularly to maintain clean airflow.
- Lock the regulator knob after setting to prevent accidental pressure changes.
Specifications
| Description | Spec |
|---|---|
| Brand | GAV |
| Cat No. | FRL180 |
| Product Type | Filter / Regulator / Lubricator |
| Connection Size | 1/4' BSP |
| Maximum Working Pressure | 12 bar |
Safety
- Depressurise the air system before installation or servicing.
- Install vertically to ensure correct filtration and lubrication.
- Use only approved pneumatic tool oil in the lubricator.
- Do not exceed the maximum rated operating pressure.
