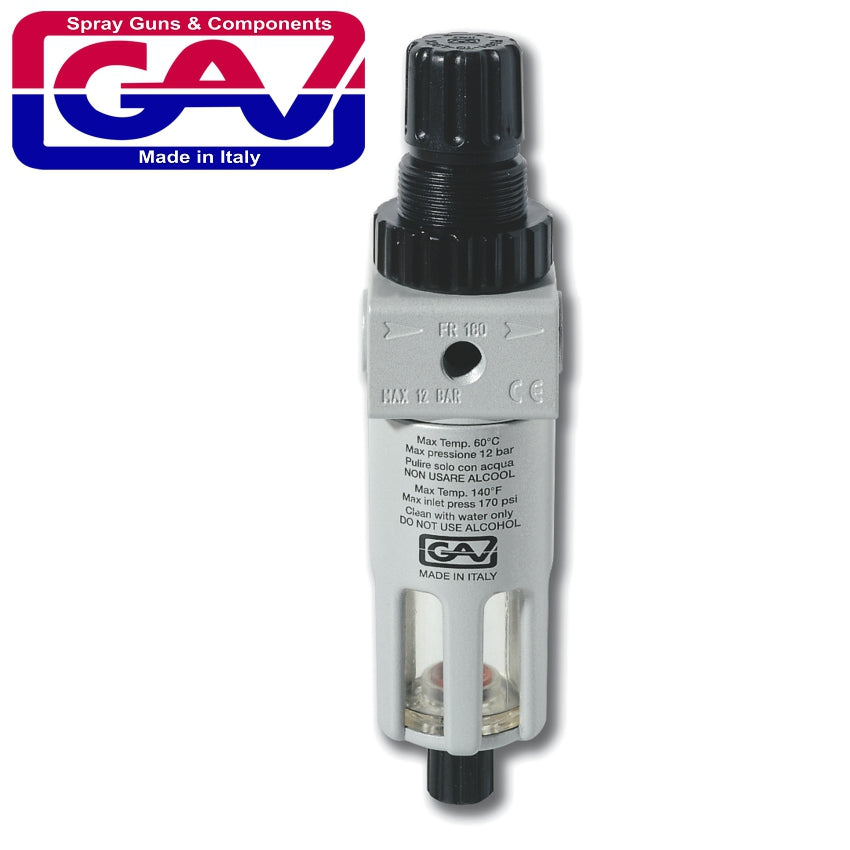

Pressure
filter regulator for compressed air
Type FR180 (10 Bar)
The FR180 Compressed Filter Regulator is a tool designed to filter and regulate air flow with jettisoning and protection cup.
- The cup has a fluid capacity if 30 ml.
- Range of regulator: 0 - 10 Bar
- It has a maximum inlet pressure of 12 Bar and a
- filtering of 10 micron.
- Moreover, this compressed filter has a maximum working pressure of 1800 Nl/min at 6 bar.
- Adjustment knob with lock.
Made in Italy
1/4 inch BSP female thread both sides
Features
- Integrated filter and regulator — cleans and regulates air in one unit.
- 1/4' BSP connections — compatible with most pneumatic tools and hoses.
- Pressure regulation up to 12 bar — suitable for workshop air systems.
- Transparent bowl for easy inspection of moisture and contaminants.
- Adjustable regulator with locking control knob to prevent accidental changes.
Benefits
- Protects equipment: Clean, regulated air extends tool and spray gun life.
- Consistent performance: Stable pressure improves tool efficiency and finish quality.
- Compact and convenient: Ideal for point-of-use installation.
- Reduced maintenance: Prevents moisture-related wear and failures.
Extra Information
- Best installed close to the tool or spray gun for maximum effectiveness.
- Install vertically to ensure proper moisture separation.
- Drain condensate regularly to maintain filtration efficiency.
Pro Tip
- Set the regulator pressure while air is flowing — this ensures accurate pressure at the tool.
- Use an additional inline mini filter at the spray gun for critical finishing work.
- Lock the regulator knob after setting to avoid accidental pressure changes during use.
- Check and drain the bowl frequently in humid environments.
Specifications
| Description | Spec |
|---|---|
| Brand | GAV |
| Cat No. | FR180 |
| Product Type | Inline Filter / Regulator |
| Connection Size | 1/4' BSP |
| Maximum Working Pressure | 12 bar |
Safety
- Depressurise the air line before installation or maintenance.
- Ensure correct airflow direction as marked on the housing.
- Do not exceed the maximum rated operating pressure.
