Pressure
filter for compressed air
Type F300 (16 Bar)

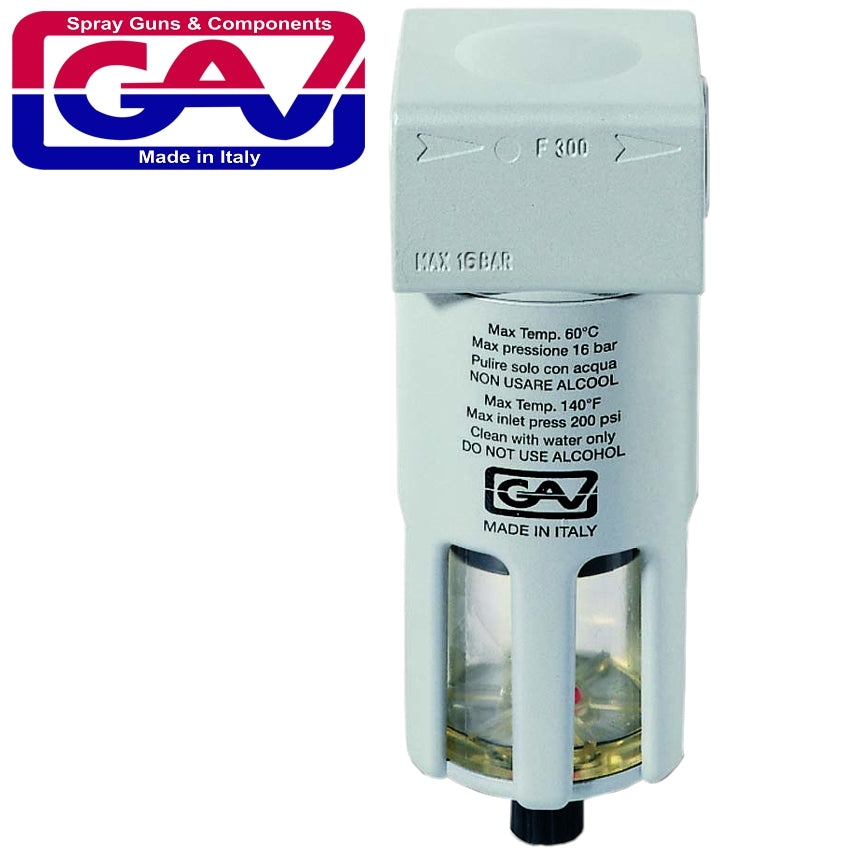

The F-300 Compressed Filter is a tool designed with jettisoning and protection cup.
- The cup has a fluid capacity if 150 ml.
- It has a maximum inlet pressure of 16 bar and a
- filtering of 10 micron.
- Moreover, this compressed filter has a maximum working pressure of 9000 Nl/min or 6 bar.
Made in Italy
1 inch BSP female thread both sides
Features
- Inline air filter with water trap — removes moisture and solid contaminants from compressed air.
- 1' BSP connections — supports very high airflow requirements.
- Maximum working pressure: 16 bar — suitable for industrial air systems.
- Transparent bowl for easy visual inspection of condensate.
- Robust housing designed for heavy-duty and continuous use.
Benefits
- Protects equipment: Prevents corrosion, wear and moisture-related failures.
- Improves system reliability: Ensures consistent, clean air supply.
- High-flow performance: Ideal for main supply lines and large pneumatic installations.
- Easy maintenance: Quick visual check of moisture levels.
Extra Information
- Designed for installation on main compressed-air lines.
- Install vertically to ensure effective water separation and drainage.
- Drain condensate regularly to maintain optimal performance.
Pro Tip
- Install the F300 immediately after the compressor receiver to protect the entire air network.
- Pair with a downstream FRL unit for pressure regulation and tool lubrication.
- In high-humidity environments, schedule regular condensate draining to prevent carry-over.
- Ensure the airflow direction follows the arrow marked on the housing.
Specifications
| Description | Spec |
|---|---|
| Brand | GAV |
| Cat No. | F300 |
| Product Type | Inline Air Filter / Water Trap |
| Connection Size | 1' BSP |
| Maximum Working Pressure | 16 bar |
Safety
- Depressurise the air system before installing or servicing the filter.
- Install vertically for correct water separation.
- Do not exceed the maximum rated operating pressure.
