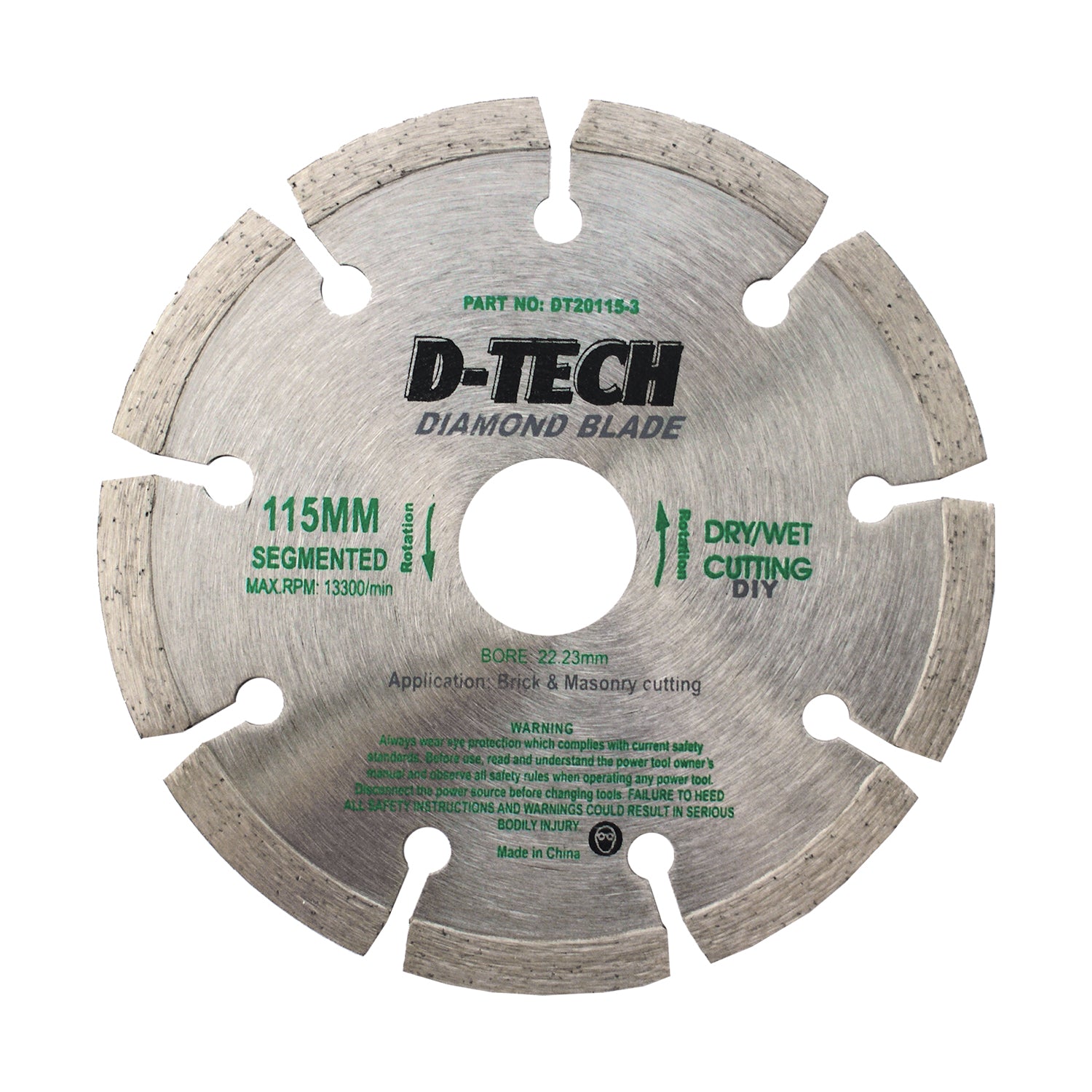

Segmented Diamond Blade
Diameter: Ø115mm
Arbor: Ø22.23mm
Body Thickness: 1.0mm
The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.
The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.
Segmented blades are the best option when water isn't available. The blades are durable and have a long life compared to other blades.
Application:
- Hard density low abrasive materials such as cured concrete, stone, hard bricks.
Features
- Segmented rim design which improve debris clearance.
- Gullets on the body to dissipate heat.
- Increased durability and long blade life.
- Can be used for dry and wet cutting.
Diamond Blade Tips
| Description | Specification |
| Packaging Type | Hanging Card |
| Product Dimensions | 133(L) x 153(W) x 3(H)mm |
| Product Weight | 100g |
| Diameter | Ø115mm |
| Arbor | Ø22.23mm |
| Body Thickness | 1.0mm |
| Segment Height | 8mm |
| Segment Length | 35mm |
| Segment Thickness | 2.1mm |
| MAX RPM | 13 300 |
