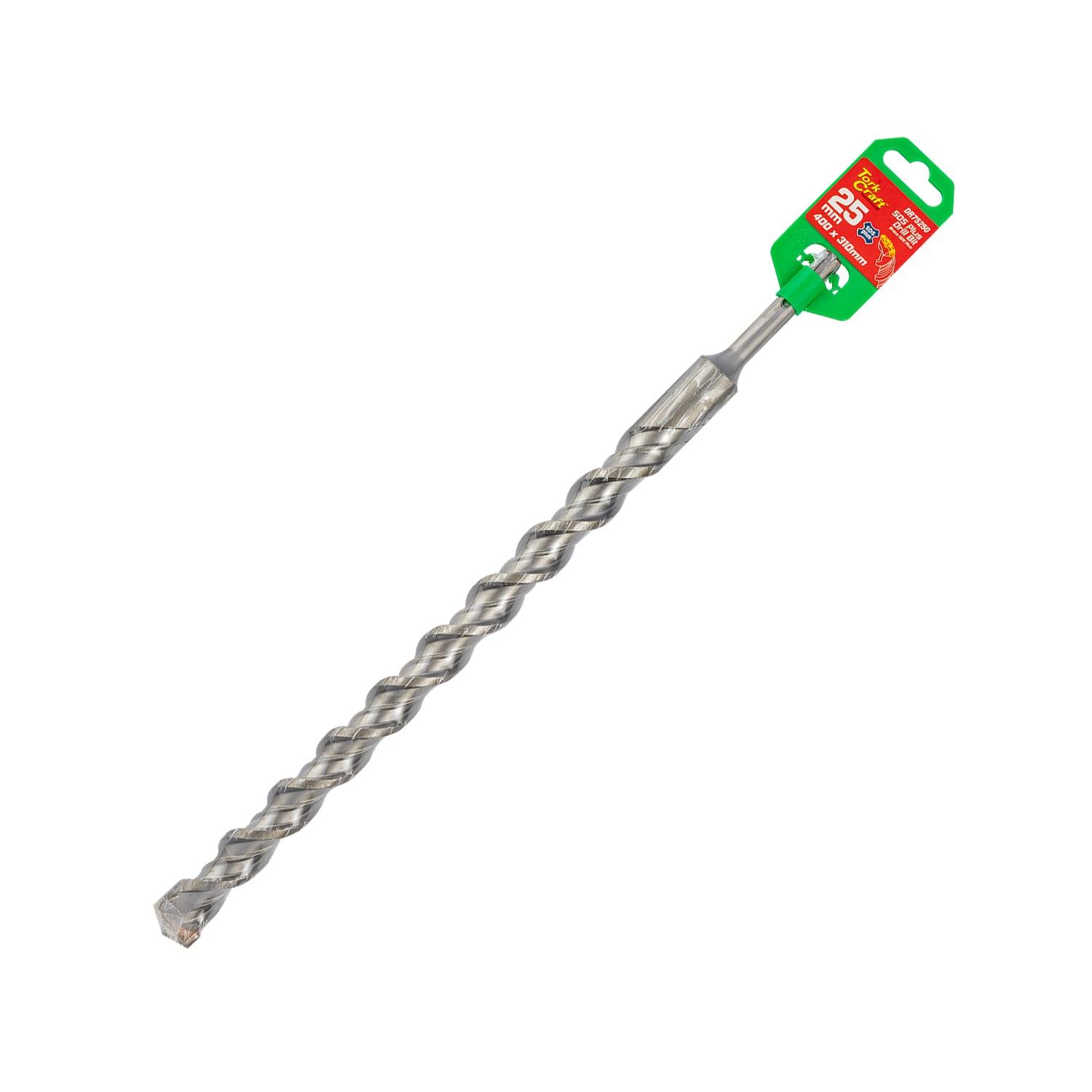

SDS PLUS DRILL BIT 400X310 25.0MM
Features
- 25.0 mm cutting diameter — for large anchor cages, sleeves, or conduit passages.
- 400 mm overall / 310 mm working length — extended reach for thick walls and deep installations.
- SDS-Plus shank offers secure lock-in and quick bit changes.
- Carbide tip built for abrasion resistance and longevity in tough materials.
- Flute geometry ensures effective dust removal in deep drilling operations.
Benefits
- Structural depth: can handle thick wall penetrations or structural anchor holes without extension rods.
- Stable operation: SDS design helps avoid slipping or misalignment under heavy hammering.
- Long service life: engineered carbide tip resists wear in harsh masonry environments.
Extra Information
- Use hammer + rotary mode — not suitable for standard rotary-only drilling.
- Retract the bit periodically to clear dust and maintain cutting speed.
- Apply steady, moderate pressure — let the hammer action do the work.
Pro Tip
- Use compressed air or vacuum to clear dust during drilling, especially in long holes.
- Initially feed gently to seat the bit before ramping up feed—improves alignment over depth.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR75250 |
| Product Type | SDS-Plus masonry drill bit |
| Diameter | 25.0 mm |
| Overall Length | 400 mm |
| Working Length | 310 mm |
| Shank Type | SDS-Plus |
| Tip Material | Carbide |
| Pack Quantity | 1 bit per unit |
Safety
- Wear eye, ear and dust protection while drilling with rotary hammers.
- Ensure the workpiece or wall is stabilized before drilling.
- Feed evenly—do not force the bit into the material.
- Inspect the carbide tip before each use — replace if chipped or worn.
