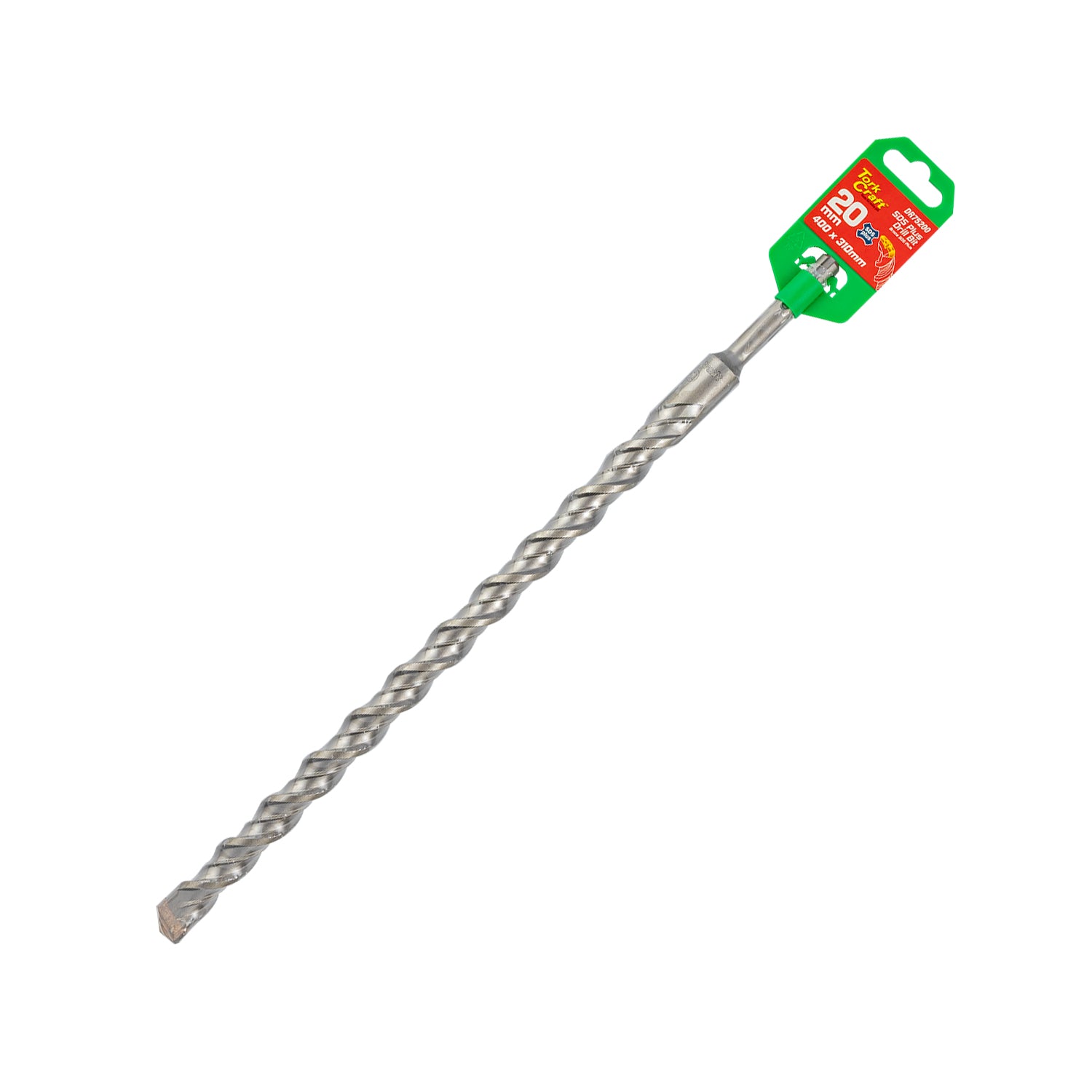

SDS PLUS DRILL BIT 400X310 20.0MM
Features
- 20.0 mm cutting diameter — suited for large anchors, sleeves, conduits and structural penetrations.
- 400 mm overall / 310 mm working length — designed for thick construction and deep embedments.
- SDS-Plus shank for secure engagement and quick bit changes.
- Carbide tip engineered for durability and performance in cementitious materials.
- Flutes optimized for efficient dust removal over longer lengths.
Benefits
- Deep drilling capability: handles thick walls and deep installations without the need for extension rods.
- Stable operation: SDS locking reduces slip and drift under heavy hammer action.
- Long-lasting tip performance: carbide construction resists wear even in abrasive substrates.
Features
- 20.0 mm cutting diameter — suited for large anchors, sleeves, conduits and structural penetrations.
- 400 mm overall / 310 mm working length — designed for thick construction and deep embedments.
- SDS-Plus shank for secure engagement and quick bit changes.
- Carbide tip engineered for durability and performance in cementitious materials.
- Flutes optimized for efficient dust removal over longer lengths.
Benefits
- Deep drilling capability: handles thick walls and deep installations without the need for extension rods.
- Stable operation: SDS locking reduces slip and drift under heavy hammer action.
- Long-lasting tip performance: carbide construction resists wear even in abrasive substrates.
Extra Information
- Operate in hammer + rotary mode — standard rotary mode is not suitable.
- Retract occasionally to clear dust and maintain cutting efficiency.
- Apply steady feed pressure — let hammer action do the work, don’t force the bit.
Pro Tip
- Use compressed air or vacuum to remove dust from the hole periodically—the deeper the hole, the more crucial dust management becomes.
- Start with light pressure to align and seat the bit before applying full force—this helps minimize drift over long depth.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR75200 |
| Product Type | SDS-Plus masonry drill bit |
| Diameter | 20.0 mm |
| Overall Length | 400 mm |
| Working Length | 310 mm |
| Shank Type | SDS-Plus |
| Tip Material | Carbide |
| Pack Quantity | 1 bit per unit |
Safety
- Wear eye, ear and dust protection when operating rotary hammers.
- Ensure the workpiece is firmly fixed before drilling.
- Feed steadily — avoid forcing the bit, especially with large diameters.
- Check the carbide tip before use and replace if chipped or excessively worn.
Product Tags
tork craft, DR75200, SDS-Plus bit, 20 mm, deep masonry drilling, concrete bit, 400×310 mm
