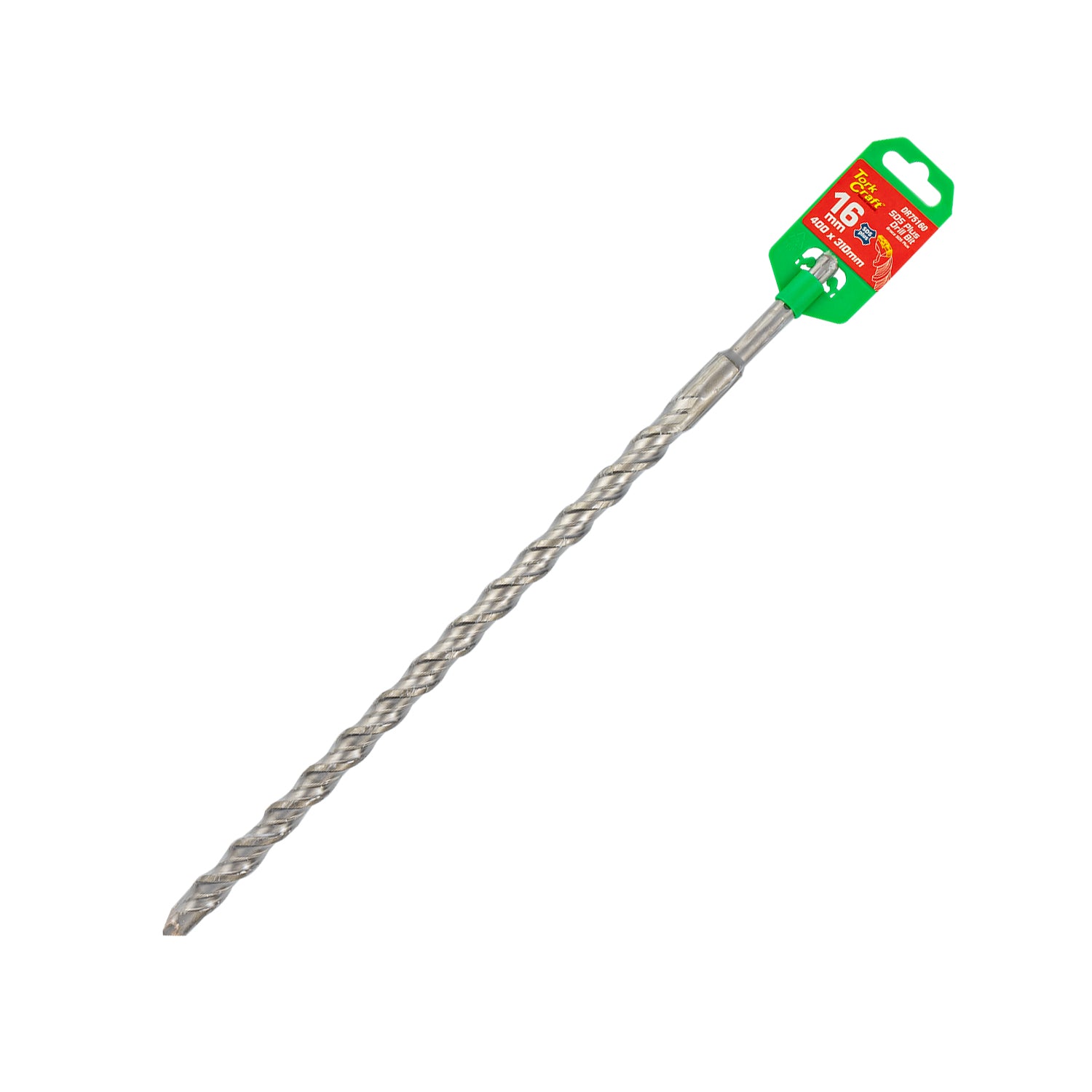

SDS PLUS DRILL BIT 400X310 16.0MM
Features
- 16.0 mm cutting diameter — suitable for mid-to-large applications like heavy anchors or conduits.
- 400 mm overall / 310 mm working length — long reach for thick structures and deep mounts.
- SDS-Plus shank ensures quick changes and secure retention under hammer action.
- Carbide tip for durable performance in abrasive masonry materials.
- Flute design optimized for effective dust extraction during long hole drilling.
Benefits
- Extended reach: ideal for deep penetrations without extension rods.
- Stable drilling: SDS interface maintains grip and alignment under load.
- Long-lasting: carbide tip engineered for repeated use in tough substrates.
Extra Information
- Use hammer + rotation mode — not suited for pure rotary-only operation.
- Periodically retract the bit to clear dust and reduce heat buildup.
- Apply consistent force — let hammer action drive the bit rather than overpowering it.
Pro Tip
- Use air or vacuum extraction mid-drill to maintain cutting efficiency and prevent clogging.
- Start with light pressure to seat the tip, then increase feed once stabilized — helps maintain alignment in deep holes.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR75160 |
| Product Type | SDS-Plus masonry drill bit |
| Diameter | 16.0 mm |
| Overall Length | 400 mm |
| Working Length | 310 mm |
| Shank Type | SDS-Plus |
| Tip Material | Carbide |
| Pack Quantity | 1 bit per unit |
Safety
- Wear eye, ear and dust protection while using rotary hammer drills.
- Secure the workpiece firmly to prevent vibration or slippage.
- Feed steadily — do not force the bit into material.
- Examine the carbide tip before every use and replace if damaged or chipped.
