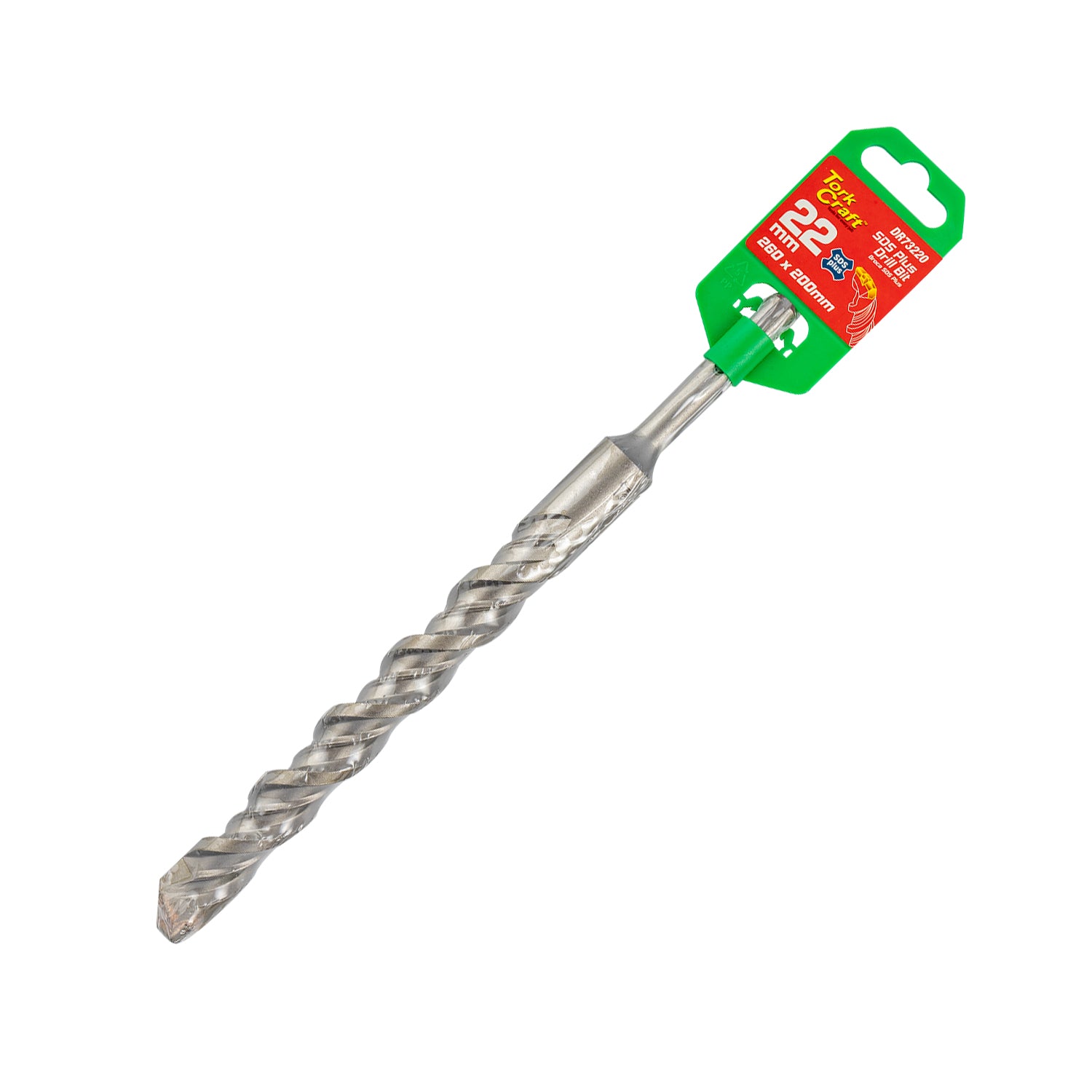

SDS PLUS DRILL BIT 260X200 22MM
Features
- 22.0 mm cutting diameter — suitable for large anchors or conduit holes.
- 260 mm overall / 200 mm working length — effective for penetrating thick structures.
- SDS-Plus shank ensures fast, secure bit changes in hammer drills.
- Carbide tip optimized for hard material drilling.
- Heavy-duty flute design for improved debris removal in deep holes.
Benefits
- Deep reach: handles thick walls and deep anchor embedment without extension rods.
- Reliable stability: SDS grip reduces bit slip and wobble under load.
- Long tip life: carbide tip resists wear during repeated use in abrasive conditions.
Extra Information
- Operate in hammer + rotary mode (not in plain drill mode).
- Retract occasionally to clear dust and reduce bit heating.
- Feed steadily — avoid sudden changes in pressure.
Pro Tip
- Pre-blow or vacuum dust from the hole often to maintain cutting efficiency.
- Start shallow to align, then proceed confidently — this helps reduce drift in deeper sections.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR73220 |
| Product Type | SDS-Plus masonry drill bit |
| Diameter | 22.0 mm |
| Overall Length | 260 mm |
| Working Length | 200 mm |
| Shank Type | SDS-Plus |
| Tip Material | Carbide |
| Pack Quantity | 1 bit per unit |
Safety
- Wear eye, ear, and dust protection while using rotary hammers.
- Secure the drill and workpiece firmly.
- Feed steadily — don’t force the bit.
- Inspect the carbide tip before each use; replace if damaged or chipped.
