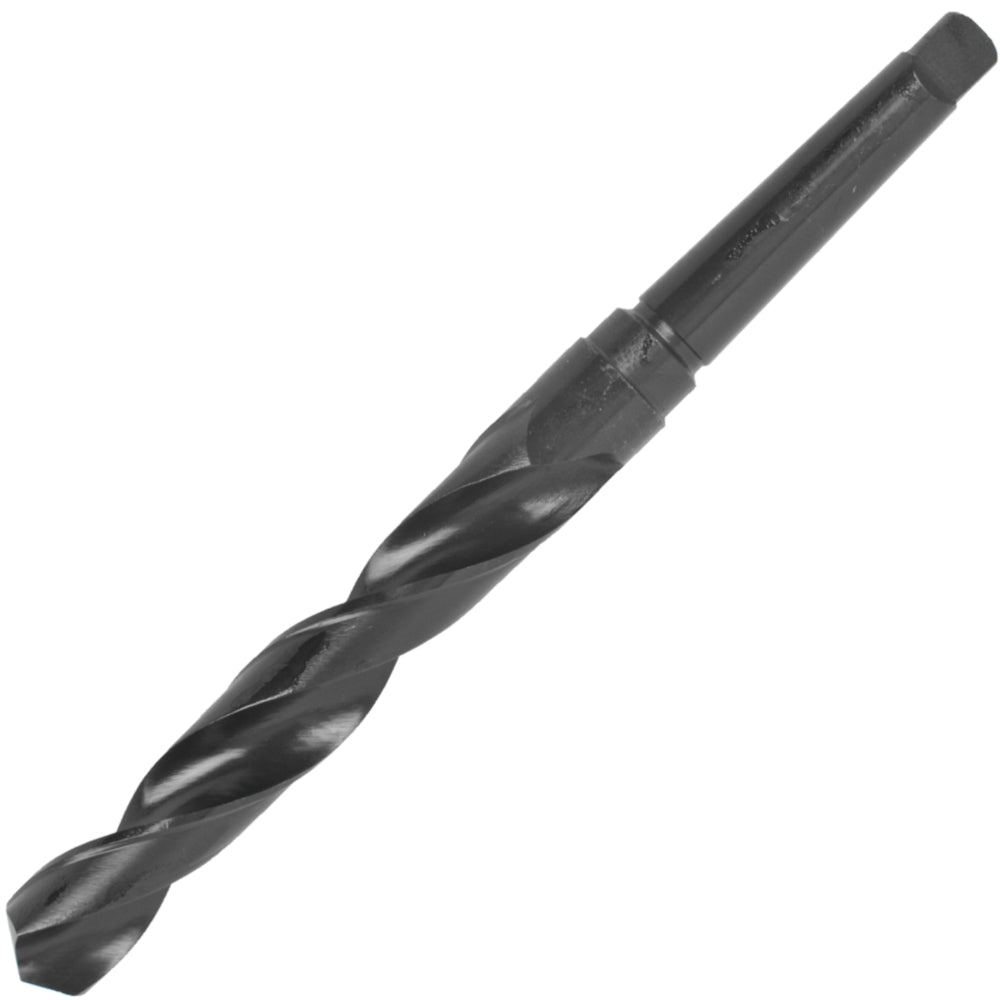

DRILL BIT HSS MORSE TAPER 23MM X MT2
Features
- 23.0 mm cutting diameter, for large-bore holes.
- Morse Taper 2 (MT2) shank for direct taper mounting.
- HSS construction delivers strength, wear resistance and performance.
- Precision twist flutes for smooth chip evacuation and consistent cutting.
- Supplied individually (1 bit per card).
Benefits
- Direct taper fit: no adapter needed for MT2-compatible machines.
- Industrial strength: built for repeated, heavy-duty drilling.
- High accuracy: taper mounting helps reduce run-out and improve hole quality.
Extra Information
- Use cutting fluid when drilling ferrous metals to reduce heat and wear.
- Select appropriate spindle speeds—slower on harder materials.
- Ensure taper and socket surfaces are clean before mounting to maintain a precise seat.
Pro Tip
- Always wipe both the drill bit taper and the socket clean before insertion to avoid slippage or misalignment.
- On deep holes, retract periodically to clear chips and manage temperature buildup.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR50230 |
| Product Type | Twist drill bit (HSS) with Morse taper shank |
| Diameter | 23.0 mm |
| Shank Type | Morse Taper 2 (MT2) |
| Material | High-speed steel (HSS) |
| Pack Quantity | 1 bit / card |
| Applications | Machine drilling in steel, cast iron, aluminium, plastics, fabrication and workshop use |
Safety
- Wear eye protection when drilling.
- Clamping the workpiece is essential to avoid movement.
- Feed steadily — do not force the bit.
- Verify taper seating before applying full load to prevent misalignment or slippage.
