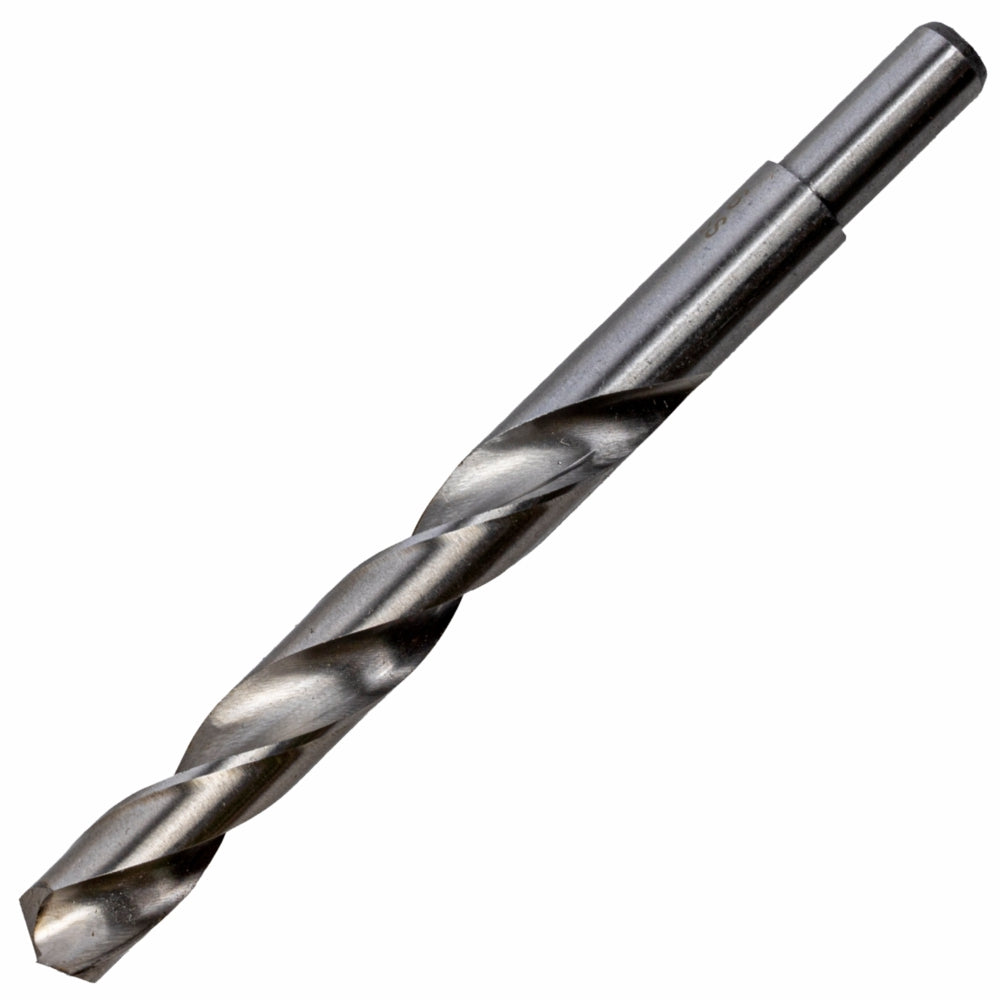

DRILL HSS 17.0 MM 135DEG 1/CARD REDUCED SHANK INDUSTRIAL BIT
Features
- 17.0 mm cutting diameter for large, precise hole drilling.
- 135° split point self-centers and eliminates walking for faster starts.
- Reduced shank design allows use with standard 13 mm drill chucks.
- HSS construction for exceptional durability, edge retention and accuracy.
- Polished flutes enable smooth chip evacuation and cooler cutting.
Benefits
- Accuracy: split point improves control and alignment when drilling metal.
- Versatility: compatible with common drill chucks and handheld machines.
- Performance: cuts cleanly and resists dulling under load.
Extra Information
- Use cutting fluid when drilling steel to reduce heat and friction.
- Reduce drill speed for harder materials; increase slightly for wood or plastics.
- Ensure the workpiece is firmly clamped for accuracy and safety.
Pro Tip
- Mark the hole position with a center punch for cleaner starts.
- When drilling deeper holes, peck-drill to clear chips and avoid overheating the bit.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR20170 |
| Product Type | Industrial twist drill bit (HSS) |
| Diameter | 17.0 mm |
| Tip Angle | 135° split point |
| Shank Type | Reduced shank (fits 13 mm chucks) |
| Material | High-speed steel (HSS) |
| Pack Quantity | 1 bit / card |
| Applications | Steel, cast iron, aluminium, plastic, general fabrication |
Safety
- Wear eye protection at all times when drilling.
- Secure workpiece using clamps or a vice before starting.
- Allow the drill to reach full speed before engaging material.
- Do not force the bit — apply steady, controlled pressure.
