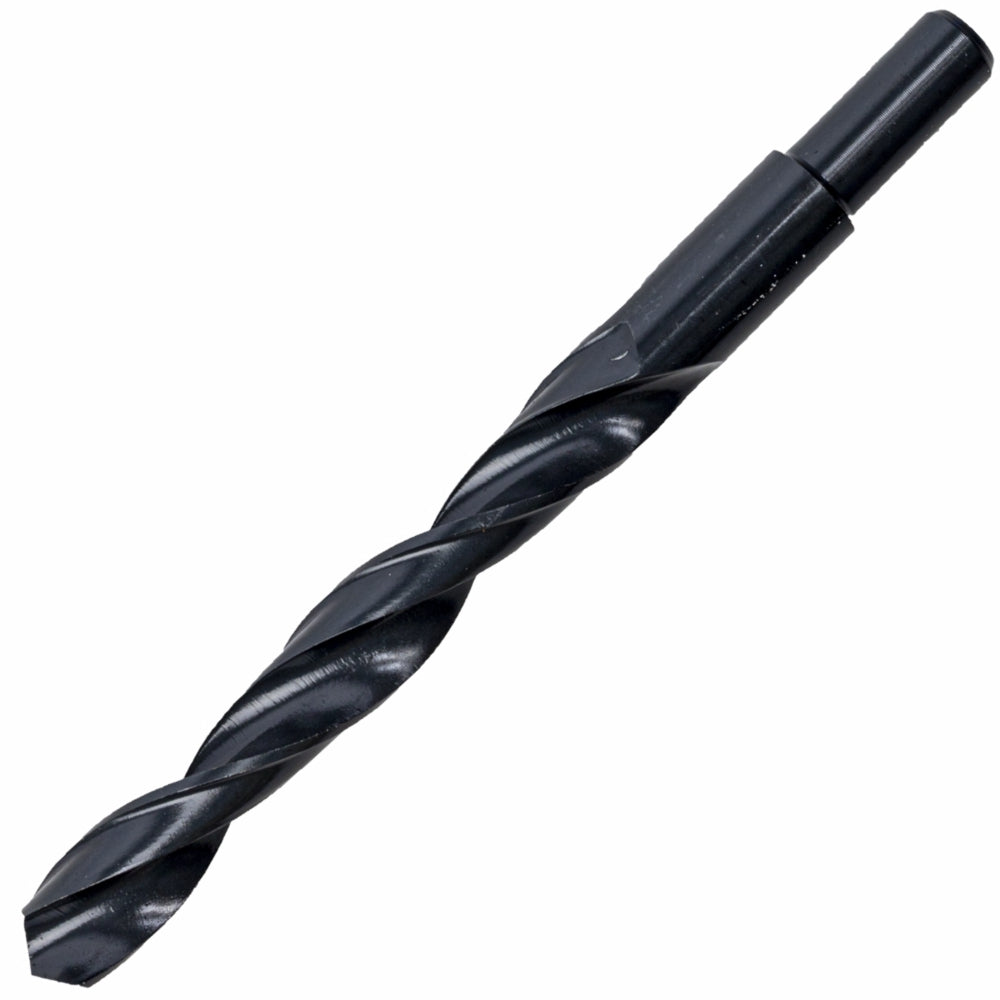

DRILL BIT HSS STANDARD 17.0MM REDUCED SHANK 1/CARD
Features
- Cutting diameter: 17.0 mm
- Reduced shank for usability in smaller chucks
- High-speed steel construction for toughness and edge retention
- Twist/flute geometry for chip evacuation
- Single, carded unit
Benefits
- Allows using large bore bits even if the chuck cannot grip full size
- Solid performance in metalwork, fabrication, and general workshop needs
- Stable cutting with minimal deflection despite the reduced section
Extra Information
- Ensure the reduced shank is fully gripped by the chuck to avoid slippage
- Use lower speeds for metal and tougher materials to reduce heat
- Periodically withdraw during deep drilling to clear chips and maintain temperature control
Pro Tip
- Begin with a pilot hole or center punch to minimize drift when starting
- Check bit run-out after mounting — even small misalignments amplify at large diameter
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | DR10170 |
| Product Type | Twist drill bit (HSS, reduced shank) |
| Diameter | 17.0 mm |
| Shank Type | Reduced shank |
| Material | High-speed steel (HSS) |
| Typical Use | Fabrication, metal work, mechanical drilling |
Safety
- Wear eye protection when drilling
- Ensure firm chuck grip on the reduced shank to avoid slippage
- Use steady feed — do not force the bit
- Clamp or secure the workpiece to prevent movement
- Ensure drill is at correct speed before start
