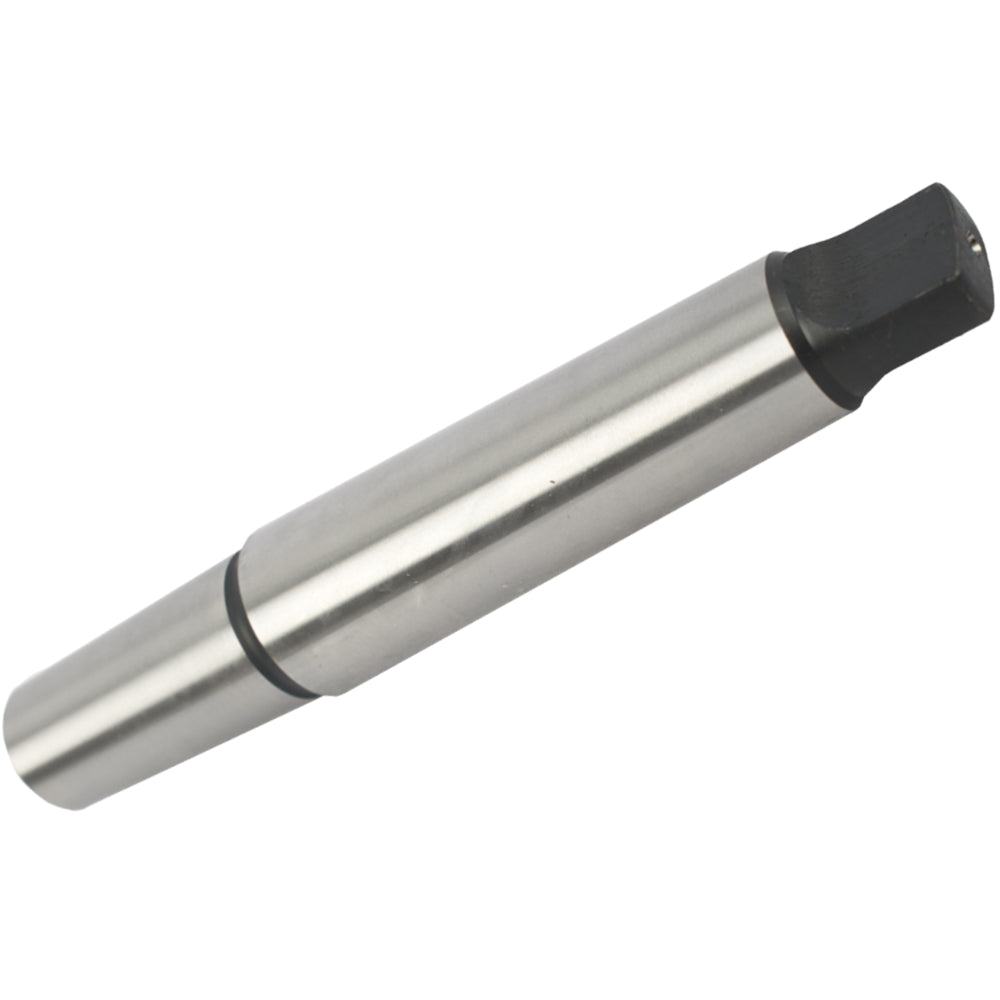

Tork Craft Taper Adaptor — MT3 to B22 (Morse → B-taper)
Adapt machines with an MT3 (Morse Taper #3) spindle to accept B22 taper-mount drill chucks. This hardened, precision-ground adaptor provides concentric seating for smooth, accurate drilling on drill presses, lathe tailstocks and milling machines in drill mode.
Features
- Conversion: MT3 male shank → B22 male taper for B22-bore chucks.
- Precision-ground tapers to minimize run-out and improve accuracy.
- Hardened steel construction for durability under workshop use.
- Smooth seating surfaces for reliable fit and easy release.
- Industry-standard geometry compatible with common machines and arbors.
Benefits
- Versatility: mount B22 drill chucks on MT3 machines without changing arbors.
- Accuracy: concentric fit improves hole quality and tool life.
- Fast setup: simple press-fit install; no special tools required for assembly.
Extra Information
- Clean and degrease both tapers before assembly; debris reduces holding power.
- Seat the chuck with firm hand pressure on a solid surface—avoid striking the chuck body.
- Remove using the machine’s eject feature or the correct taper drift/wedge.
Pro Tip
- Add a small witness mark across adaptor and chuck; reassembling in the same orientation can help preserve best concentricity.
- If insertion feels rough, lightly stone only raised burrs—never sand or file the precision seating surfaces.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | CMMT3-3 |
| Product Type | Taper adaptor |
| Machine Side (Input) | MT3 (Morse Taper #3), male |
| Chuck Side (Output) | B22, male |
| Material | Hardened, precision-ground steel |
| Finish | Ground, smooth seating surfaces |
| Typical Uses | Adapting B22 drill chucks to MT3 drill presses, lathe tailstocks, mills (drill mode) |
Safety
- Disconnect power before installing or removing adaptors/chucks.
- Ensure tapers are fully seated; avoid side-loading small drills.
- Use in rotary drilling only—do not use hammer/impact with taper-mounted chucks.
- Wear eye protection and secure the workpiece.
