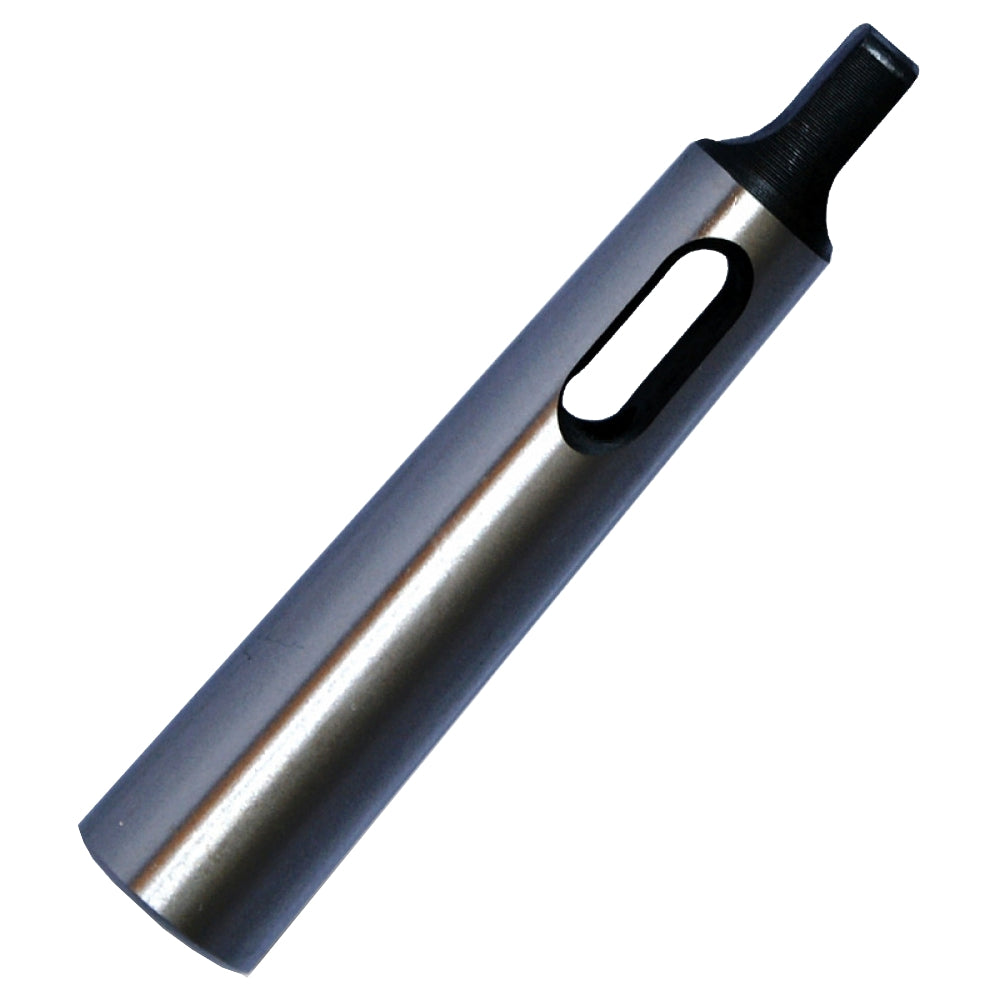

Tork Craft Morse Taper Sleeve — MT3 to MT2
Adapt your MT3 machine spindle to accept MT2 tooling. This Morse Taper sleeve (MT3 → MT2) is precision-ground and hardened for accurate, concentric seating of arbors, drill chucks and centers on drill presses, lathes (tailstocks) and mills in drilling mode.
Features
- Reduction sleeve: converts MT3 female spindle to MT2 female bore.
- Precision-ground tapers for low run-out and reliable repeatability.
- Hardened steel construction for durability in workshop environments.
- Smooth finish for clean seating and easy release.
- Industry-standard Morse geometry for wide tooling compatibility.
Benefits
- Versatility: run MT2 accessories (chucks, centers, arbors) on MT3 machines.
- Accuracy: concentric fit helps improve hole quality and surface finish.
- Convenience: quick tool changes without swapping the machine arbor.
Extra Information
- Clean and degrease both the spindle and sleeve before installation to maximize holding power.
- Seat by hand pressure on a solid support; avoid hammering on precision surfaces.
- Remove using the machine’s eject feature or a correct taper drift where applicable.
Pro Tip
- Mark a small witness line across spindle, sleeve and tool shank; reassembling to the same orientation can help preserve best concentricity.
- If insertion feels rough, lightly stone only raised burrs—never sand or file the taper surfaces.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | CMMT3-2 |
| Product Type | Morse Taper reduction sleeve |
| Machine Side (Outer) | MT3 (Morse Taper #3) |
| Tool Side (Inner) | MT2 (Morse Taper #2) |
| Material | Hardened, precision-ground steel |
| Finish | Ground, smooth seating surfaces |
| Typical Uses | Adapting MT2 tooling to MT3 drill presses, lathes (tailstock), mills (drill mode) |
Safety
- Disconnect power before fitting or removing sleeves, chucks or arbors.
- Ensure tapers are fully seated; avoid side-loading small drills.
- Use rotary drilling only—do not use hammer/impact with taper-mounted tooling.
- Wear eye protection and secure the workpiece.
