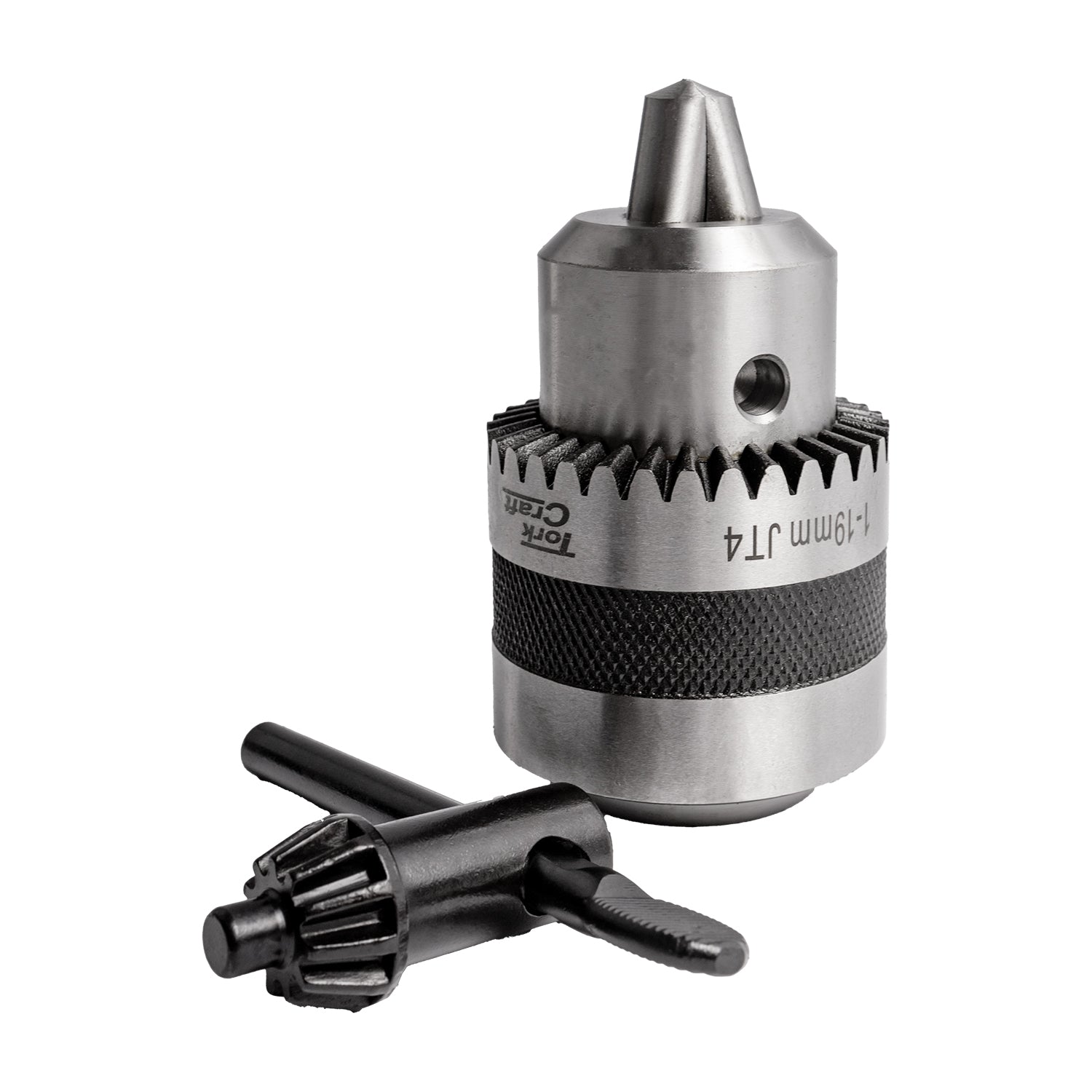

CHUCK & KEY 1.0 - 19.0 JT4 TAPER MOUNT.
Features
- Capacity: accepts bits from 1.0 mm to 19.0 mm.
- JT4 taper mount — fits standard tapered arbors or spindle adapters.
- Keyed tightening system ensures strong clamping torque for heavy drilling.
- Precision machined jaws for accurate bit centering and reduced run-out.
- Hardened, all-metal construction provides durability and long service life.
- Supplied with chuck key for quick tightening and release.
Benefits
- High torque grip: secure hold even on larger drill bits.
- Accurate concentricity: reduces vibration and enhances drilling precision.
- Universal taper fit: compatible with standard JT4 arbors on bench or pedestal drills.
Extra Information
- Ideal for bench drills, pedestal drills, and machine tools requiring JT4 taper fitting.
- Clean and lightly oil the taper shank before installing to ensure a tight fit.
- Remove chuck using an approved drift key or taper wedge when needed.
Pro Tip
- Before seating the chuck on the taper, ensure both the arbor and chuck socket are clean, oil-free and burr-free for maximum holding strength.
- If chuck removal becomes difficult, use taper drift wedges of the correct size instead of hammering or prying.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | CM19 |
| Product Type | Keyed drill chuck with taper mount |
| Chuck Capacity | 1.0–19.0 mm |
| Mount Type | JT4 (Jacobs Taper 4) |
| Construction | All-metal body, hardened jaws |
| Included | Chuck and chuck key |
| Typical Uses | Heavy-duty drilling in wood, metal and plastics |
Safety
- Always disconnect power before changing or removing the chuck.
- Ensure the taper is properly seated; avoid side loading during drilling.
- Do not use with impact or hammer functions.
- Wear eye and hand protection when operating machinery.
