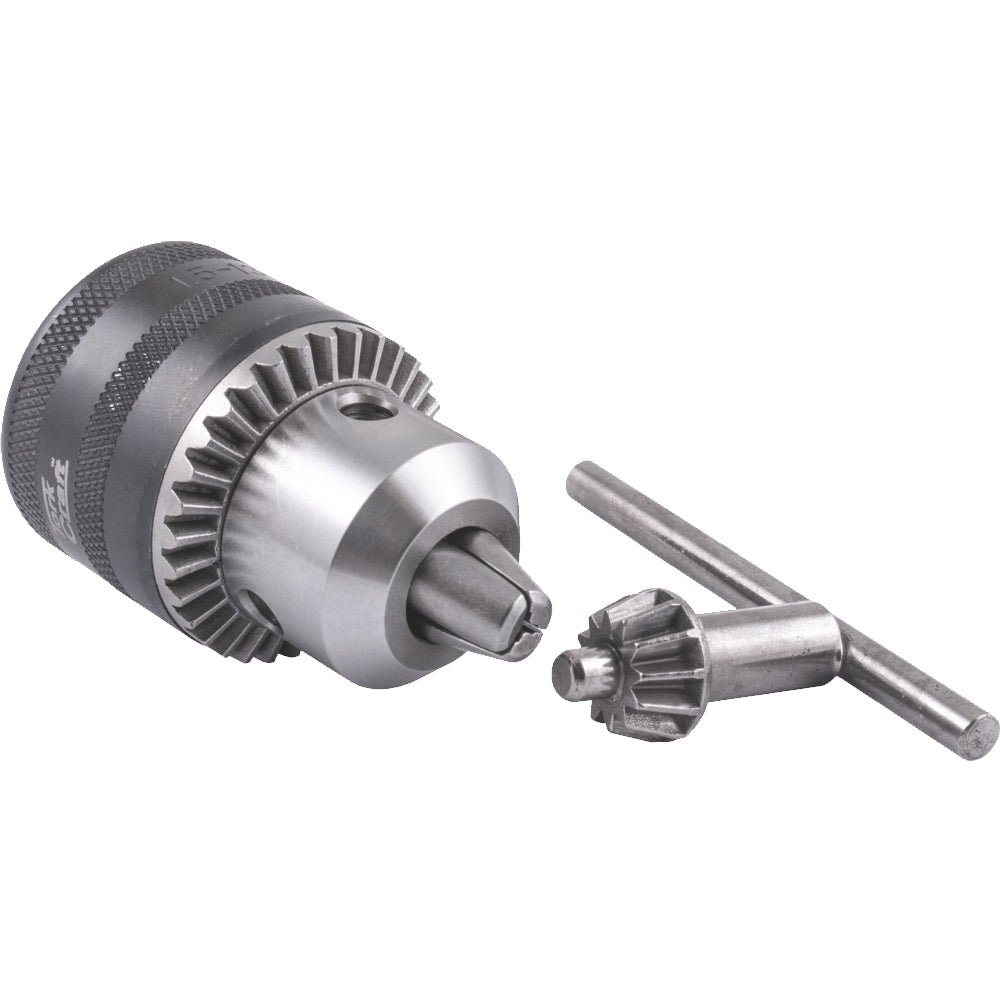

Drill Chuck with Key
Chuck Capacity: 1.5mm - 13mm
Mount thread size: 1/2"x 20UNF (F)
A drill chuck with key is a device used to secure drill bits into power drills and other rotary tools. It features three jaws that grip the drill bit shank when tightened with a separate key. The key is inserted into a slot on the chuck and rotated to expand or contract the jaws, allowing for secure clamping of the drill bit.
Application:
- Drilling into materials such as wood, steel, plastics and masonry/bricks.
- Construction
- Industrial
- DIY
Features:
- 3 Jaw design to reduce accessory slippage.
- Heavy duty and all metal durable construction.
- Precision machined components for increased accuracy.
| Description | Specification |
| Packaging Type | Hanging Plastic Box |
| Material | Metal construction Black anodized finish |
| Package Dimensions | 131(L) x 49(H) x 77mm(W) |
| Package Weight | 384.43g |
| Chuck Dimensions | 71.34(L) x Ø42.97mm |
| Chuck Weight | 285.61g |
| Chuck Capacity | 1.5mm to 13mm |
| Mount thread size | 1/2"x 20UNF (F) |
| Closed overall length | 71mm |
| Open overall length | 59mm |
| Sleeve diameter | 43mm |
| Chuck key type | T-handle |
| Recommended tool | Compatible pneumatic drills Corded & cordless impact drills |
| Content | 1 x 13mm Keyed Chuck 1 x Chuck key (T-Handle) |
