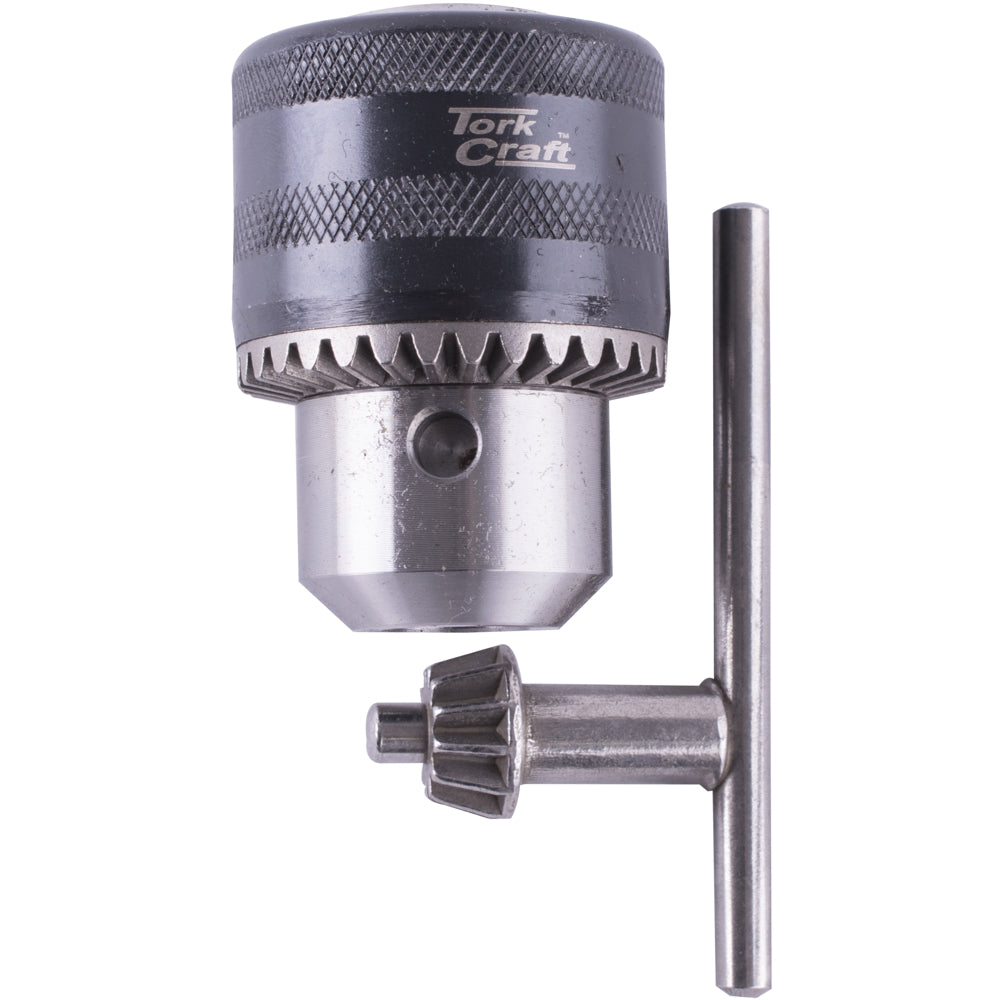

Drill Chuck with Key
Chuck Capacity: 1.5mm to 13mm
A drill chuck with key is a device used to secure drill bits into power drills and other rotary tools. It features three jaws that grip the drill bit shank when tightened with a separate key. The key is inserted into a slot on the chuck and rotated to expand or contract the jaws, allowing for secure clamping of the drill bit.
Application:
- Drilling into materials such as wood, steel, plastics and masonry/bricks.
- Construction
- Industrial
- DIY
Features:
- 3 Jaw design to reduce accessory slippage.
- Heavy duty and all metal durable construction.
- Precision machined components for increased accuracy.
| Description | Specification |
| Packaging Type | Hanging Double Blister |
| Material | Metal construction Black anodized finish |
| Package Dimensions | 197(L) x 43(H) x 112mm(W) |
| Package Weight | 344.69g |
| Chuck Dimensions | 71.77(L) x Ø41.98mm |
| Chuck Weight | 285.51g |
| Chuck Capacity | 1.5mm to 13mm |
| Mount thread size | 1/2" x 20UNF (F) |
| Closed overall length | 72mm |
| Open overall length | 57mm |
| Sleeve diameter | 42mm |
| Chuck key type | T-handle |
| Recommended tool | Compatible pneumatic drills Corded & cordless impact drills |
| Content | 1 x 13mm Keyed Chuck 1 x Chuck key (T-Handle) |
