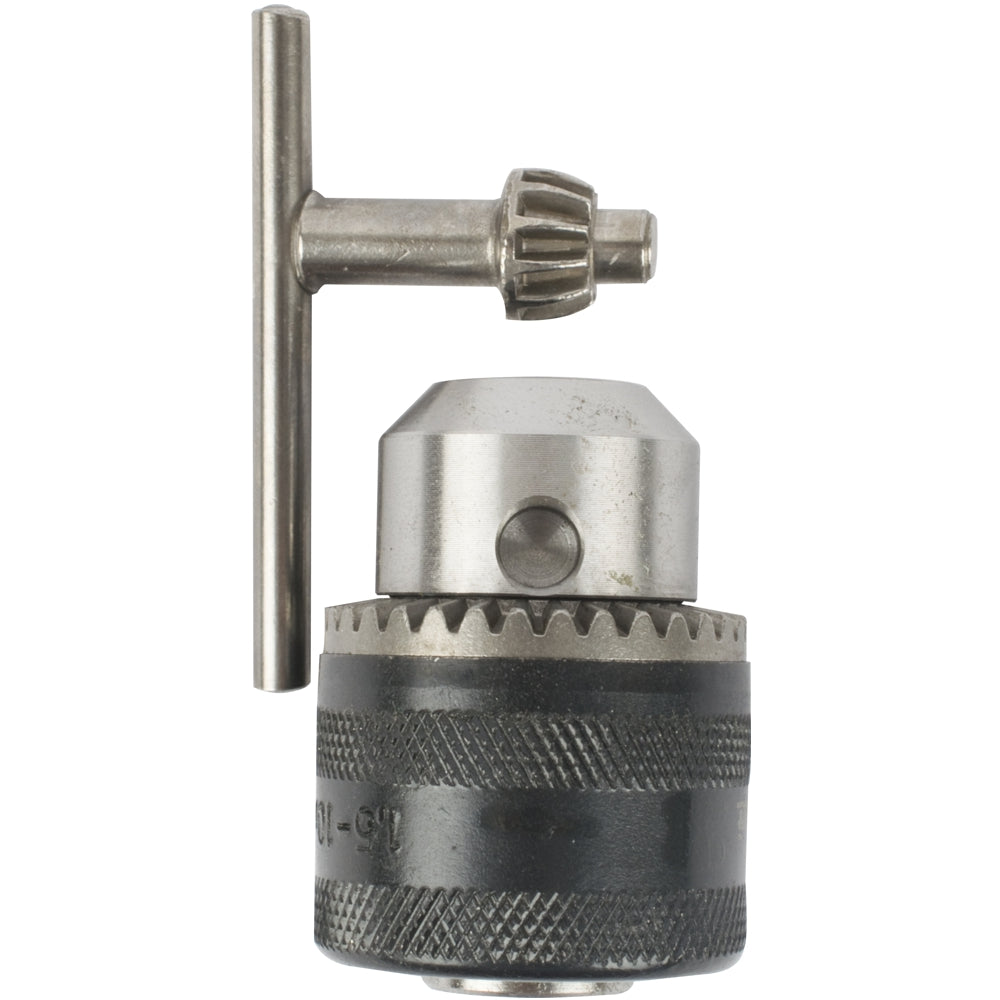

Drill Chuck with Key
Chuck Capacity: 1 - 10mm
A drill chuck with key is a device used to secure drill bits into power drills and other rotary tools. It features three jaws that grip the drill bit shank when tightened with a separate key. The key is inserted into a slot on the chuck and rotated to expand or contract the jaws, allowing for secure clamping of the drill bit.
Application:
- Drilling into materials such as wood, steel, plastics and masonry/bricks.
- Construction
- Industrial
- DIY
Features:
- 3 Jaw design to reduce accessory slippage.
- Heavy duty and all metal durable construction.
- Precision machined components for increased accuracy.
| Description | Specification |
| Packaging Type | Hanging Double Blister |
| Material | All metal construction Black anodized finish |
| Package Dimensions | 90(L) x 26(H) x 148mm(W) |
| Package Weight | 160g |
| Tool Dimensions | 85.3mm(L) x Ø35.9mm |
| Tool Weight | 157g |
| Chuck capacity | 1 to 10mm |
| Mount thread size | 3/8" x 24UNF (F) |
| Closed overall length | 58mm |
| Open overall length | 48mm |
| Sleeve diameter | 42mm |
| Chuck key type | T-handle |
| Recommended tool | Compatible pneumatic drills Corded & cordless impact drills |
| Content | 1 x 10mm Chuck 1 x Chuck Key (T-Handle) |
