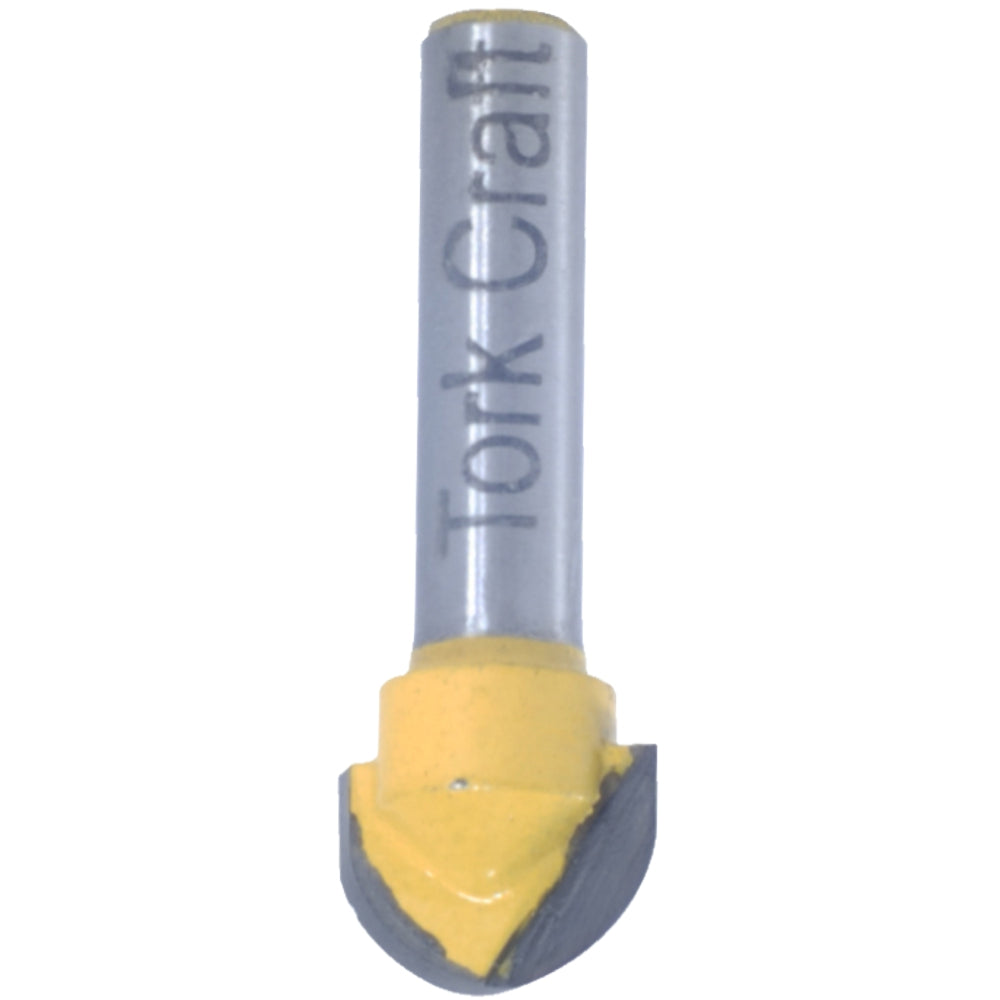

ROUTER BIT CORE BOX 1/2'
Features
- Core box (round-nose) profile for semicircular grooves and flutes.
- ½″ (12.7 mm) cutting diameter — creates pronounced, wide channels.
- Precision-ground cutting edges for smooth surfaces and reduced fuzzing.
- Balanced, rigid body helps minimise vibration and chatter.
- Router-collet compatible — match shank to the correct collet size.
Benefits
- Clean round bottoms: less post-routing cleanup versus straight bits.
- Consistent results: accurate tracking with fences, jigs or templates.
- Versatile: ideal for furniture accents, signage and architectural fluting.
Extra Information
- Reach depth via multiple shallow passes; clear chips between passes.
- Use a straightedge, fence or template for straight, repeatable runs.
- Match RPM & feed to material; slow slightly for dense hardwoods to avoid burning.
Pro Tip
- For evenly spaced flutes on stiles or legs, use a fence with stop blocks and make a light final pass to polish the groove.
- On veneered panels, score the path or take a skim pass first to prevent lifting at the edges.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Weight | 33.99g |
| Tool Dimensions | 43.55(L) x Ø12.7mm |
| Tool Weight | 13.50g |
| Cutting Diameter | 1/2" |
| Cutting Depth | 3/8" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Radius | 1/4" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Core Box Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 462g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 5.38kg |
| Qty (box/pack) | 100 |
