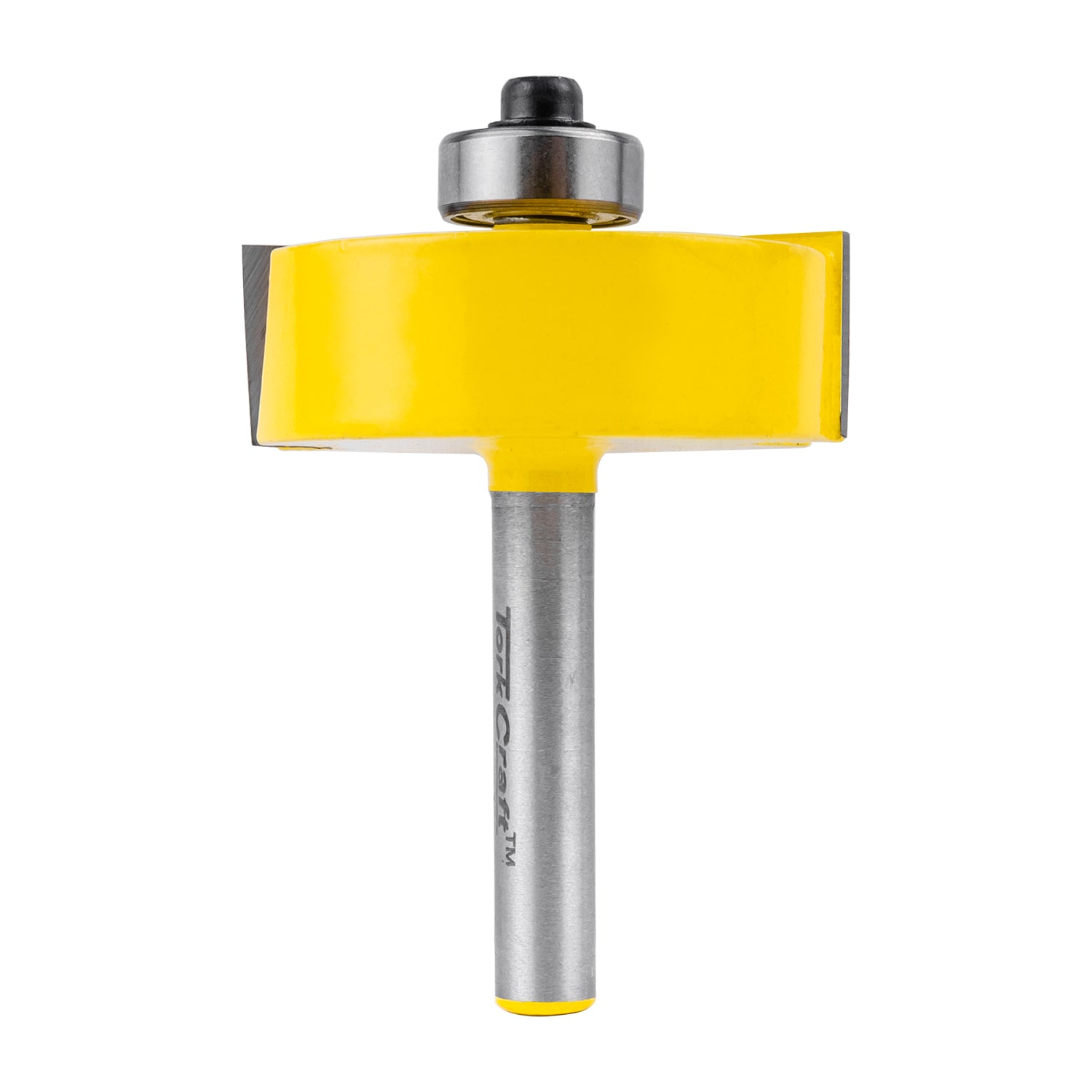

ROUTER BIT RABBETING 1/2'
Features
- ½″ (12.7 mm) cut width for common rabbet dimensions.
- Guided cutting (bearing/depth guide) maintains consistent shoulder width.
- Precision-ground edges deliver smooth cuts with minimal tear-out.
- Rigid body reduces vibration for better surface finish.
- Standard router-collet shank for secure, accurate operation.
Benefits
- Tight, square joints: flat bottoms and crisp shoulders.
- Faster production: consistent rabbets for cabinetry and frames.
- Versatile: use for back-panel seats, glass stops, and edge reductions.
Extra Information
- Make multiple shallow passes to reach full depth without chatter.
- Confirm bearing/depth guide alignment before cutting to keep shoulders even.
- Clear chips frequently to prevent heat build-up and burning.
Pro Tip
- On veneered panels, score the cut line with a knife before routing to avoid chipping at the shoulder.
- Use a fence or straightedge for long runs to keep the rabbet perfectly parallel to the edge.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 56(H)mm |
| Package Weight | 115.95g |
| Tool Dimensions | 57.60(L) x Ø12.7mm |
| Tool Weight | 94.87g |
| Cutting Diameter | 1-1/2" |
| Cutting Depth | 1/2" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Bearing | 1/2" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Rabbeting Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 168(W) x 73(H)mm |
| Weight (box/pack) | 1.30kg |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 360(W) x 380(H)mm |
| Weight (box/pack) | 13.77kg |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing and dust protection.
- Feed against bit rotation to maintain control and prevent kickback.
- Let the router reach full speed before engaging; stop fully before lifting out.
- Inspect bit and collet regularly; replace if dull or damaged.
