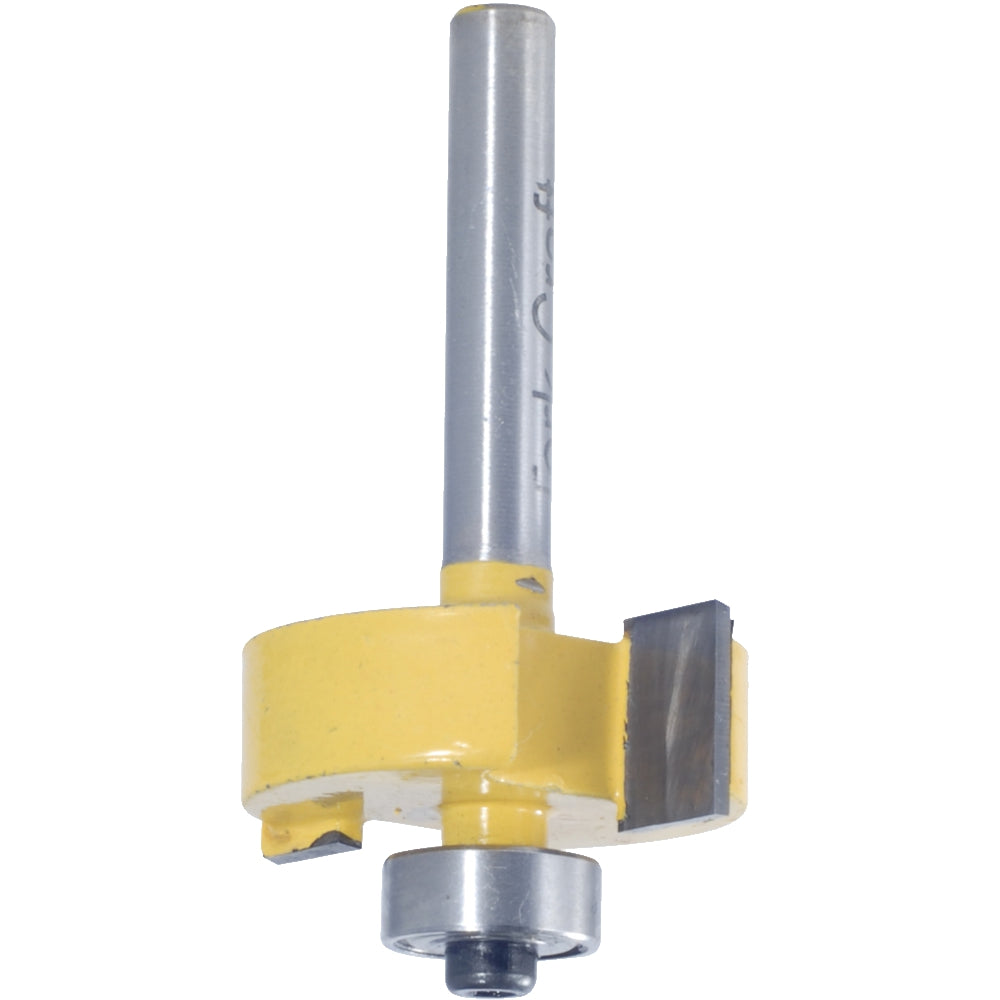

ROUTER BIT RABBETING 3/8'
Features
- ⅜″ (≈ 9.53 mm) cutting width for standard rabbet depths.
- Shoulder cutter: includes bearing or depth guide for clean, square shoulders.
- Precision-ground edges: for sharp, clean cuts and minimal tear-out.
- Rigid body design: reduces vibration for smooth results.
- Collet-compatible shank: fits standard router collets securely.
Benefits
- Clean joints: produces flat bottoms and crisp shoulders for tight fits.
- Fast work: efficient cutting of rabbets for frame and joinery work.
- Compatibility: useful in cabinets, trim, woodworking joinery and panel edge trimming.
Extra Information
- Make multiple shallow passes rather than deep cuts to avoid burning and chatter.
- Ensure depth gauge or bearing is properly fitted and aligned to avoid overcutting shoulders.
- Check bit is fully seated and collet is tightened before use.
- Clean the bit after use to remove resin or chips for consistent performance.
Pro Tip
- Use a fence or straightedge to guide the rabbet cut and maintain consistent shoulder width.
- When working with veneered or laminated stock, score the edge first with a knife to prevent tear-out at the shoulder.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 56(H)mm |
| Package Weight | 64.21g |
| Tool Dimensions | 53.37(L) x Ø9.5mm |
| Tool Weight | 45.15g |
| Cutting Diameter | 1-1/4" |
| Cutting Depth | 3/8" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Bearing | 1/2" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Rabbeting Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 168(W) x 73(H)mm |
| Weight (box/pack) | 786g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 360(W) x 380(H)mm |
| Weight (box/pack) | 8.61kg |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing, and dust protection.
- Feed against bit rotation to ensure control and avoid kickback.
- Allow the router to reach full speed before contacting work; stop fully before removing.
- Inspect bit and collet before each use; replace if damaged or dull.
