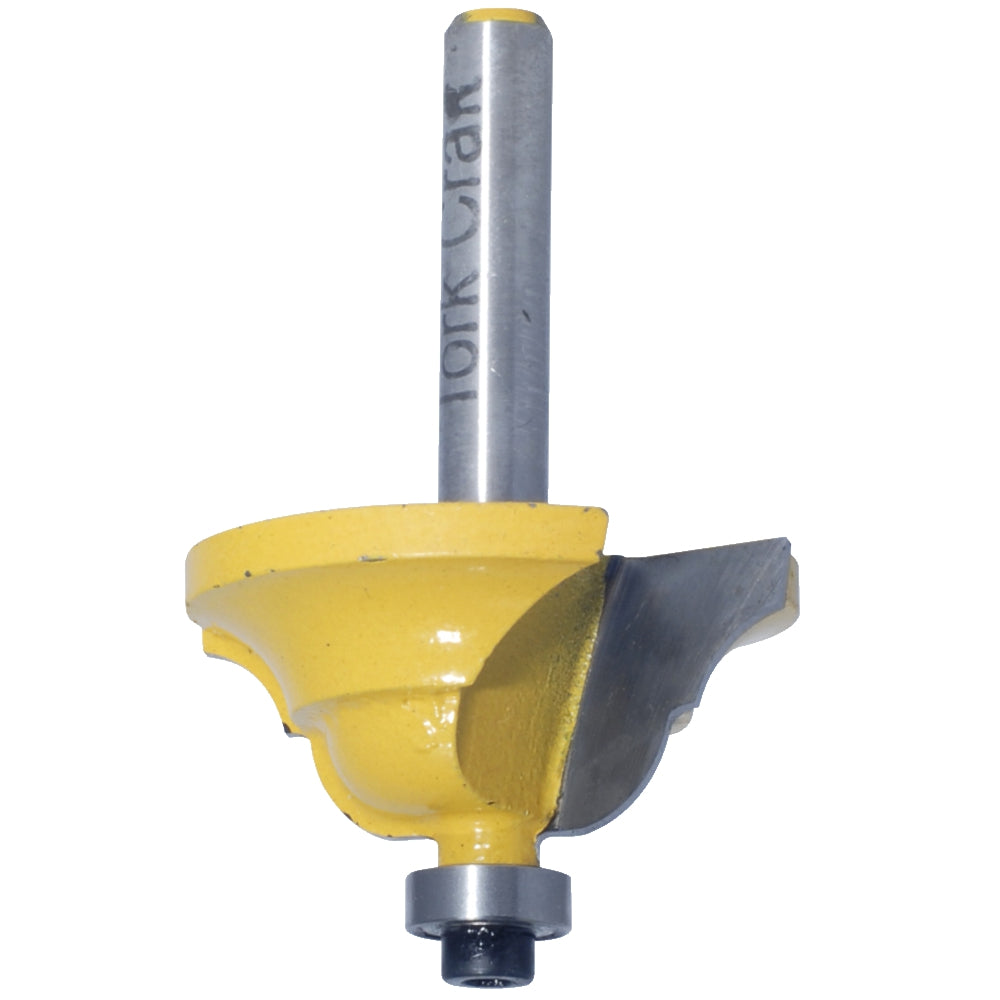

ROUTER BIT CLASSICAL LARGE
Features
- Large classical/ogee profile for statement edges and trim.
- Precision-ground cutting edges help deliver smooth, tear-out-resistant cuts.
- Balanced body to reduce vibration and improve surface finish.
- Guide-friendly — run against a fence or bearing (if equipped) for repeatable results.
- Works on hardwoods, softwoods, MDF and plywood.
Benefits
- Elegant detailing: crisp curves and fillets elevate furniture and cabinetry.
- Consistent profiles: accurate geometry for batch work.
- Reduced sanding: clean cut quality minimizes post-routing cleanup.
Extra Information
- Ideal for doors, tabletops, shelves, picture frames and skirting/architraves.
- Make multiple shallow passes to reach full depth—large profiles remove a lot of material.
- Back-route end grain first, then run the long grain to clean up any corner blow-out.
Pro Tip
- Small height adjustments (1–2 mm) dramatically change the look—test on scrap to position the fillet exactly where you want it.
- Use a featherboard and outfeed support on the router table to keep the cut steady on long workpieces.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 97.26g |
| Tool Dimensions | 59.04(L) x Ø38mm |
| Tool Weight | 76.24g |
| Cutting Diameter | 1-1/2" |
| Cutting Depth | 3/4" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Radius | 1/4" |
| Bearing | 3/8" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Rabbeting Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 168(W) x 73(H)mm |
| Weight (box/pack) | 1.09kg |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 360(W) x 380(H)mm |
| Weight (box/pack) | 11.53kg |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing and dust protection; use dust extraction where possible.
- Use a router table with fence/featherboards for better control on large profiles.
- Feed against rotation and take light passes—do not attempt full depth in one cut.
- Allow the router to reach full speed before engaging; stop fully before lifting out.
