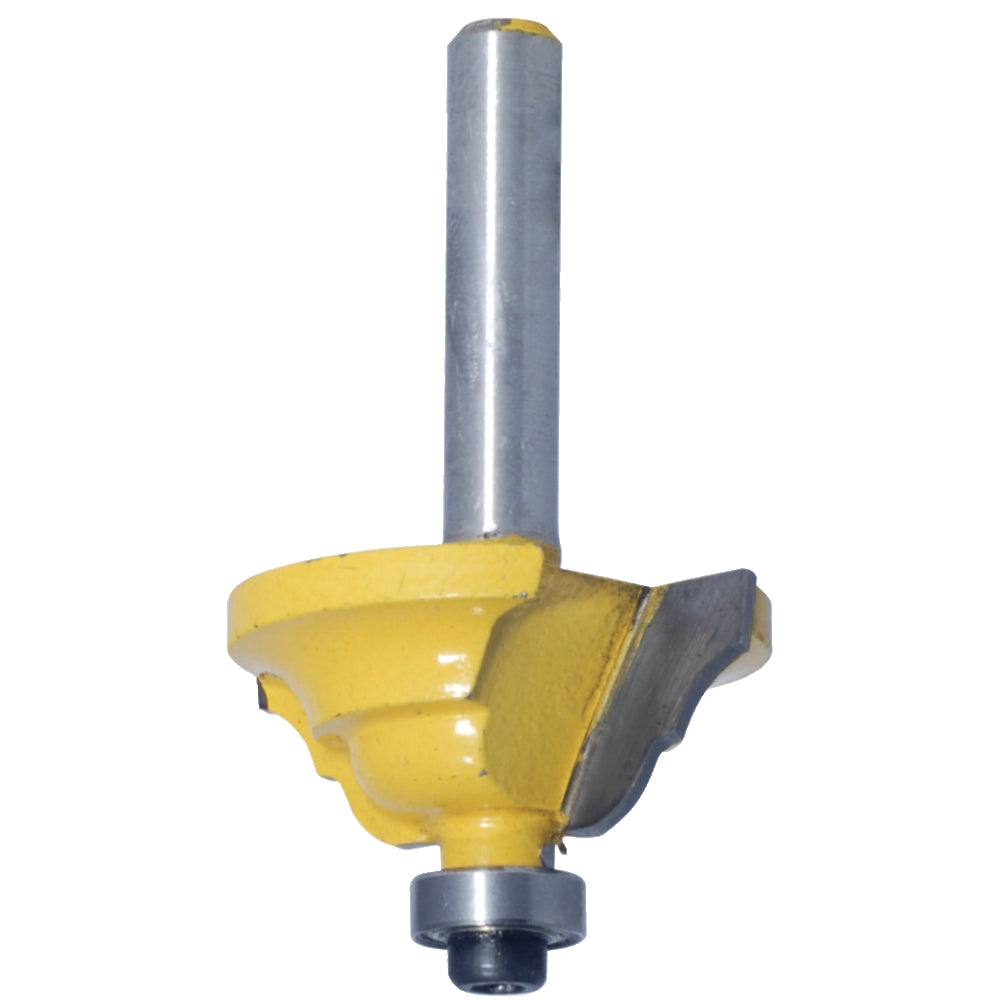

ROUTER BIT CLASSICAL SMALL
Features
- Classical ogee profile with refined radii for elegant edge treatments.
- Precision-ground cutting edges for smooth, tear-out-resistant cuts.
- Balanced body helps reduce vibration for cleaner results.
- Template/guide friendly — run with a fence, bearing or table fence as appropriate.
- Works on hardwood, softwood, MDF and plywood.
Benefits
- Professional finish: leaves crisp details that sand quickly.
- Versatile scale: “small” cut suits thinner stock and fine furniture parts.
- Consistent results: reliable geometry for repeatable profiles across batches.
Extra Information
- Ideal for cabinet doors, drawer fronts, frames, shelves and trim.
- Best run on a router table for accuracy; use multiple shallow passes.
- For end-grain edges, make a light cleanup pass after long-grain passes to remove blowout.
Pro Tip
- Set bit height so the fillet lands where you want it; a 1–2 mm tweak dramatically changes the look.
- Do a test cut on scrap from the same material and thickness to dial in fence and height before running finished parts.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 68.25g |
| Tool Dimensions | 55.83(L) x Ø31.7mm |
| Tool Weight | 48.82g |
| Cutting Diameter | 1-1/4" |
| Cutting Depth | 5/8" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Radius | 3/16" |
| Bearing | 3/8" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Rabbeting Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 168(W) x 73(H)mm |
| Weight (box/pack) | 841g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 360(W) x 380(H)mm |
| Weight (box/pack) | 9.12kg |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing and dust protection; use dust extraction where possible.
- Secure the workpiece; feed against rotation to maintain control.
- Take multiple shallow passes—avoid full-depth cuts in a single pass.
- Let the router reach full speed before engaging; stop fully before lifting out.
