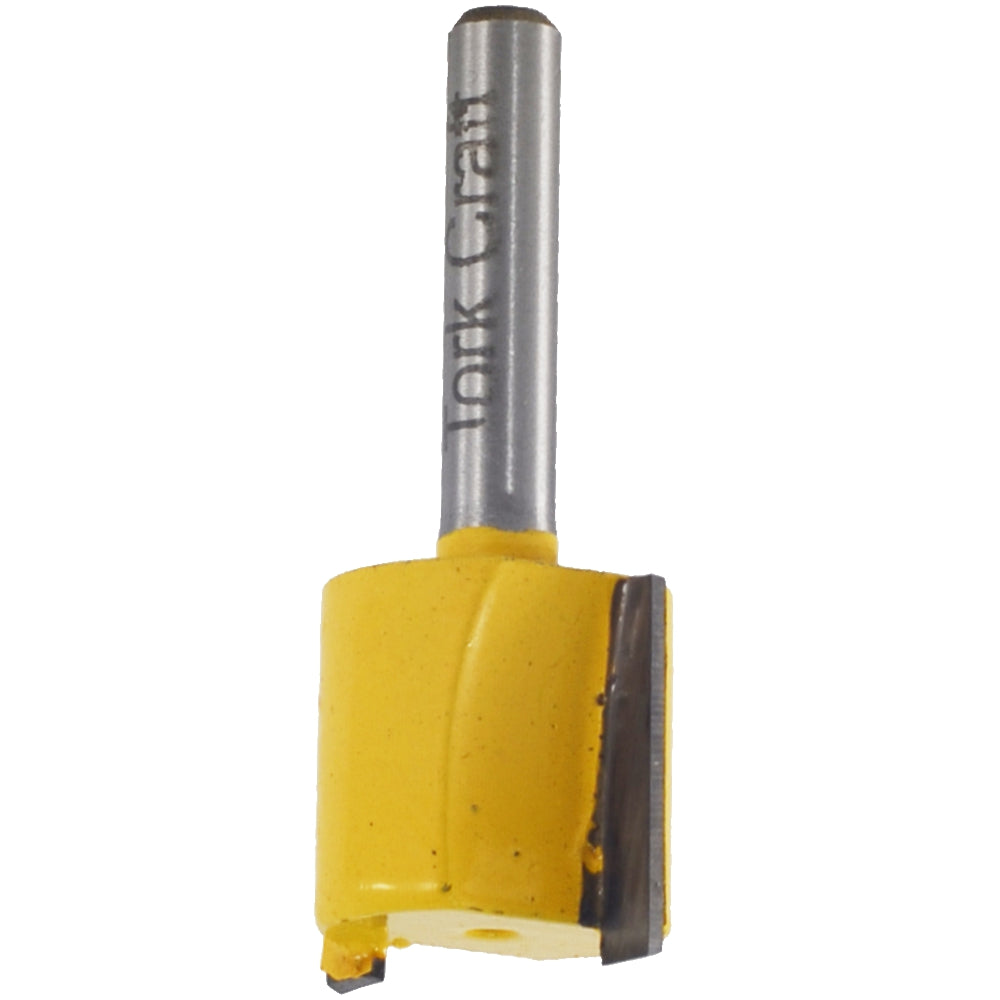

ROUTER BIT STRAIGHT 7/8' (22.22MM)
Features
- ⅞″ (22.22 mm) cutting diameter — perfect for wide grooves and clearance routing.
- Straight cutting edges produce clean, square-walled cuts with flat bottoms.
- Carbide-tipped edges ensure long life and consistent sharpness.
- Balanced, rigid body for low vibration and smooth performance.
- Router-collet compatible — fits securely for accurate control.
Benefits
- High efficiency: removes material quickly while maintaining cut precision.
- Clean finish: delivers smooth, flat bottoms and crisp shoulders.
- Versatile use: ideal for joinery, dado work, mortising, and panel recessing.
Extra Information
- For deep grooves, make several shallow passes to reduce stress on the router and bit.
- Match speed and feed rate to the material’s hardness for best results.
- Ensure the bit is correctly seated and securely clamped in the collet.
- Use dust extraction and proper lighting for clean, accurate work.
Pro Tip
- When routing across veneer or laminated surfaces, make a light scoring pass first to protect the top layer before full-depth cuts.
- Use a straightedge guide or fence to keep long grooves true and consistent across panels.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 64.54g |
| Tool Dimensions | 56.36(L) x Ø22.22mm |
| Tool Weight | 43.15g |
| Cutting Diameter | 7/8" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Qty (box/pack) | 100 |
Safety
- Always wear eye, hearing and dust protection when routing.
- Feed against the rotation of the bit to maintain control and prevent kickback.
- Allow the router to reach full speed before engaging; stop fully before lifting out.
- Inspect the bit before each use; replace if dull, damaged, or chipped.
